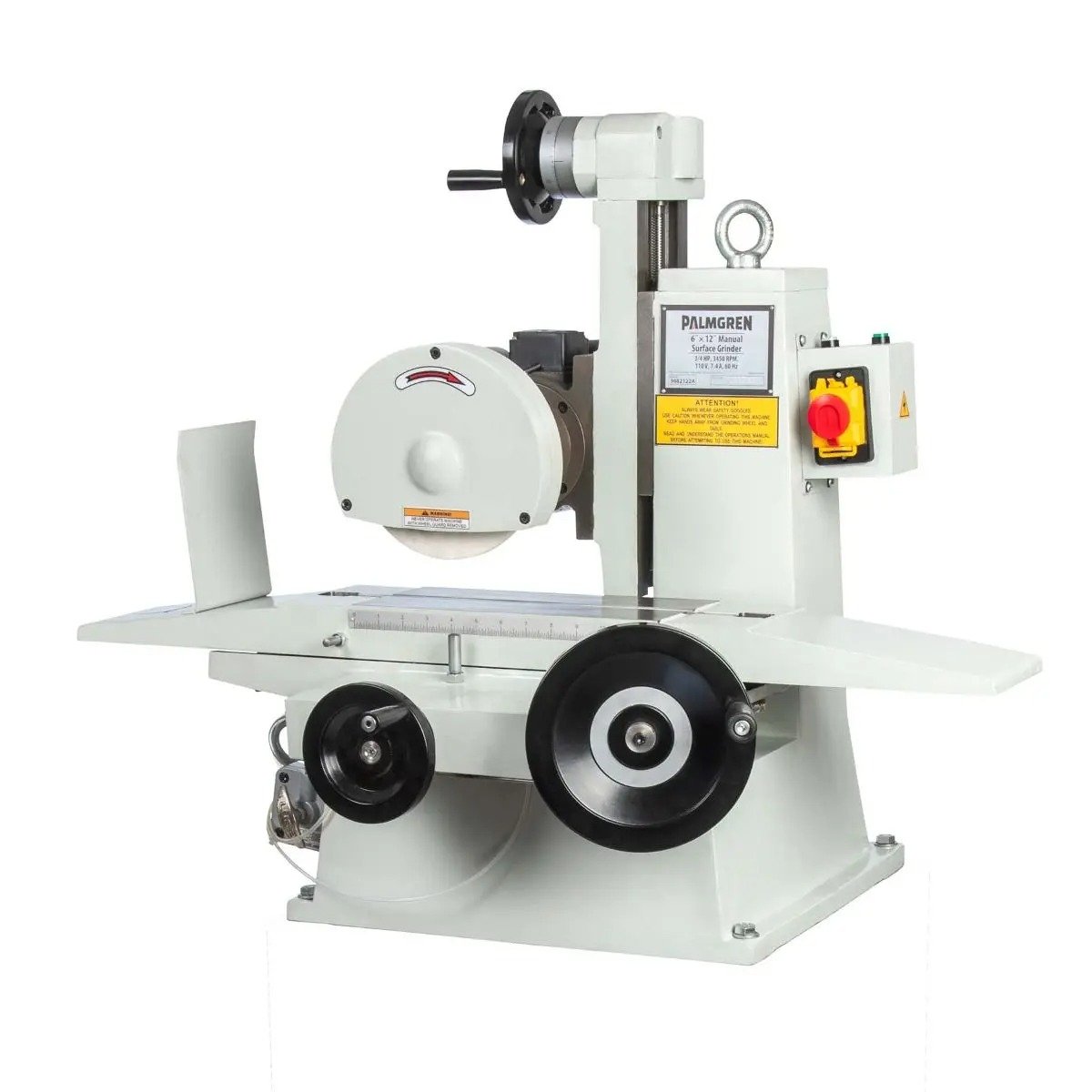

Palmgren 6” x 12” Bench Surface Grinder 9682122

Palmgren 6” x 12” Bench Surface Grinder 9682122 is a Palmgren product in the Grinding & Sanding collection.

Product Details

• Motor: ¾ HP Single Phase
• RPM: 3600
• Table Size: 6" x 12"
• Wheel Size (Dia x W x Bore): 7" x 1/2" x 1-1/4"
• Description
• This economical 6” x 12” manual surface grinder has many features found on larger units and is a perfect choice for small shops, tool rooms and maintenance shops when close tolerances are needed. Bring mirror-like finishes to your metalworking projects with this professional grinder.
• Features
• Meehanite cast iron construction- stress relieved to minimize vibration while maintaining rigidity and accuracy
• Rack and pinion mechanism with dove tail ways
• Hand scraped ways
• Spindle and motor are a direct drive design and are dynamically balanced minimum vibration
• Swarf guard

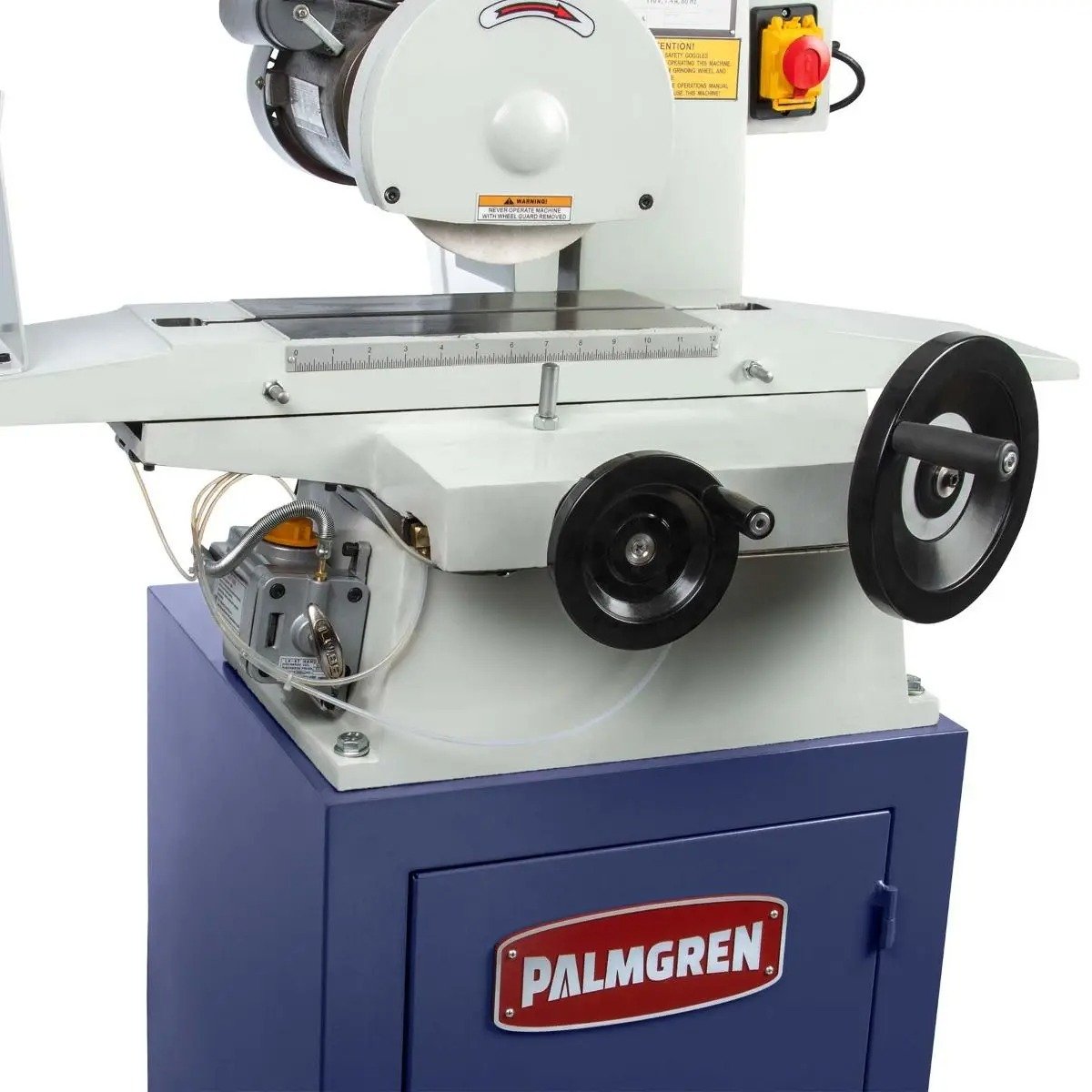

• Large easy to read dials
• Spiral bevel gear for easy vertical movement of the spindle head
• Steel Floor Stand Included
• Specifications
• Abrasive Finishing Type: Bench Grinders and Buffers
• Bench Grinder and Buffer Drive: Single Speed
• Country of Origin: CN
• Cross Feed Motor: 0.001"
• Max. Grinding Length: 12-1/2"
• Max. Grinding Width: 6-11/16"
• Motor HP: 3/4
• Phase: Single
• Table Dimensions: 6" x 12"
• T-Slot Size/Distance/Quantity: 1/2"
• Vertical Feed Graduation: 0.0005"
• Voltage: 115
• Table to Center of Spindle: 11
• UPC: 726896821221
• Product Height (in): 38.38
• Product Weight (lbs): 710
• Optional Accessories
• Item # 9682130 Permanent magnetic chuck

Specifications

• Manufacturer: Palmgren
• SKU: 9682122
• UPC: 726896821221
• Shipping Method: LTL Freight
• Weight: 710 lb
• Dimensions: 41 × 28.75 × 39 in
• Country of Origin: China
• Warranty: 3 Years (Parts)
