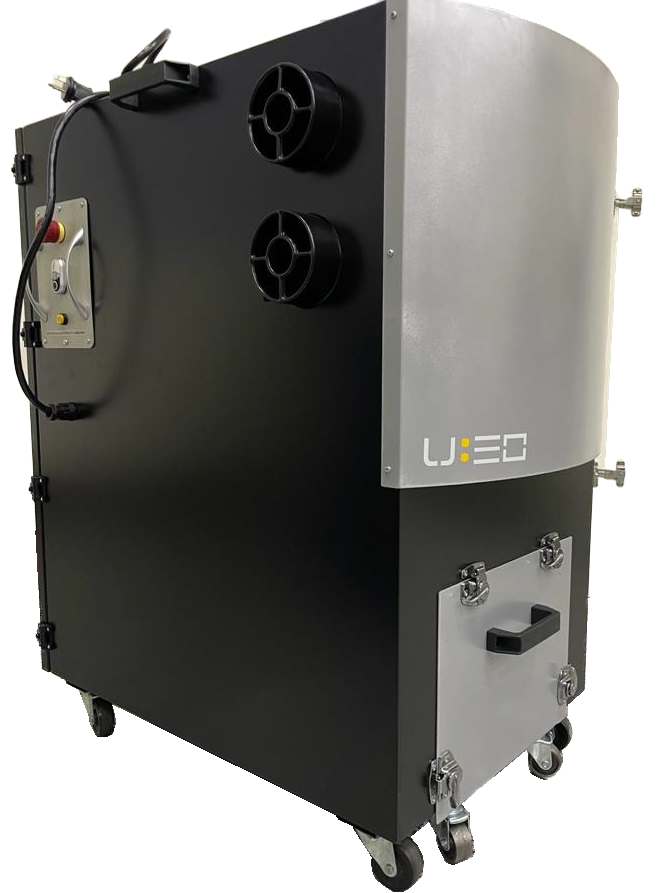

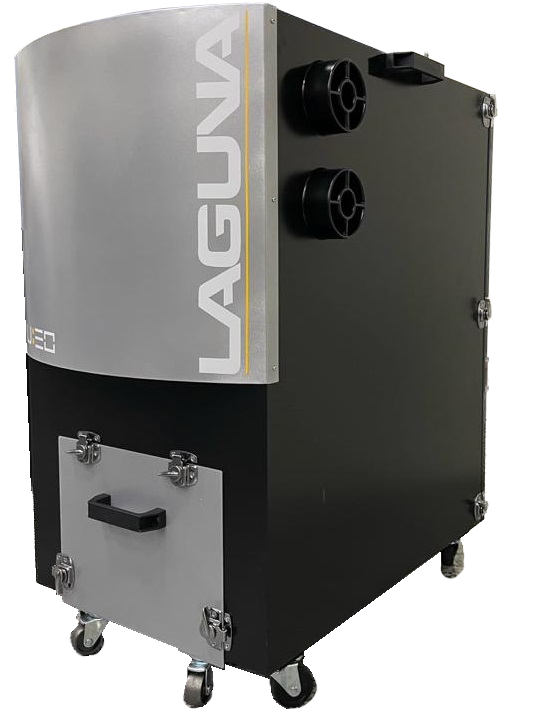

Laguna Tools U|30 220V Single Phase 957 CFM Metal Dust Collector with 5.6 Gallon Collection Drawer MDC503L2203

Laguna Tools U|30 220V Single Phase 957 CFM Metal Dust Collector with 5.6 Gallon Collection Drawer MDC503L2203 is a Laguna Tools product in the Grinding & Sanding collection.

Product Details

• Motor: 3 HP
• Motor speed: 3450 rpm
• Noise volume: 74 dB
• Impeller size: 12” diameter
• Description
• The Laguna Tools U|30 Metal Dust Collector offers industrial-level dust collection with its 3 HP motor, production up to 957 CFM of airflow. Four 4-inch inlets allow for easy connection for multiple machines, making it ideal for larger shops.
• Constructed with a steel body and durable drum, the U|30 is built for heavy use. The 5.6-gallon metal drawer collects debris efficiently, while the fire-resistant micro mesh filter traps fine dust for cleaner air. Despite its powerful performance, it operates at a quiet 74 dB and is easily movable thanks to built-in casters.
• Specifications
• Amps: 11 FLA
• Switch: magnetic
• Power cord: 6 ft
• Plug: no plug
• Inlet size: 4” x 4”
• Max air flow: 957 CFM
• Static pressure: 9.4” H2O
• Collection volume: 5.6 gallons
• Filter material: galvanized micromesh
• Filter size: 19.25” x 25” x 1.8”
• Construction: Steel cart-stainless drum
• Start capacitor: 600F/125V
• Run capacitor: 450F/350V
• Wheels: 2.5” machine / 2” drum
• Electrical Requirements: 220V Single Phase 60Hz
• Machine Dims: 35.4” x 24.6” x 40”
• Approx Weight: 231 lbs
• Optional Add-Ons
• D|Flux Remote Control
• Cyclones caster wheel (no brakes)
• Cyclones caster wheel with brake
• Drum bags
• Cabinet filter bags

Specifications

• Manufacturer: Laguna Tools
• SKU: MDC503L2203
• Shipping Method: LTL Freight
• Weight: 255 lb
• Dimensions: 35 × 26 × 42 in
• Country of Origin: Taiwan
