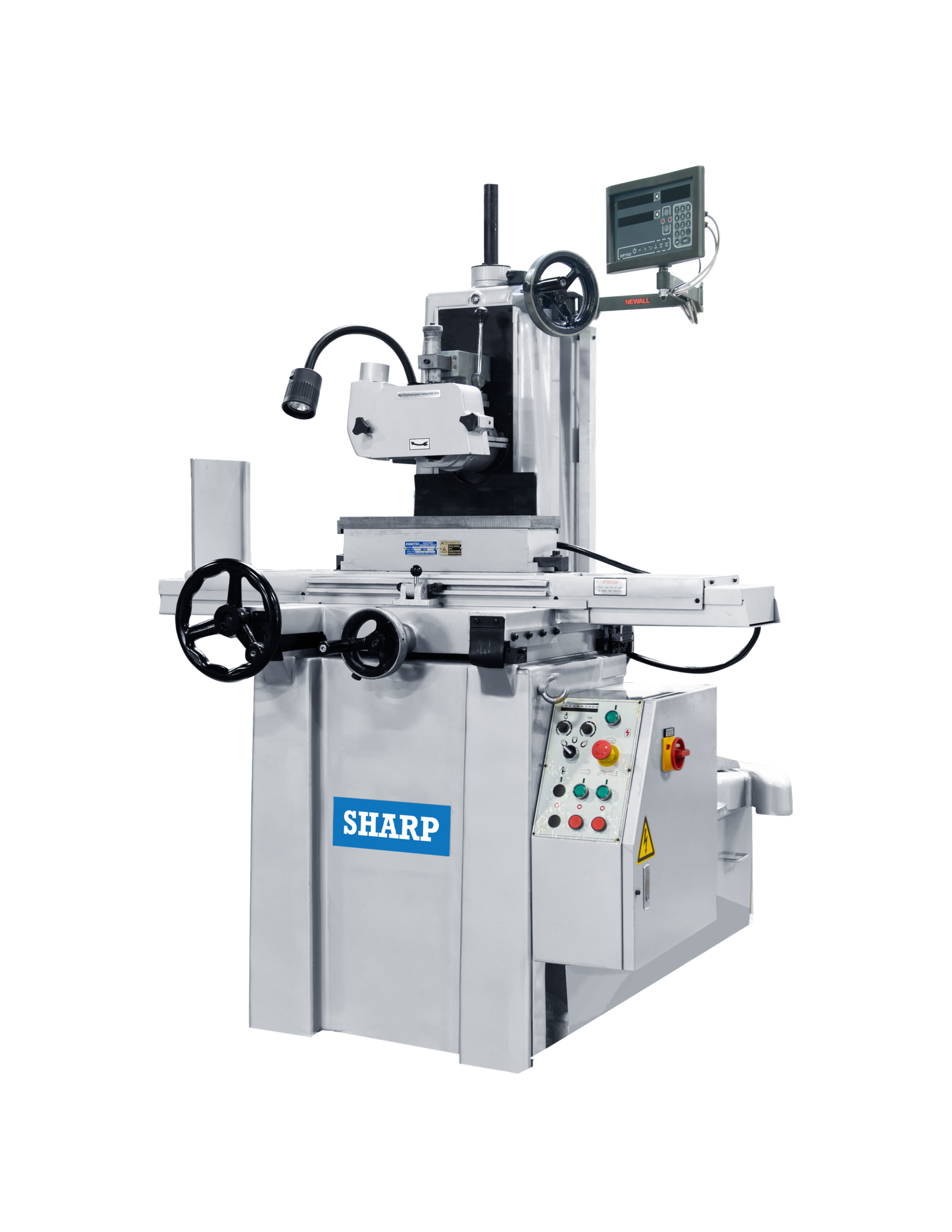

Sharp Industries 220V 6” x 18” Manual Surface Grinder SG618

Sharp Industries 220V 6” x 18” Manual Surface Grinder SG618 is a Sharp Industries product in the Grinding & Sanding collection.

Product Details

• Max Grinding Length: 18.5”
• Max Grinding Width: 6.3”
• Grinding wheel: 8" x 0.63" x 1.25"
• Motor: 220V, 2 HP
• Description
• This model has a wire rope type grinding table where the bottom of the table slide way travels along the top of the saddle way. Since both slide ways are in full contact along the entire travel distance, it gives adequate support to the grinding process. Unlike other models, where the table travels on ball bearing ways with only point to surface contact, this design lends to more accurate grinding process.
• Standard Features
• 2 HP motor
• TURCITE ways for oil retention
• Bed type construction
• Smooth wire-rope driven table
• Hardened and ground lead screw
• One “V”, one flat way longitudinal travel
• Double “V” way cross travel
• Both ways are hand scraped and covered w/ Turcite B coating
• Auto-lube system
• Wheel adapter/flange
• Wheel balancing arbor
• 6×18" kanetsu permanent magnetic chuck
• Work light
• Diamond dresser
• Tool kit
• Specifications
• Max Distance: Table to Spindle Center: 15.7”
• Table Size: 6” x 18.3”
• Longitudinal Travel: 18.9”
• Cross Travel: 7”
• Longitudinal Feed of Table: Hand Feed Per Revolution: 4.2”
• Hand Feed Per Revolution: 4.2”
• Cross Feed of Saddle: Hand Feed Per Revolution: 0.2” Hand Wheel Graduation: 0.001”
• Hand Feed Per Revolution: 0.2”
• Hand Wheel Graduation: 0.001”
• Vertical Feed of Wheel: Hand Feed Per Revolution: 0.05” Hand Wheel Graduation: 0.0001”
• Hand Feed Per Revolution: 0.05”
• Hand Wheel Graduation: 0.0001”
• Grinding Wheel Outside Diameter: 8”
• Wheel Bore: 1.25”
• Wheel Width: 0.63”
• Spindle Motor: 2 HP
• Power Consumption (220V): 1.5 KVA / 4 amps *440V Available Upon Request
• *440V Available Upon Request
• Floor Area (W x H x L): 55.1” x 39.4” x 70.9”
• Approximate Weight: 1,540 lbs
• Available Options & Accessories
• 440V Available
• Permanent magnetic chuck
• Electro magnetic chuck
• Parallel dresser
• Balance stand
• Extra wheel adapter (flange)
• Coolant system (12 gal) w/ splash guard-sg-004
• Splash guard for coolant
• Dust collector

Specifications

• Manufacturer: Sharp Industries
• SKU: SG618
• Shipping Method: LTL Freight
• Weight: 1,870 lb
• Dimensions: 58 × 45 × 77 in
• Country of Origin: Taiwan
• Warranty: 1 Year (Parts)
