Steelmax 115V Single Phase Variable Speed Magnetic Tapping & Drilling Machine SM-D-300-XT

Steelmax 115V Single Phase Variable Speed Magnetic Tapping & Drilling Machine SM-D-300-XT is a Steelmax product in the Magnetic Drills collection.

Product Details

• Motor Power: 1600 W
• Max Hole Size – Annular Cutter: 2¾”
• Max Drilling Capacity: 1”
• Max Depth of Cut: 2-15/16”
• Description
• The D300XT is a variable speed drilling machine designed to drill holes with diameters of up to 2¾” by using annular cutters. The machine can also drill holes with diameters of up to 1” by using twist drill bits. The D300XT can change the direction of rotation. This allows tapping of pre-drilled holes by using a tap chuck. The electromagnetic base clamps the machine to ferromagnetic surfaces, making sure that the operator is safe and the machine works correctly. A safety strap protects the machine from falling in case of a clamping loss.
• Features
• 360-degree visual monitoring system indicates current condition of the drill and gives safety and diagnostic information, e.g. worn brushes
• 1600 W motor
• Overload & Overheat protection
• Tapping of through and blind holes with intelligent load control
• Drilling with both TCT & HSS cutters and twist drill bits from small up to large diameters
• Full electronic motor control
• Electronic clutch (faster than mechanical)
• Rigid design extends tool life
• Innovative smart magnet with reduced weight

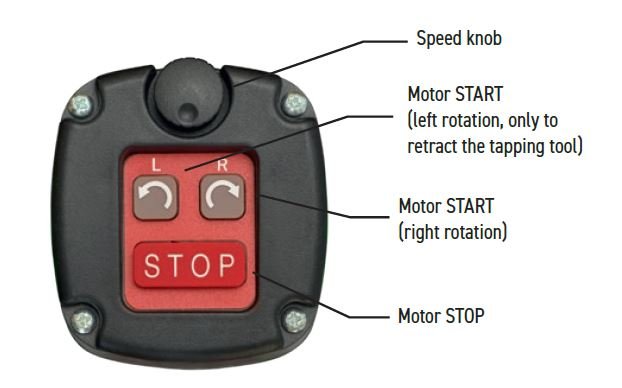

• Intuitive control panel at top of the drill
• Large coolant reservoir
• Specifications
• Motor Speeds (under load) Gear 1: 120-190 rpm Gear 2: 290-450 rpm
• Gear 1: 120-190 rpm
• Gear 2: 290-450 rpm
• Electrical Requirements: 115V / Single Phase / 50-60 Hz
• Max Tap Size: 7/8” (M20)
• Stroke: 7.5”
• Magnetic Clamping Force Surface with the thickness of 25mm and roughness Ra=1.25: 2472 lbs
• Surface with the thickness of 25mm and roughness Ra=1.25: 2472 lbs
• Magnet Base Dimensions: 3.6” x 7.1” x 2.1”
• Min Workplace Thickness: 0.3”
• Spindle: MT3
• Tool Holder: ¾” Weldon
• Weight: 40 lbs

Specifications

• Manufacturer: Steelmax
• SKU: SM-D-300-XT
• UPC: 848118005353
• Shipping Method: LTL Freight
• Weight: 56 lb
• Dimensions: 28 × 18 × 7 in
• Country of Origin: Poland
