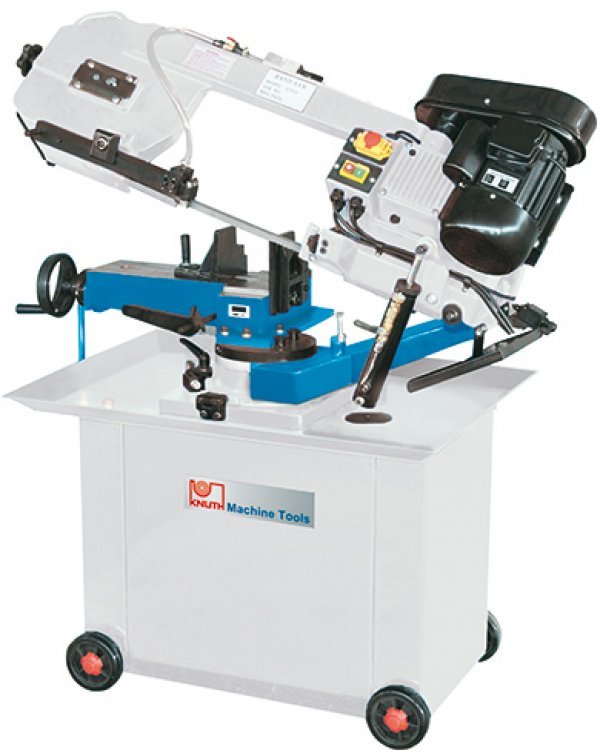

Knuth 1.5HP B 200 S Horizontal Miter Band Saw 102752

Knuth 1.5HP B 200 S Horizontal Miter Band Saw 102752 is a Knuth product in the Band Saws collection.

Product Details

• Motor rating main drive: 1.5HP
• Cutting capacity 45° (square): 5”
• Cutting capacity 45° (round): 5”
• Belt speed: 79 / 135 / 200 / 269 fpm
• Description
• The band saw of the B S series is the entry-level model of the classic horizontal band saws and ideal for workshops and one-off production. Thanks to the swiveling saw frame, the machine can make miter cuts of up to 45 degrees. The saw frame feed is infinitely variable via a hydraulic valve and can also be readjusted during processing. The compact band saw has a low maintenance and robust drive via V-belt and is equipped with a quick-release device and a coolant device.
• Features

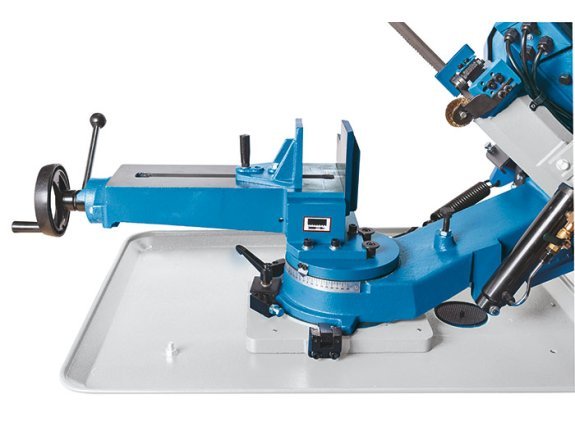

• Saw frame swivels – allowing angular cuts to 45°
• Coolant system is included
• Thin saw blade for reduced material removal
• Exact cuts – rigid construction prevents belt track deviations
• Quiet, low-vibration operation
• A hydraulic cylinder controls the support pressure infinitely from 0 to maximum pressure
• One-piece cast-iron saw frame
• Compact design
• Specifications
• Cutting Capacities Cutting capacity 0° (round): 8” Cutting capacity 0° (square): 8” Cutting capacity 0° (flat) (LxW): 8” x 8” Cutting capacity 45° (square): 5” Cutting capacity 45° (round): 5” Cutting capacity 45° (flat) (LxW): 8” x 5” Belt speed: 79 / 135 / 200 / 269 fpm
• Cutting capacity 0° (round): 8”
• Cutting capacity 0° (square): 8”
• Cutting capacity 0° (flat) (LxW): 8” x 8”
• Cutting capacity 45° (flat) (LxW): 8” x 5”
• Drive Capacity Motor rating main drive: 1.5HP
• Measures and Weights Blade dimensions: 92.91” x 0.79” x 0.04” Overall Dimensions (LxWxH): 49” x 26” x 52” Weight: 418 lbs
• Blade dimensions: 92.91” x 0.79” x 0.04”
• Overall Dimensions (LxWxH): 49” x 26” x 52”
• Weight: 418 lbs
• Optional Accessories
• 119774 – Bi-metal band saw blade, 93×0.787×0.035”, 5/8 teeth
• 119775 – Bi-metal band saw blade, 93×0.787×0.035”, 10/14 teeth
• 119150 – Bi-metal band saw blade, 93×0.787×0.035”, 4/6 teeth
• 103184 – Coolant concentrate 5 ltr

Specifications

• Manufacturer: Knuth
• SKU: 102752
• Shipping Method: LTL Freight
• Weight: 418 lb
• Dimensions: 49 × 26 × 52 in
• Country of Origin: Germany
