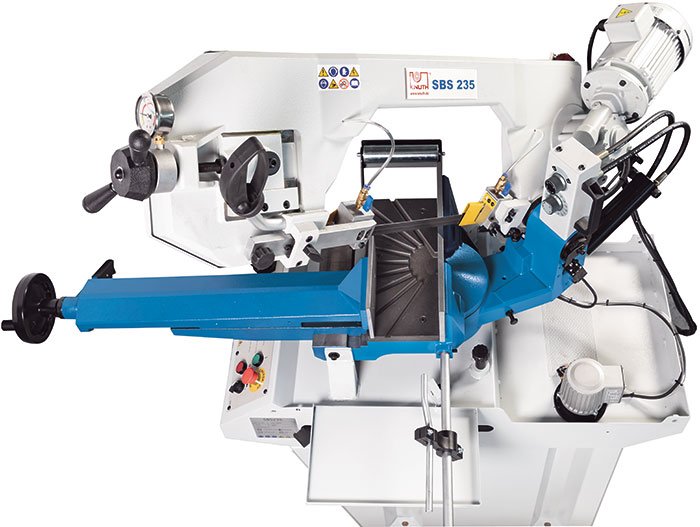

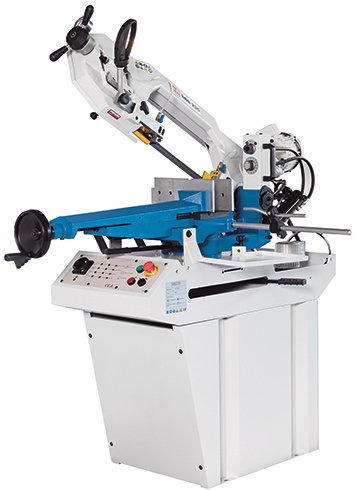

Knuth 1.5HP 400V SBS 235 Horizontal Band Saw 152778

Knuth 1.5HP 400V SBS 235 Horizontal Band Saw 152778 is a Knuth product in the Band Saws collection.

Product Details

• Cutting speed: 148 / 295 fpm
• Motor rating main drive: 1.5 Hp
• Supply voltage: 400 V
• Cutting Capacities: 0°, 45°, 60°
• Features

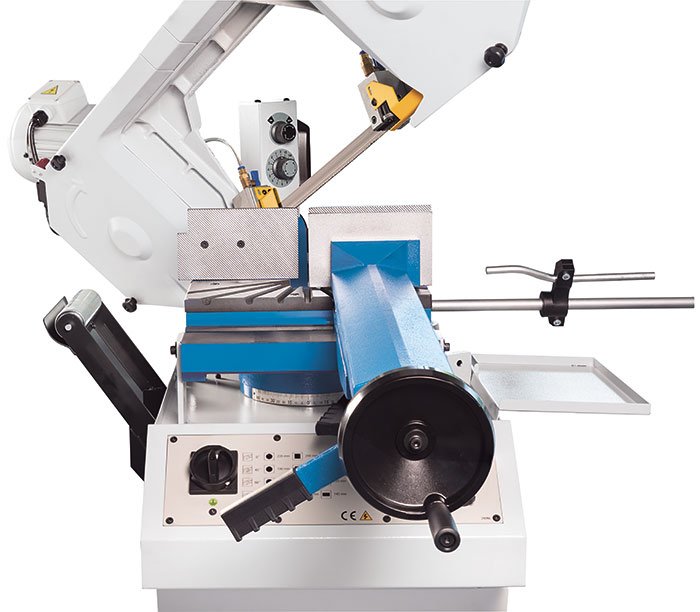

• Rigid vise with lateral slide, long stroke and long guideways in the movable jaw segments
• The one-piece cast-iron saw frame is torsion-proof and swivels 60° to the right, and 45° to the left
• Rigid saw blade guides offer a wide adjustment range for workpieces with small and large cross-sections
• The combination of carbide jaws and adjustable ball bearing guides ensure precision cuts
• A wide bi-metallic saw blade ensures additional stability during heavy machining operations
• Saw frame features manual feed for sensitive workpiece characteristics
• Hardened, polished helical gear with large bronze drive wheel for long service life
• Quiet operation, short machining times and easy handling ensure increased productivity
• Powerful motor for continuous operation
• High-capacity coolant system is included
• Includes base
• 2 saw blade speeds, selectable at the drive motor
• Mechanical quick-action clamping allows for quick release and fixation of workpieces via hand-lever; ideal for small batches
• The SBS 255 features a round setup table, which pivots in synchrony with the saw frame
• Standard Equipment
• 1 saw blade
• Coolant system
• Base
• Pressure gauge for saw blade tension
• Hydraulic cylinder for saw frame
• Operator instructions
• Specifications
• Cutting Capacities Cutting capacity 0° Round: 9” Square: 7” Flat (length x width): 6” x 10” Cutting capacity 45° Round L: 6” Square L: 6” Round R: 5” Flat L (length x width): 6” x 7” square) R: 5” flat) R (length x width): 5” x 5” Cutting capacity 60° Round R: 4” Square R: 4” Flat R (length x width): 4” x 5” Cutting speed: 148 / 295 fpm
• Cutting capacity 0° Round: 9” Square: 7” Flat (length x width): 6” x 10”
• Round: 9”
• Square: 7”
• Flat (length x width): 6” x 10”
• Cutting capacity 45° Round L: 6” Square L: 6” Round R: 5” Flat L (length x width): 6” x 7” square) R: 5” flat) R (length x width): 5” x 5”
• Round L: 6”
• Square L: 6”
• Round R: 5”
• Flat L (length x width): 6” x 7”
• square) R: 5”
• flat) R (length x width): 5” x 5”
• Cutting capacity 60° Round R: 4” Square R: 4” Flat R (length x width): 4” x 5”
• Round R: 4”
• Square R: 4”
• Flat R (length x width): 4” x 5”
• Drive Capacity Motor rating main drive: 1.5 Hp Supply voltage: 400 V
• Measures and Weights Overall dimensions (length x width x height): 58” x 29” x 42” Weight: 649 lbs. Saw blade dimensions: 104” x 1” x 0.9 mm
• Overall dimensions (length x width x height): 58” x 29” x 42”
• Weight: 649 lbs.
• Saw blade dimensions: 104” x 1” x 0.9 mm
• Options
• 170360 – Feed roller table, 3 ft, for HB-A/SBS
• 170361 – Feed roller table, 6 ft, for HB-A/SBS
• 170362 – Feed roller table, 9 ft, for HB-A/SBS
• 170363 – Discharge roller table, 3 ft, with rod stop for HB-A/SBS
• 170364 – Discharge roller table, 6 ft, with rod stop for HB-A/SBS
• 170365 – Discharge roller table, 9 ft, with rod stop for HB-A/SBS
• 103184 – Coolant Concentrate 5 Ltr

Specifications

• Manufacturer: Knuth
• SKU: 152778
• Shipping Method: LTL Freight
• Weight: 749 lb
• Dimensions: 63 × 34 × 47 in
• Country of Origin: Taiwan
