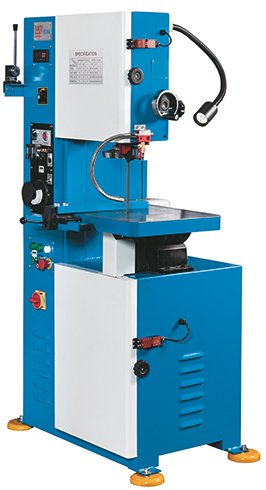

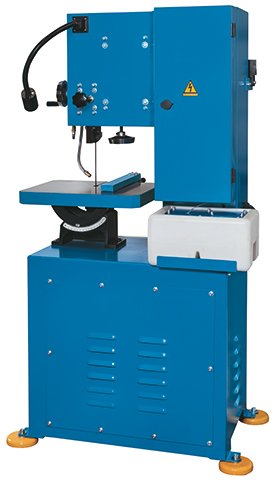

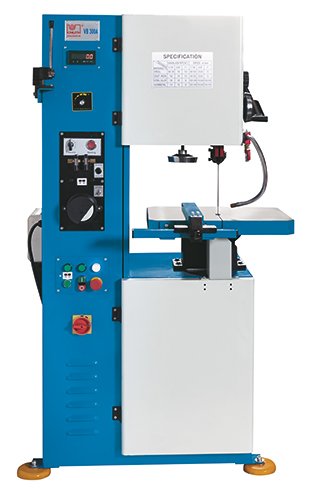

Knuth 2HP 11″x16″ VB 400A Vertical Band Saw 102641

Knuth 2HP 11″x16″ VB 400A Vertical Band Saw 102641 is a Knuth product in the Band Saws collection.

Product Details

• Blade width: 0.12” – 0.59”
• Blade length: 133.46” – 136.5”
• Cutting capacity (height x throat): 11” x 16”
• Cutting speed: 840.39 fpm
• Description
• A vertical band saw is an asset to any workshop that processes steel. Sawing, notching, and separating external and internal contours – the models in the VB A series are designed for all-round use and are characterized by their rigid construction, stable worktable, and variable belt guides.
• Features
• The machine frame features a torsionally rigid steel construction for a robust and sturdy design
• Functional and practical design, plus easy handling are common features of this entire series
• The support table swivels to the right and left for angled cuts
• The saw blade speed is controlled electronically and shown on a large digital display
• The saw blade guides feature carbide jaws that can be adjusted exactly to different saw blade widths
• Drive gear and idler feature replaceable plastic covers
• Blade tensioning can be micro-adjusted via an accessible hand-wheel
• The standard micro-cooling spray increases saw blade life, saves machining time, and reduces cost
• Standard Equipment
• Saw blade welder assembly
• Saw blade shears
• Work lamp
• Saw-band
• Coolant system
• Adjustable table stop
• Operator instructions
• Specifications
• Working Area Table dimensions: 24” x 22” x 38” Table with angle adjustment (l/r): 15/45 deg
• Table dimensions: 24” x 22” x 38”
• Table with angle adjustment (l/r): 15/45 deg
• Cutting Capacities Cutting capacity (height x throat): 11” x 16” Cutting speed: 840.39 fpm
• Drive Capacity Motor rating main drive : 2 Hp Motor rating grinding: 0.1 Hp Blade welder capacity: 2.4 kVA
• Motor rating main drive : 2 Hp
• Motor rating grinding: 0.1 Hp
• Blade welder capacity: 2.4 kVA
• Measures and Weights Overall dimensions (length x width x height): 42” x 37” x 72” Weight: 693 lbs. Blade width: 0.12” – 0.59” Blade length: 133.46” – 136.5”
• Overall dimensions (length x width x height): 42” x 37” x 72”
• Weight: 693 lbs.
• Options
• 103184 – Coolant Concentrate

Specifications

• Manufacturer: Knuth
• SKU: 102641
• Shipping Method: LTL Freight
• Weight: 743 lb
• Dimensions: 47 × 42 × 77 in
• Country of Origin: China
