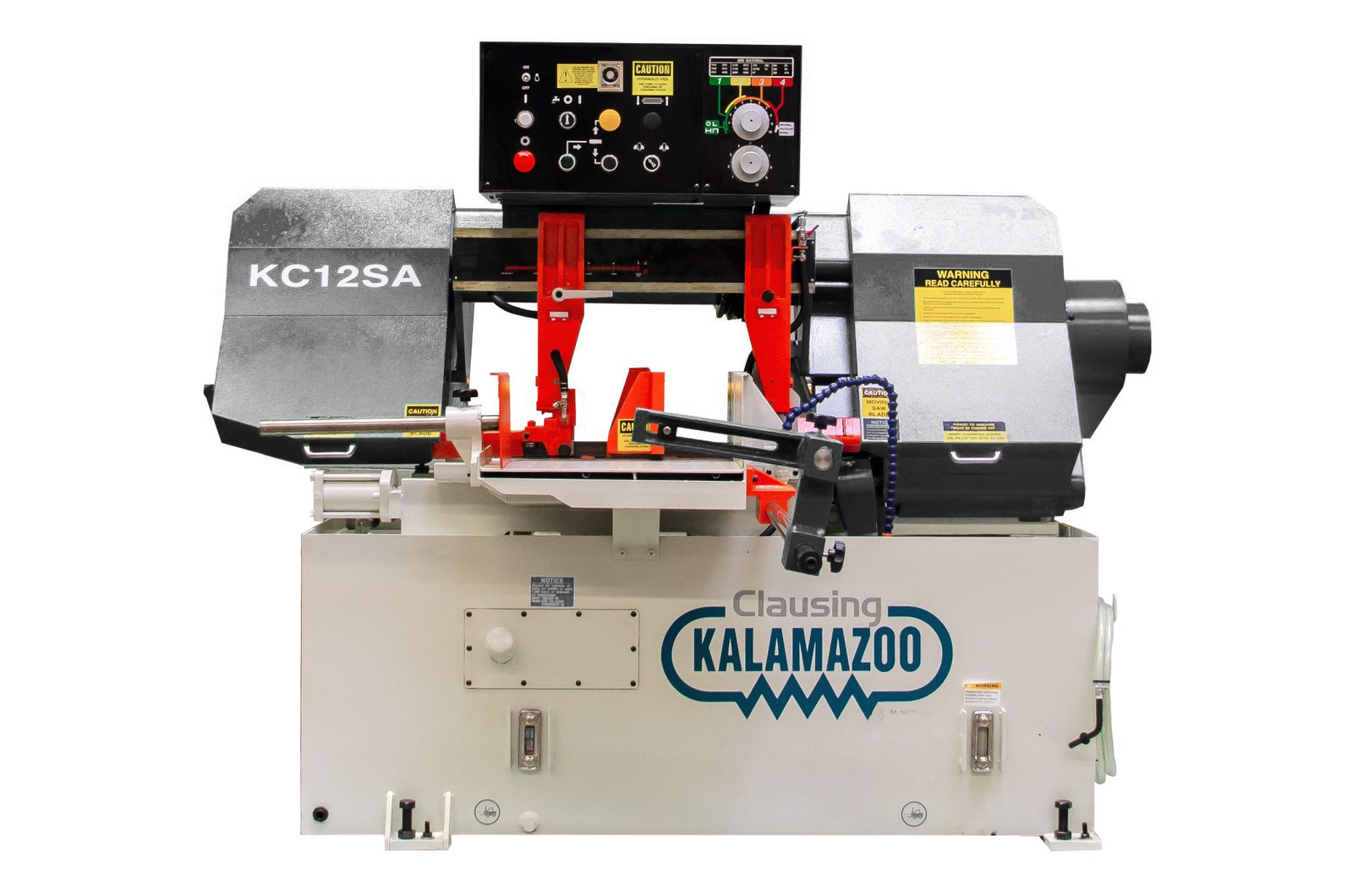

Clausing Kalamazoo 230V Three Phase 12”x12” Variable Speed Semi-Automatic Hinge Type Horizontal Bandsaw KC12SA

Clausing Kalamazoo 230V Three Phase 12”x12” Variable Speed Semi-Automatic Hinge Type Horizontal Bandsaw KC12SA is a Clausing Industrial product in the Band Saws collection.

Product Details

• Band wheel diameter: 16”
• Blade size: 1.25” x 0.042” x 150.4”
• Blade speeds: 85-445 fpm (variable speed)
• Bed height (w/o pads): 29.5”
• Description
• This Semi-Automatic Horizontal Bandsaw is designed for rugged production use and it offers high production output and heavy-duty performance in semi-automatic operation.
• A powerful drive motor provides the power and the infinitely variable blade speed gives the ability to generate heavy production jobs.
• Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
• Features
• Semi-automatic operation
• Infinitely variable blade speeds
• LED blade speed readout
• Vise clamps work piece both sides of blade
• Powered hydraulic down feed
• Automatic height setting feature
• Auto shutoff at end of cut
• Blade breakage/stoppage switch
• Hydraulic blade tension system
• 110V control circuit
• Overload protection
• 5HP 3PH Drive Motor
• Recirculating coolant system
• (1) general purpose bi-metal blade
• Stock stop assembly
• 1 gallon coolant
• Tool kit
• Operator’s manual and flushing hose for cleanup
• 90° Cutting Capacity
• Round: 12.75”
• Rectangular: 12.75” x 12.6”
• Specifications
• Bundle cutting (requires purchase of optional hydraulic bundle cutting attachment) Width: 6.5” x 10” Height: 2” to 8”
• Width: 6.5” x 10”
• Height: 2” to 8”
• Coolant: recirculating
• Coolant capacity: 10 gallons
• Hydraulic oil capacity: 6.5 gallons
• Hydraulic pump motor: 1HP
• Electrical requirements: 230V Three Phase 5HP
• Machine Dims: 47” x 75” x 73”
• Approx Weight: 2,039 lbs
• Optional Add-Ons
• Other voltages available (please contact a sales rep for more info)
• Stock stand assembly (P11)
• Vise pressure regulator single vise (VP12SA)
• Extra stock stop assembly (KC12-SSTP)
• Chip conveyor (CM1201)
• Hydraulic bundle clamps (CM1202)
• Roller tables, various sizes
• SAWZIT 1 gallon coolant (CSR1)
• SAWZIT 5 gallon coolant (CSR5)

Specifications

• Manufacturer: Clausing Industrial
• SKU: KC12SA
• Shipping Method: LTL Freight
• Weight: 2,260 lb
• Dimensions: 80 × 58 × 80 in
