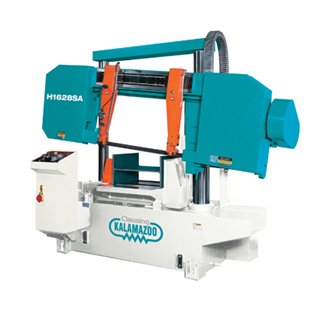

Clausing Kalamazoo 230V Three Phase 13.8”x27.5” Double-Column Variable-Speed Semi-Automatic Horizontal Bandsaw H1628SA

Clausing Kalamazoo 230V Three Phase 13.8”x27.5” Double-Column Variable-Speed Semi-Automatic Horizontal Bandsaw H1628SA is a Clausing Industrial product in the Band Saws collection.

Product Details

• Blade Speeds (variable): 66 – 328 fpm
• Balde Size: 1.5” x 0.050” x 215”
• Coolant Capacity: 10.4 gallons
• Bed Height: 27.5”
• Description
• This Double Column Semi-Automatic Horizontal Bandsaw is designed for rugged production use and it offers high production output and heavy-duty performance in semi-automatic operation.
• Twin column design ensures rigid support during cutting cycle by keeping the blade parallel and square to the work piece.
• Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
• Features
• Infinitely variable speed
• Digital blade speed indicator
• Carbide blade guides to support the blade from the top
• Automatic hydraulic blade tensioning
• Power driven blade brushes
• Integral coolant system
• Automatic shutoff at end of material or after preset number or cuts
• Precision feed pressure & feed rate
• Cast iron vises with replaceable hardened wear plates
• Discharge table with built-in coolant return
• Blade slippage or breakage detection
• Additional flushing hose
• Bi-metal saw blade
• Built in work light
• Toolbox, leveling pads, and an additional wire brush
• Operation and parts manual
• Specifications
• Machine Style: Semi-Automatic
• Drive Type: Infinitely Variable Speed
• Hydraulic Pump Motor: 1HP
• Hydraulic Oil Capacity: 13 gallons
• Blade Tension: Hydraulic
• Coolant: recirculating
• Electrical Requirements: 230V Three Phase 7.5HP
• Machine Dims: 47” x 108” x 85”
• Approx Weight: 4,440 lbs
• Cutting Capacities @ 90°
• Round: 16.5”
• Square: 16.5”
• Rectangular: 13.8” x 27.5”
• Optional Add-Ons
• Other voltages available (please contact a sales rep for more info)
• HD Roll Tables. Various Sizes
• Vise Pressure Regulator Single Vise (VP16SA)
• Chip Conveyor (CM1601HA)
• Hydraulic Bundle Clamp (CM1602HA)
• SAWZIT 1 Gallon (CSR1)
• SAWZIT 5 Gallon (CSR5)

Specifications

• Manufacturer: Clausing Industrial
• SKU: H1628SA
• Shipping Method: Flatbed
• Weight: 4,720 lb
• Dimensions: 52 × 115 × 90 in
