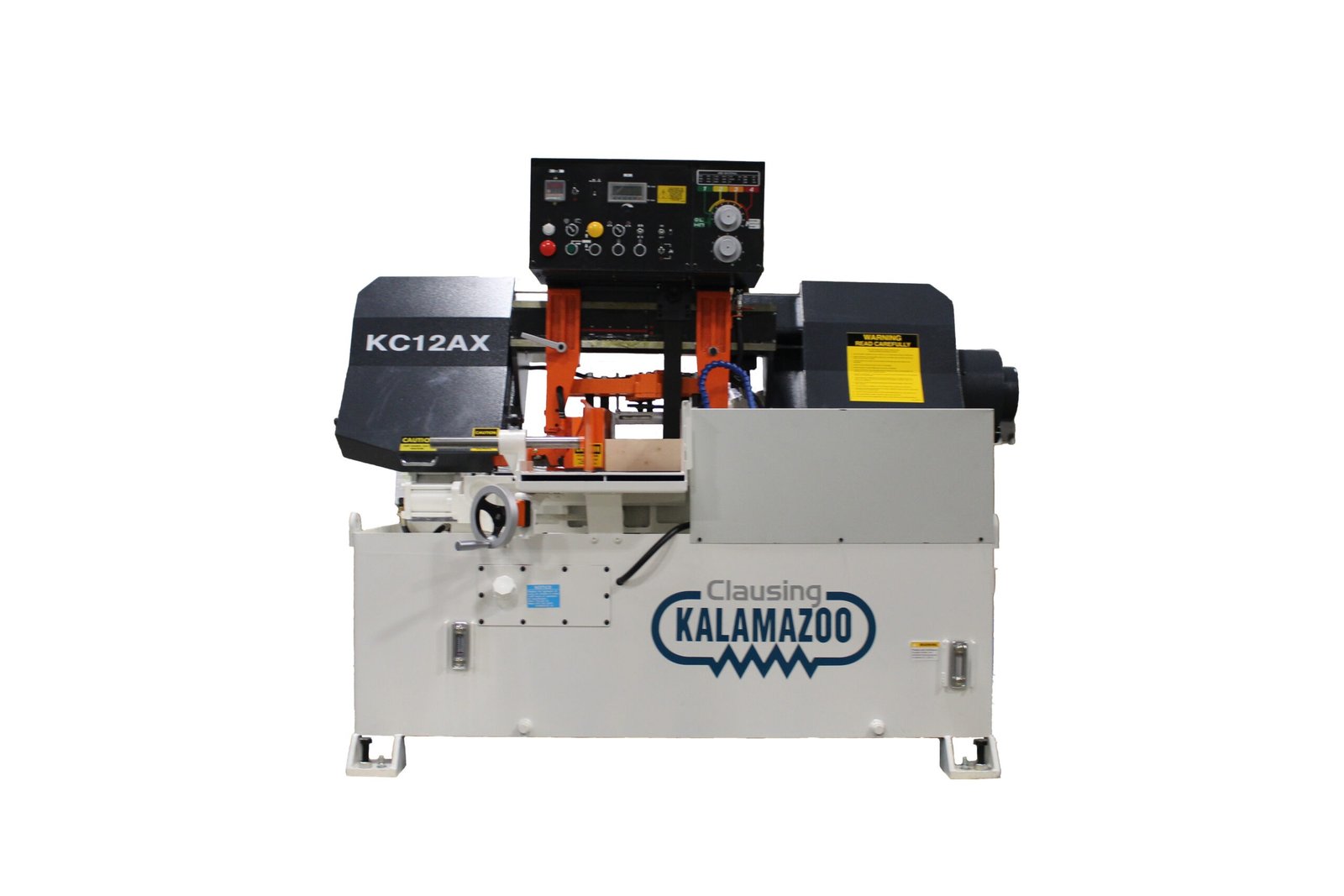

Clausing Kalamazoo 230V Three Phase 12”x12” Variable Speed Automatic Horizontal Bandsaw KC12AX

Clausing Kalamazoo 230V Three Phase 12”x12” Variable Speed Automatic Horizontal Bandsaw KC12AX is a Clausing Industrial product in the Band Saws collection.

Product Details

• Band wheel diameter: 16”
• Blade size: 1.25” x 0.042” x 150.4”
• Blade speeds: 95-395 fpm (variable speed)
• Bed height: 26”
• Description
• This model is designed for rugged production use and it offers high production output and heavy-duty performance in both semi-automatic and fully automatic operation.
• A powerful drive motor provides the power and the optional hydraulic bundling attachment makes multiple cuts easy. The hydraulic shuttle feed system offers up to nine indexes.
• Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
• Features
• Full or semi-automatic operation
• Infinitely variable blade speeds
• LED blade speed readout
• Vise clamps work piece both sides of blade
• Hydraulic down feed
• Automatic height setting feature
• Auto shutoff at end of material or after preset number of cuts
• Front-mounted digital length gauge
• Blade breakage/stoppage switch
• 110V control circuit
• Overload protection
• 5HP 3PH Drive Motor
• Recirculating coolant system
• Shuttle vise
• Hydraulic blade tension system
• (1) general purpose bi-metal blade
• 1 gallon coolant
• Toolkit
• Operator’s manual and flushing hose for cleanup
• 90° Cutting Capacities
• Round: 12.75”
• Rectangular: 12.75” x 12.6”
• Specifications
• Feed accuracy: ± 0.004” to 0.008”
• Length of remnant material (manual): 0.79”
• Length of remnant material (automatic): 1.97”
• Min cut thickness: 0.354”
• Bundle cutting (requires purchase of optional hydraulic bundle cutting attachment) Width: 6.5” x 10” Height: 2” to 8”
• Width: 6.5” x 10”
• Height: 2” to 8”
• Feed length/index: 15.75”
• Max feed (9 times): 141.75”
• Coolant: recirculating
• Coolant capacity: 10 gallons
• Hydraulic oil capacity: 6.5 gallons
• Hydraulic pump motor: 1HP
• Electrical Requirements: 230V Three Phase 5HP
• Machine Dims: 77” x 77” x 73”
• Approx Weight: 2,795 lbs
• Optional Add-Ons
• Other voltages available (please contact a sales rep for more info)
• Stock stand assembly (P10)
• Vise press regulator (VP12)
• Chip conveyor (CM1201)
• Hydraulic bundle clamps (CM1202)
• Roller tables, various sizes
• SAWZIT 1 gallon coolant (CSR1)
• SAWZIT 5 gallon coolant (CSR5)

Specifications

• Manufacturer: Clausing Industrial
• SKU: KC12AX
• Shipping Method: LTL Freight
• Weight: 3,000 lb
• Dimensions: 80 × 80 × 60 in
