Uni-Hydro 7.5HP 220V Three Phase 0.25” X 51” Hydraulic Plate Shear 205130

Uni-Hydro 7.5HP 220V Three Phase 0.25” X 51” Hydraulic Plate Shear 205130 is a Uni-Hydro product in the Shears collection.

Product Details

• Strokes Per Minute (Max): 16
• Blade Size: 3/4" x 4" x 51"
• Blade Cutting Edges: 4
• Blade Rake: 1.25" over 51"
• Description
• The Uni-Hydro Model 2551 Plate Shear is a compact powerhouse that provides Uni-Hydro’s customers with decades of trouble-free metal cutting operation. This plate shear is engineered to deliver increasing power throughout the cut with a patented system that utilizes a cylinder that is center mounted on the blade and uses pivot arms to transfer energy to three pressure points. The result is up to a 115% performance gain as the cut finishes. No other competitors’ shear matches this performance!
• Another hallmark of these plate shears of the simplicity of adjustments, a fixed low rake design, quiet hydraulic operation, and simple measuring systems for operator productivity.
• Uni-Hydro plate shears utilize a fixed low rake blade in combination with the Uni-Hydro patented mechanical linkage system. This unique combination provides their plate shears a gain in power performance.
• Features
• Single cylinder design
• Cylinder is center mounted on the blade and uses pivot arms to transfer energy to three pressure points
• Independent hydraulic hold-down

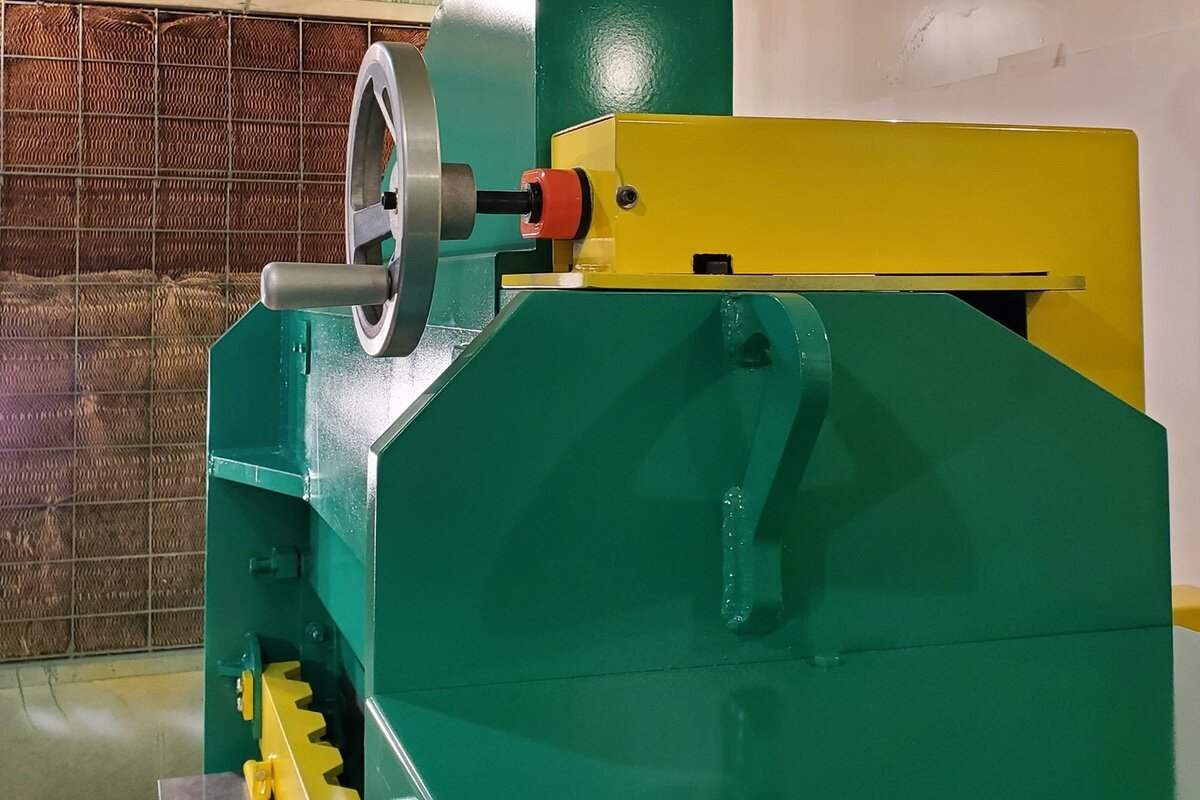

• 36” Front operated manual back gauge, 24” squaring arm
• Excellent visibility of cut
• Electric Controls including foot switch
• Even distribution of energy across the blade avoids “flexing” of the blade
• No adjustment of blade gap when switching from thin to thick material
• Fixed Low Rake Blade
• Built for forklift handling or lifting with overhead eyelet’s
• Specifications
• Model: 2551
• Metal Shear Capacity: 1/4" x 51"
• Motor: 7 1/2 HP, 3 phase
• Hydraulic System Pump: 1200 psi
• Oil Capacity: 10 gallons
• Dimensions (L x W x H): 80" x 26" x 72”
• Deck Height: 32"
• Weight: 4,480 lbs.

Specifications

• Manufacturer: Uni-Hydro
• SKU: 205130 (220V)
• Shipping Method: LTL Freight
• Weight: 4,580 lb
• Dimensions: 85 × 31 × 77 in
• Country of Origin: United States of America
• Warranty: 1 Year (Parts)
