Uni-Hydro 10HP 220V Single Phase 0.375” x 96” Hydraulic Plate Shear 231896

Uni-Hydro 10HP 220V Single Phase 0.375” x 96” Hydraulic Plate Shear 231896 is a Uni-Hydro product in the Shears collection.

Product Details

• Strokes Per Minute (max): 12
• Blade Size: 1” x 4” x 100”
• Blade Cutting Edges: 4
• Blade Rake: 2.5” over 96”
• Description

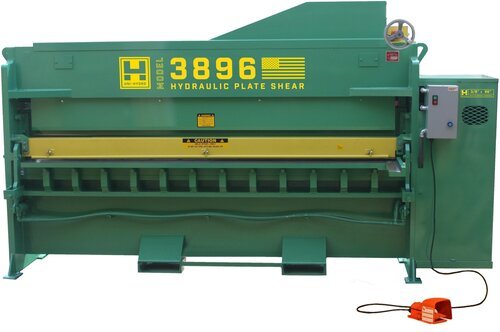

• The Uni-Hydro Model 3896 Plate Shear is a compact powerhouse that provides Uni-Hydro’s customers with decades of trouble free metal cutting operation. This plate shear is engineered to deliver increasing power throughout the cut with a patented system that utilizes a cylinder that is center mounted on the blade and uses pivot arms to transfer energy to three pressure points. The result is up to a 115% performance gain as the cut finishes. No other competitors shear matches this performance!
• Another hallmark of these plate shears of the simplicity of adjustments, a fixed low rake design, quiet hydraulic operation, and simple measuring systems for operator productivity.
• Uni-Hydro plate shears utilize a fixed low rake blade in combination with the Uni-Hydro patented mechanical linkage system. This unique combination provides their plate shears a gain in power performance.
• Features
• Single cylinder design
• Cylinder is center mounted on the blade and uses pivot arms to transfer energy to three pressure points
• Independent hydraulic hold-down

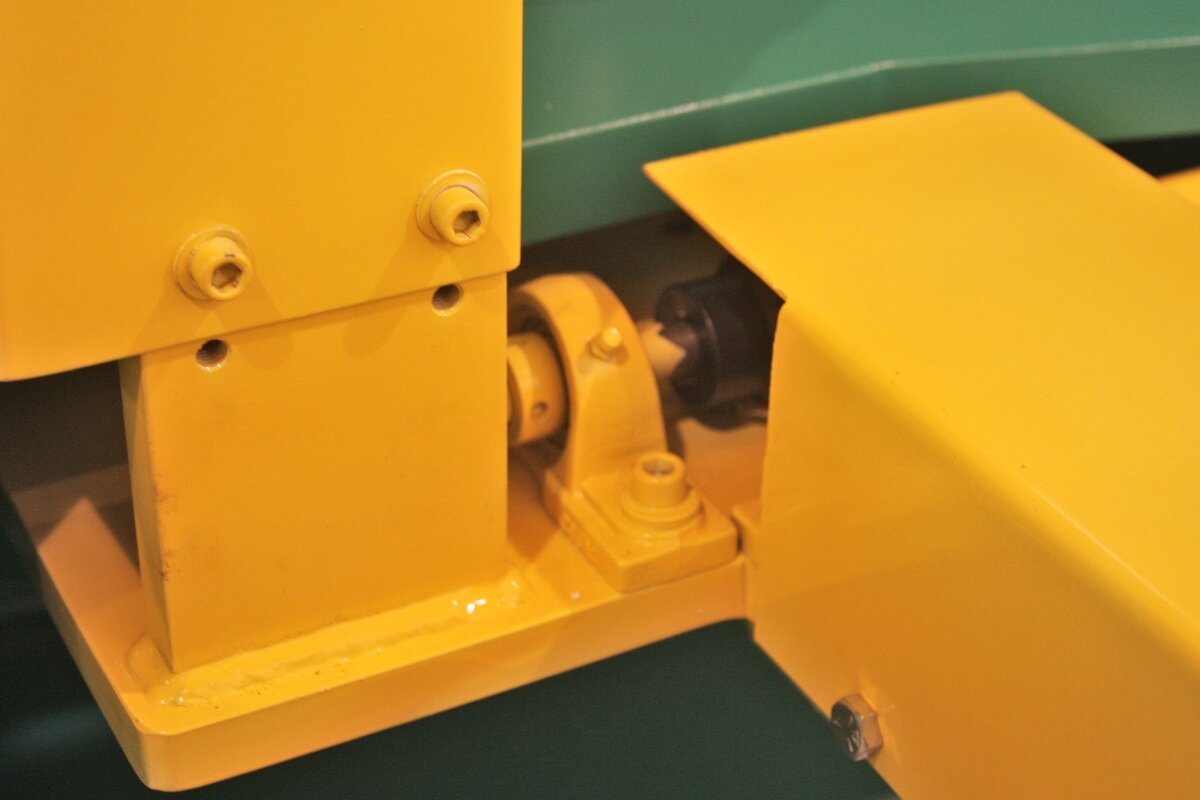

• 36” Front operated manual back gauge, 24” squaring arm
• Excellent visibility of cut
• Electric Controls including foot switch
• Even distribution of energy across the blade avoids “flexing” of the blade
• No adjustment of blade gap when switching from thin to thick material
• Fixed Low Rake Blade
• Built for forklift handling or lifting with overhead eyelet’s
• Specifications
• Model: 3896
• Metal Shear Capacity: 3/8” x 96”
• Motor: 10 HP, 1 Phase
• Hydraulic System Pump: 1400 psi
• Oil Capacity: 15.5 gallons
• Dimensions (L x W x H): 132” x 47” x 74”
• Deck Height: 31.75”
• Weight: 10,840 lbs.

Specifications

• Manufacturer: Uni-Hydro
• SKU: 231896
• Shipping Method: Flatbed
• Weight: 10,940 lb
• Dimensions: 137 × 52 × 79 in
• Country of Origin: United States of America
• Warranty: 1 Year (Parts)
