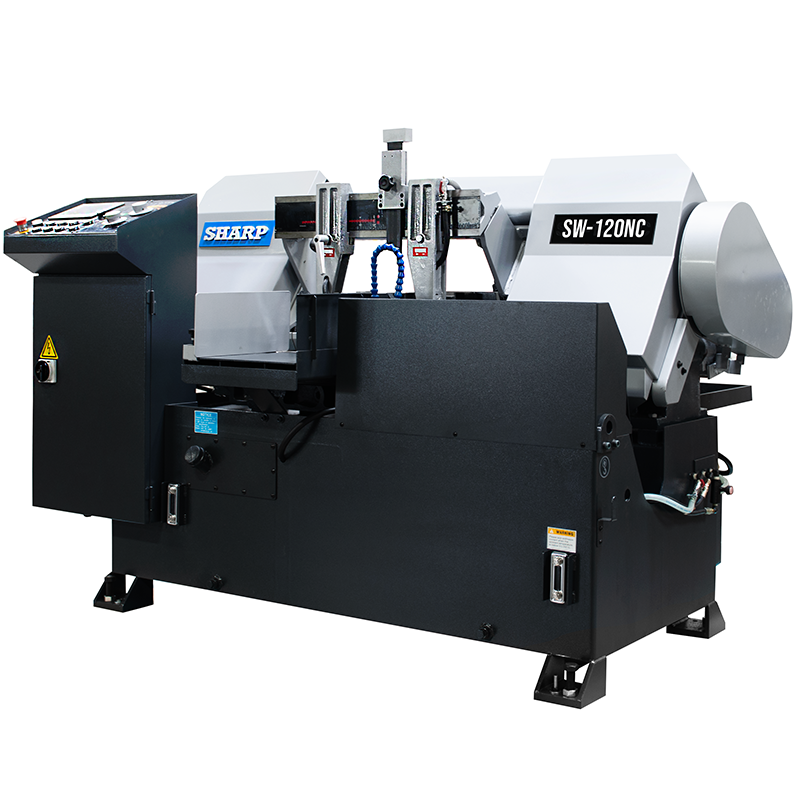

Sharp Industries 5 HP NC Control Horizontal Band Saw with 12” Cutting Capacity SW-120NC

Sharp Industries 5 HP NC Control Horizontal Band Saw with 12” Cutting Capacity SW-120NC is a Sharp Industries product in the Band Saws collection.

Product Details

• Cutting Capacity: Round: 12”, Square: 12”
• Feed Mode: Hydraulic, NC Automatic
• Speed: 66-330 fpm
• Motor: 5 HP
• Description
• This NC operated hydraulic heavy duty automatic band saw utilize the Smart NC-100 system to store most parameters and functions and programmed to perform most cutting jobs.
• Standard Features
• 12” round, 12” square, 13.4” x 12” rectangular cutting capacity, 5 HP
• NC operating panel with touch screen
• Hydraulic saw frame with heavy duty ball joint for powerful down feed
• Back tilt saw head design to reduce saw twisting between wheel and blade guide
• Carbide blade guides with roller bearings pre-align the blade before entering carbide blade guides. It enhances blade life
• Automatic hydraulic blade tensioning provide proper tensioning during and after machining
• Multiple coolant applied during exit and entry of blade through blade guides, during cutting, and blade cleaning with brush
• Gearbox blade drive for heavy duty cutting
• "Programmable touch screen control of input quantity, material length, feed vise position, auto kerf loss compensation, display blade speed, feed pressure, work height, feed rate selection, auto shut down"
• 10", 12", 12.6", 16.5", 18.5", 31.5" square, round cutting capacity
• Programmable 100 jobs
• Error feedback function
• Other features as automatic band saws
• Blade "clip" change device
• Bi-metal saw blade
• Additional fence to support bundled cut off stock
• Built-in work light
• Coolant system
• Tool box and tools
• Specifications
• Round: 12”
• Square: 12”
• Rectangle: 12” x 13.4”
• Size: 1 1/4” x .042” x 150.4”
• Tension: Hydraulic
• Guides: Interchangeable Tungsten Carbide
• Cleaning: Steel Wire Brush with Flexible Drive Shaft Driven by Main Motor
• Saw Blade Motor Output: 5 HP
• Hydraulic Motor Output: 1 HP
• Coolant Motor Output: 0.12 HP
• Hydraulic Oil Tank Capacity: 6.6 gal.
• Collant Tank Capacity: 11.9 gal.
• Feed Length: Single Stoke: 15.86”
• Vise Control: Hydraulic with Full Stroke Cylinder
• Net Weight: 3,528 lbs
• Gross Weight: 3,970 lbs
• Floor Space (L x W x H): 7.08’ x 6.80’ x 6.23’
• Available Options & Accessories
• Hydraulic chip conveyor
• Vise pressure regulator
• 3 M powered roller table
• Double retracting vise jaws
• Hydraulic tool clamp for bundle cut
• Laser beam light

Specifications

• Manufacturer: Sharp Industries
• SKU: SW-120NC
• Shipping Method: LTL Freight
• Weight: 3,970 lb
• Dimensions: 57 × 30 × 48 in
• Country of Origin: Taiwan
• Warranty: 1 Year (Parts)
