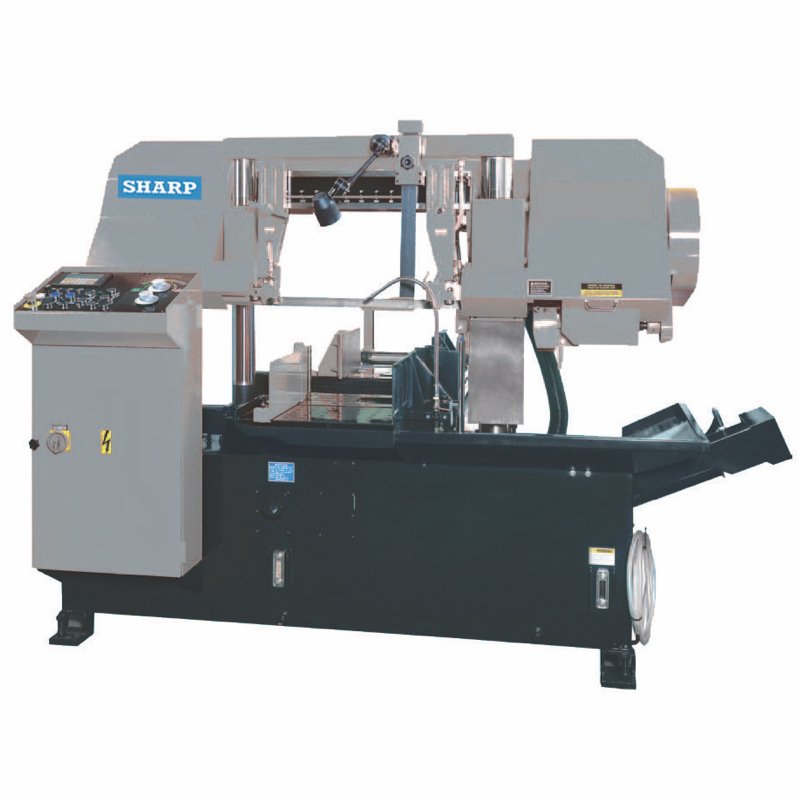

Sharp Industries 5 HP NC Control Double Column Horizontal Band Saw with 12.6” Cutting Capacity SW-126NCD

Sharp Industries 5 HP NC Control Double Column Horizontal Band Saw with 12.6” Cutting Capacity SW-126NCD is a Sharp Industries product in the Band Saws collection.

Product Details

• Cutting Capacity: Round: 12.6”, Square: 12.6”
• Single Index Stroke: 0 to 156.86”
• Speed: 66-328 fpm
• Motor: 5 HP
• Description
• This NC operated hydraulic heavy duty double column automatic band saw that utilize the Smart NC-100 system to store most parameters and functions and programmed to perform most cutting jobs. The double column design ensure smooth saw frame movement and consistent stable cutting force to achieve high cutting efficiency and extended blade life.
• Standard Features
• 6” round, 12.6” square, 15” x 12” rectangular cutting capacity, 5 HP
• NC operating panel with touch screen
• Double column hydraulic saw frame with heavy duty ball joint for powerful down feed
• Carbide blade guides with roller bearings pre-align the blade before entering carbide blade guides. It enhances blade life
• Automatic hydraulic blade tensioning provide proper tensioning during and after machining
• Multiple coolant applied during exit and entry of blade through blade guides, during cutting, and blade cleaning with brush
• Gearbox blade drive for heavy duty cutting
• "Programmable touch screen control of input quantity, material length, feed vise position, auto kerf loss compensation, display blade speed, feed pressure, work height, feed rate selection, auto shut down"
• 10", 12", 12.6", 16.5", 18.5", 31.5" square, round cutting capacity
• Programmable 100 jobs
• Error feedback function
• Other features as automatic band saws
• Blade "clip" change device
• Bi-metal saw blade
• Additional fence to support bundled cut off stock
• Built-in work light
• Coolant system
• Tool box and tools
• Specifications
• Round: 12.6”
• Square: 12.6”
• Rectangle: 12.6” x 15”
• Size: 1 1/4” x .042” x 167”
• Guides: Tungsten Carbide Blade Guide
• Saw Blade Motor Output: 5 HP
• Hydraulic Motor Output: 1 HP
• Coolant Motor Output: 0.12 HP
• Multiple Stroke Indexing: 0 to 3.89”
• Vise Control: Hydraulic with Full Stroke Cylinder
• Weight: 4,840 lbs
• Floor Space (L x W x H): 6.58’ x 6.58’ x 4.91’
• Available Options & Accessories
• Hydraulic chip conveyor
• Vise pressure regulator
• 3 M powered roller table
• Double retracting vise jaws
• Hydraulic tool clamp for bundle cut
• Laser beam light

Specifications

• Manufacturer: Sharp Industries
• SKU: SW-126NCD
• Shipping Method: Flatbed
• Weight: 5,000 lb
• Dimensions: 72 × 72 × 60 in
• Country of Origin: Taiwan
• Warranty: 1 Year (Parts)
