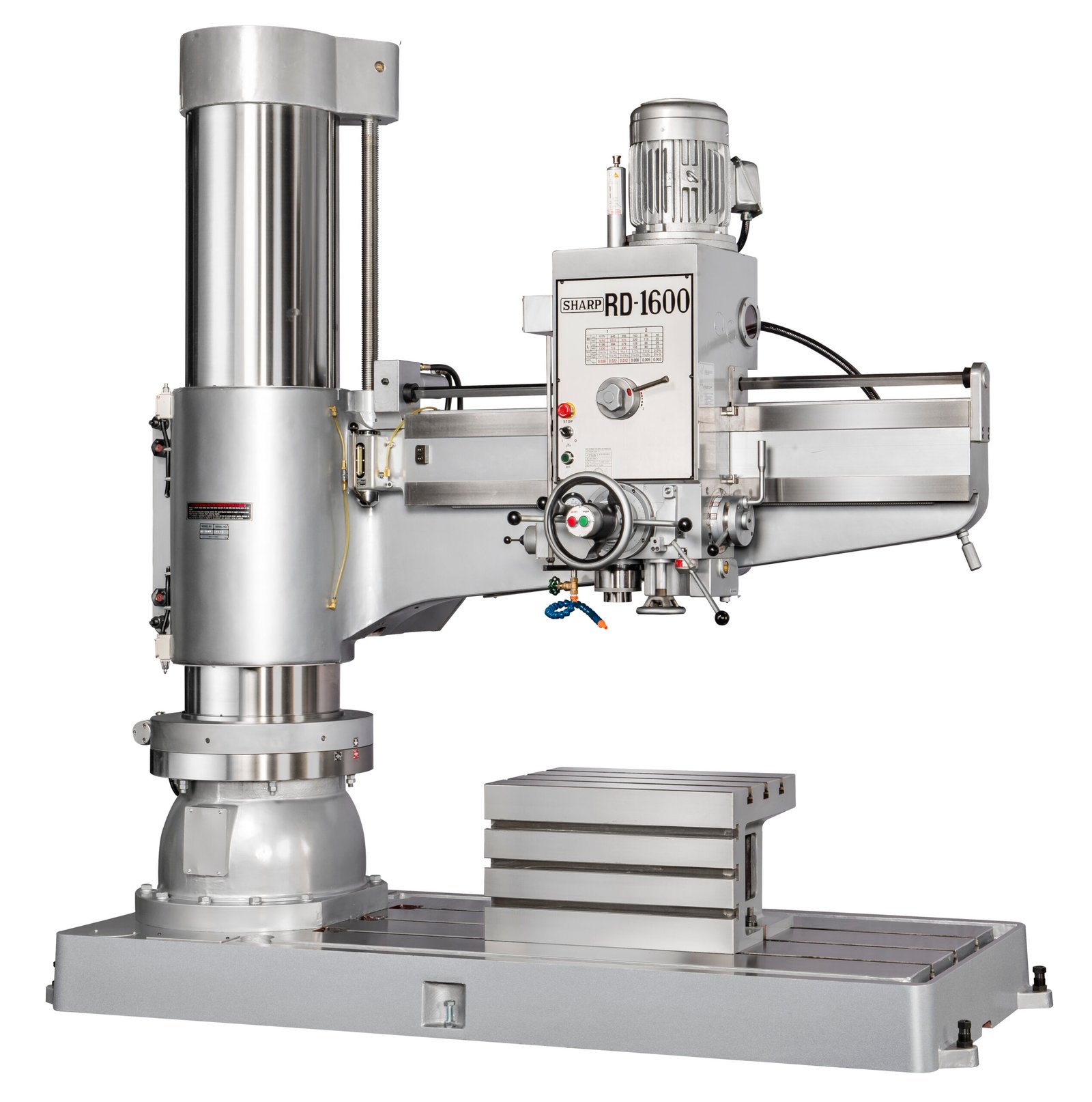

Sharp Industries 220V 7.5 HP Radial Drill RD-1600

Sharp Industries 220V 7.5 HP Radial Drill RD-1600 is a Sharp Industries product in the Drill Presses collection.

Product Details

• Diameter to Column: 17”
• Head Travel: 50”
• Column to Spindle: 63”
• Motor: 220V, 7.5 HP
• Description
• This is a high-performance machine ideal for drilling, tapping, boring, reaming, lapping, screwing, counter boring, spot facing, and much more, on materials such as cast iron and steel.
• Standard Features
• 17” column diameter
• MT#5 spindle, 7.5 HP motor
• 63” column to spindle center
• Drilling : 2.63” cast iron, 2.25” steel
• Boring : 7.37” cast iron, 5” steel
• Hardened and ground arm slide ways and gears
• Double tube column design to increase rigidity
• Arm elevation controlled by electric motor
• Built-in automatic tool ejector
• Safety device prevents arm from dropping even when bronze nut is worn out
• T-slots and drain channels on box table
• Box table
• Coolant system
• Auto spindle reverse for tapping
• Work light
• Tool box
• Specifications
• Diameter of column: 17”
• Distance from column surface to spindle center, max.: 63”
• Distance from column surface to spindle center, min.: 13.37”
• Travel of spindle head: 49.62”
• Distance from base surface to spindle end, max.: 63”
• Distance from base surface to spindle end, min.: 13”
• Elevating height of arm: 35.43”
• Effective area of table: 27.62” x 19.62” x 15.75”
• Dimensions of base: 97.62” x 41.34” x 8.25”
• Taper hole in spindle: MT #5
• Stoke of spindle: 14.56”
• R.P.M. of spindle (rpm range x steps): 40-1920 x 12 Steps
• Feed of spindle (1PR x steps): 0.003-0.038” x 6 Steps
• Main motor: 7.5 HP
• Elevating motor: 2 HP
• Clamping motor for column and gear-box: 1 HP
• Clamping motor for arm: 1.5 HP
• Coolant pump: 1.12 HP
• Machine height from floor, max.: 10.40’
• Measurement (LxWxH) / Floor Space: 8.5’ x 3.75’ x 8.75’
• Measurement (LxWxH) / Shipping Dims: 9.16’ x 4.75’ x 9.58’
• Approximate shipping weight: 10,340 Lbs.
• Cast Iron: Drilling: 2.62” Capacity Tapping: 2.37” Boring: 7.37”
• Drilling: 2.62”
• Capacity Tapping: 2.37”
• Boring: 7.37”
• Steel: Drilling: 2.25” Capacity Tapping: 2” Boring: 5”
• Drilling: 2.25”
• Capacity Tapping: 2”
• Boring: 5”
• Total Power Consumption (220V): 12 KVA/35 amps
• ​​​​​​​ Available Options & Accessories
• Tilting Box Table

Specifications

• Manufacturer: Sharp Industries
• SKU: RD-1600 (220V)
• Shipping Method: Flatbed
• Weight: 10,780 lb
• Dimensions: 110 × 57 × 115 in
• Country of Origin: Taiwan
• Warranty: 1 Year (Parts)
