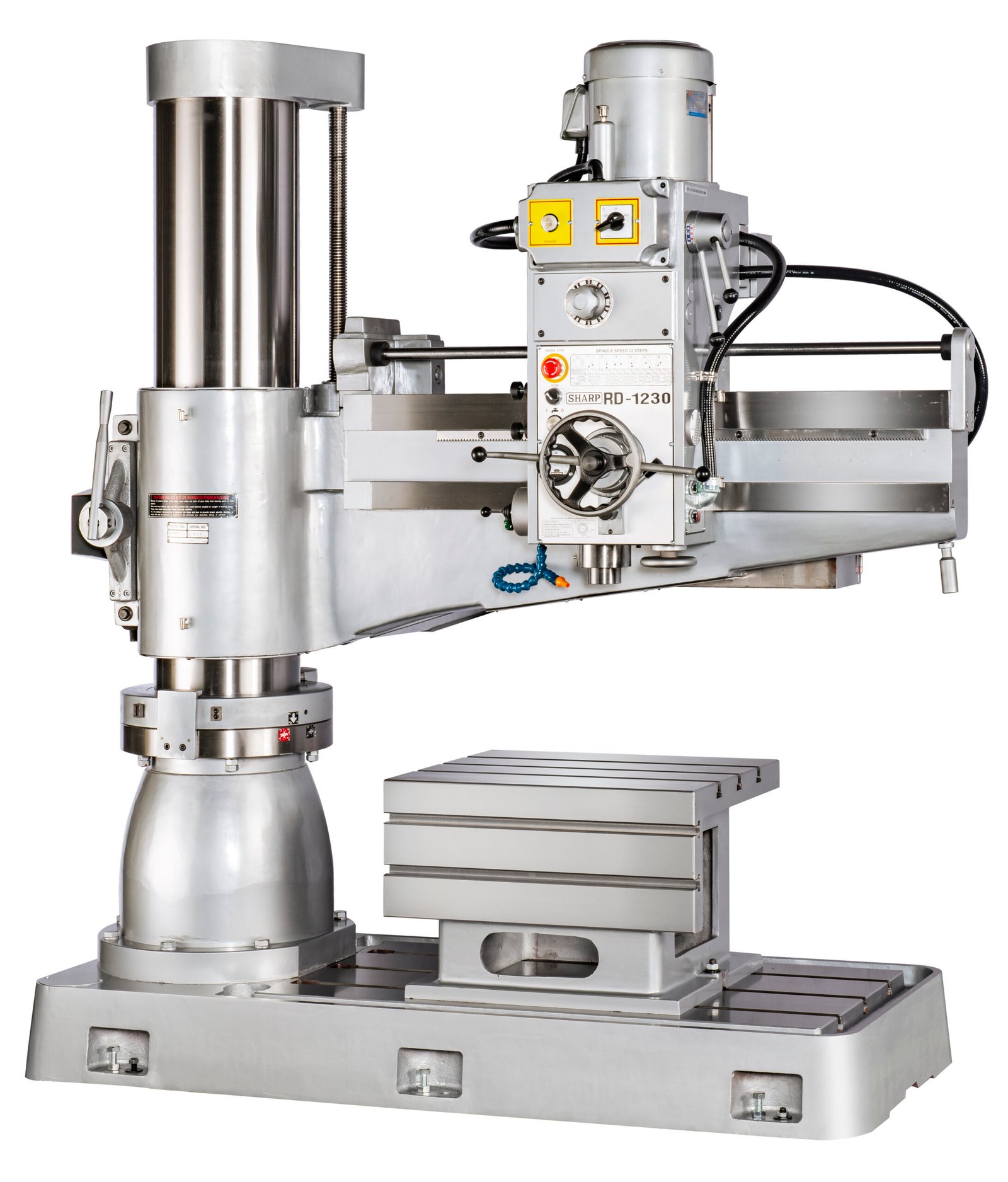

Sharp Industries 220V 5 HP Radial Drill RD-1230

Sharp Industries 220V 5 HP Radial Drill RD-1230 is a Sharp Industries product in the Drill Presses collection.

Product Details

• Diameter to Column: 12”
• Head Travel: 35”
• Column to Spindle: 48”
• Motor: 220V, 5 HP
• Description
• This is a high-performance machine ideal for drilling, tapping, boring, reaming, lapping, screwing, counter boring, spot facing, and much more, on materials such as cast iron and steel.
• Standard Features
• 12” column diameter
• MT#4 spindle, 5 HP motor
• 48” column to spindle center
• Drilling : 2.18” cast iron, 1.62” steel
• Boring : 4.75” cast iron, 3.37” steel
• Hardened and ground arm slide ways and gears
• Double tube column design to increase rigidity
• Arm elevation controlled by electric motor
• Manually operated arm, head, clamping
• Safety device prevents arm from dropping even when bronze nut is worn out
• Spindle depth setting with automatic kickout
• T-slots and drain channels on box table
• Box table
• Coolant system
• Auto spindle reverse for tapping
• Work light
• Tool box
• Specifications
• Diameter of column: 11.81”
• Distance from column surface to spindle center, max.: 48.5”
• Distance from column surface to spindle center, min.: 13.37”
• Travel of spindle head: 35”
• Distance from base surface to spindle end, max.: 54”
• Distance from base surface to spindle end, min.: 19.37”
• Elevating height of arm: 2.88’
• Effective area of table: 27.62” x 19.62” x 15.75”
• Dimensions of base: 67.68” x 27.93” x 6.5”
• Taper hole in spindle: MT #4
• Stoke of spindle: 9.87”
• R.P.M. of spindle (rpm range x steps): 44-150 x 12 Steps
• Feed of spindle (1PR x steps): 0.002-0.006” x 3 Steps
• Main motor: 5 HP (2 speed motor)
• Elevating motor: 1 HP
• Clamping motor for column and gear-box: 1 HP
• Clamping motor for arm: 1 HP
• Coolant pump: 0.12 HP
• Machine height from floor, max.: 9.12’
• Measurement (LxWxH): 6.66’ x 3.25’ x 7.41’
• Approximate shipping weight: 4,950 Lbs.
• Cast Iron: Drilling: 2.18” Capacity Tapping: 1.5” Boring: 4.75”
• Drilling: 2.18”
• Capacity Tapping: 1.5”
• Boring: 4.75”
• Steel: Drilling: 1.62” Capacity Tapping: 1” Boring: 3.37”
• Drilling: 1.62”
• Capacity Tapping: 1”
• Boring: 3.37”
• Total Power Consumption (220V): 8 KVA/25 amps
• ​​​​​​​ Available Options & Accessories
• Tilting Box Table

Specifications

• Manufacturer: Sharp Industries
• SKU: RD-1230 (220V)
• Shipping Method: LTL Freight
• Weight: 4,950 lb
• Dimensions: 80 × 40 × 90 in
• Country of Origin: Taiwan
• Warranty: 1 Year (Parts)
