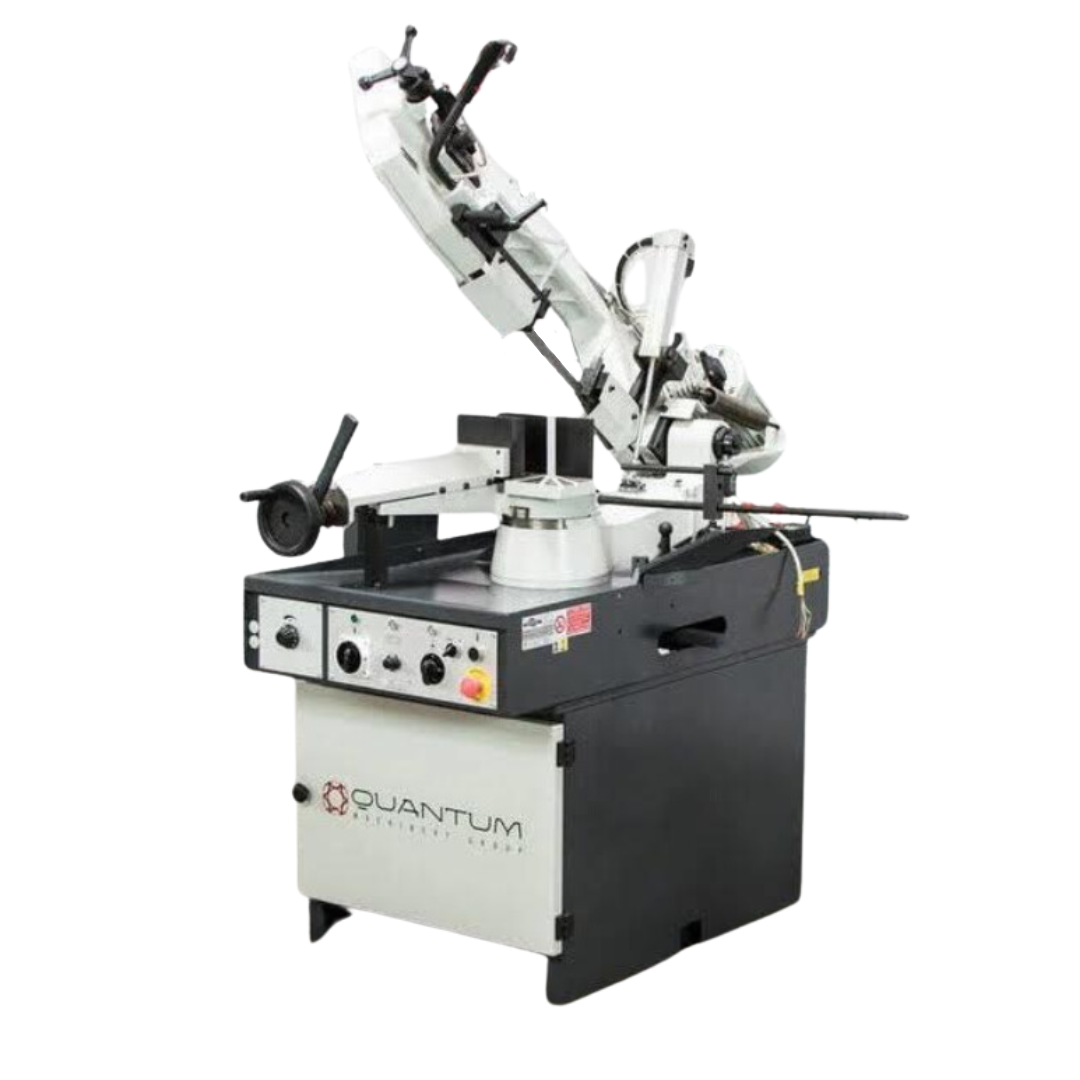

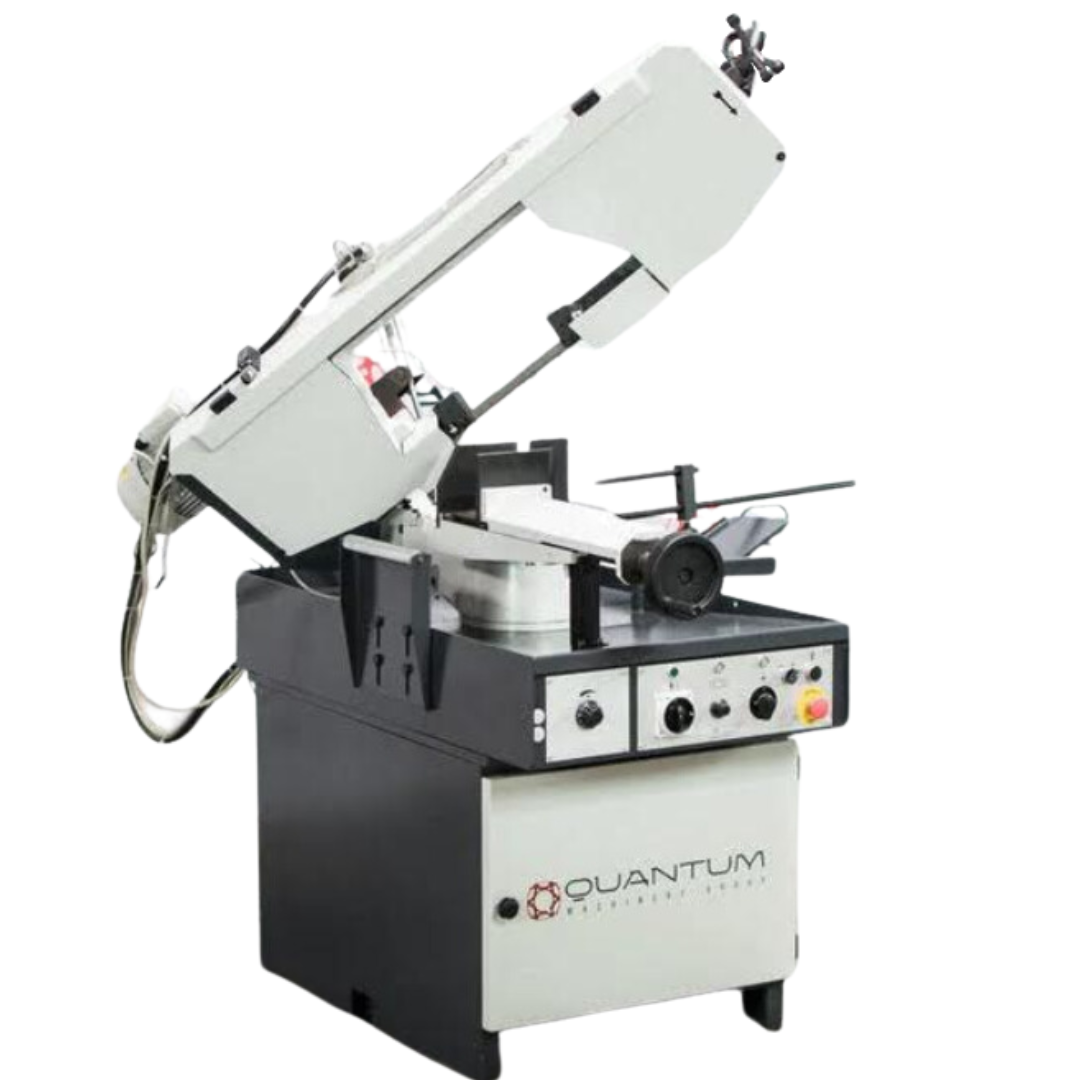

Quantum Machinery 220V Three Phase Manual Band Saw with Automatic Head Descent and Variable Speed Inverter S 320 CSO

Quantum Machinery 220V Three Phase Manual Band Saw with Automatic Head Descent and Variable Speed Inverter S 320 CSO is a Quantum Machinery Group product in the Band Saws collection.

Product Details

• Cutting Thickness: 1.2mm
• Cutting Range: 90° Straight up to 60° Right
• Blade Size: 2825mm x 27mm x 0.9mm
• Max Vice Opening: 12.4”
• Maximum Cutting Capacities
• Round Tube Straight Cut: 9” 45° Right Cut: 7.75” 60° Right Cut: 5”
• Straight Cut: 9”
• 45° Right Cut: 7.75”
• 60° Right Cut: 5”
• Square Tube Straight Cut: 8.5” 45° Right Cut: 7” 60° Right Cut: 4.5”
• Straight Cut: 8.5”
• 45° Right Cut: 7”
• 60° Right Cut: 4.5”
• Rectangular Tube Straight Cut: 6.5”H x 11.75”W 45° Right Cut: 7”H x 9”W 60° Right Cut: 4.25”H x 5”W
• Straight Cut: 6.5”H x 11.75”W
• 45° Right Cut: 7”H x 9”W
• 60° Right Cut: 4.25”H x 5”W
• Features
• Sawing machine with bow falling controlled by a hydraulic circuit upon cutting, bar feeing and vice closure manually operated, manual head return
• Vertical rotation on bolt with adjustable tapered bearings without backlash
• High-capacity band control by two-speed motor and special reducer with bronze gear and tempered and ground worm screw
• Appropriately dimensioned flywheels
• Strong band guides with tight stress-raiser bearings and adjustable widia tips
• Band stretching is obtained by electro-mechanical blade tensioner with microswitch

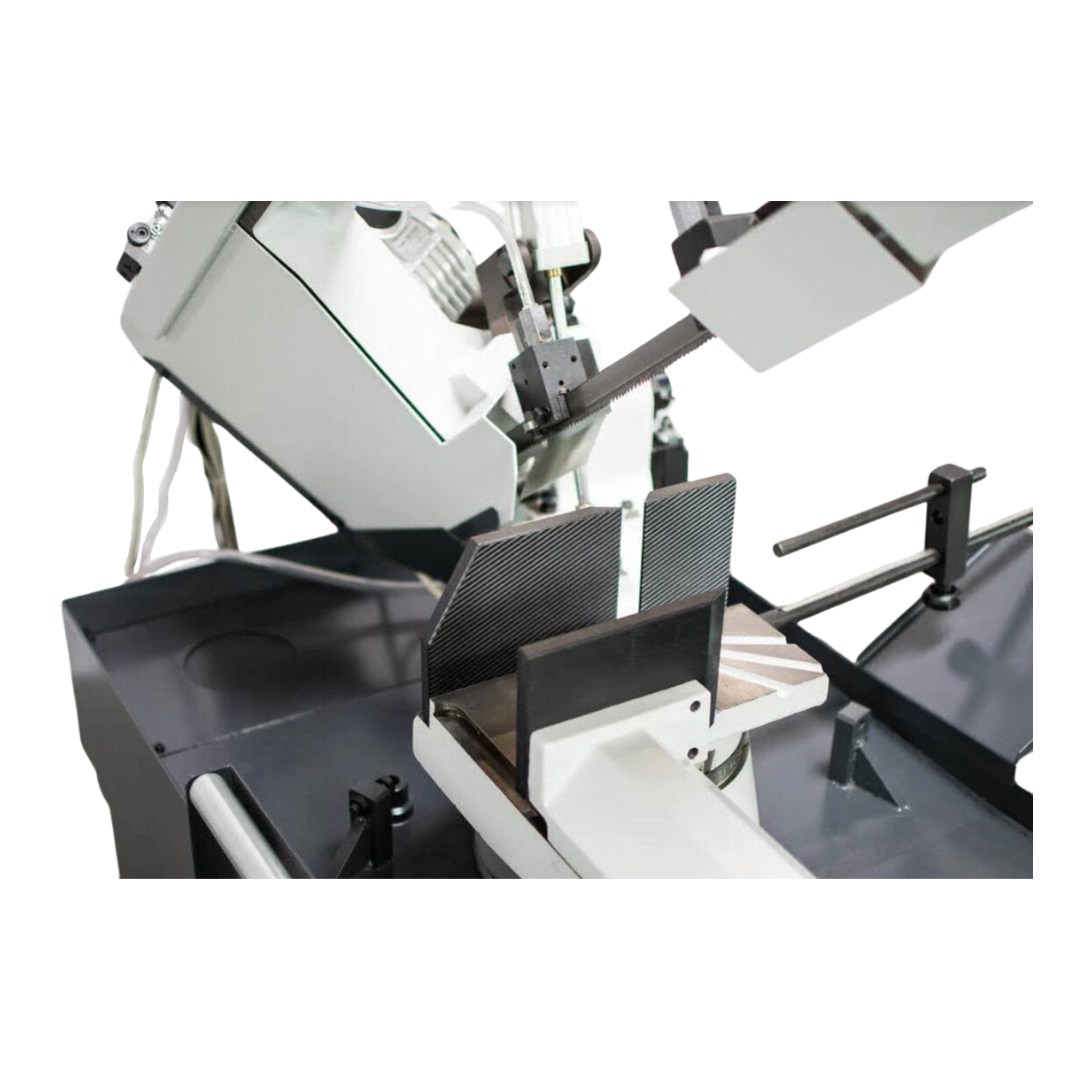

• Vice with a device for quick approach
• Wide rotating material support table
• Accident-preventing devices on the flywheel casing, on the control handle, and on the blade
• Adjustable stop for cuts of the same size
• 24V low tension plant
• 0.06 kW power-driven pump for band cooling
• Includes: bar stop, bar support arm, instruction manual, service tools, & 1 band saw blade
• Specifications
• 2 Speeds: 35-71
• Power-driven pump: 0.06 kW
• Electrical Requirements: 220V / Three Phase / 60Hz
• Overall Dims (w/o bar stop): 73” x 31” x 75”
• Overall Dims (w/bar stop): 73” x 45” x 75”
• Machine Weight: 780 lbs

Specifications

• Manufacturer: Quantum Machinery Group
• SKU: S 320 CSO
• Shipping Method: LTL Freight
• Weight: 820 lb
• Dimensions: 80 × 48 × 82 in
