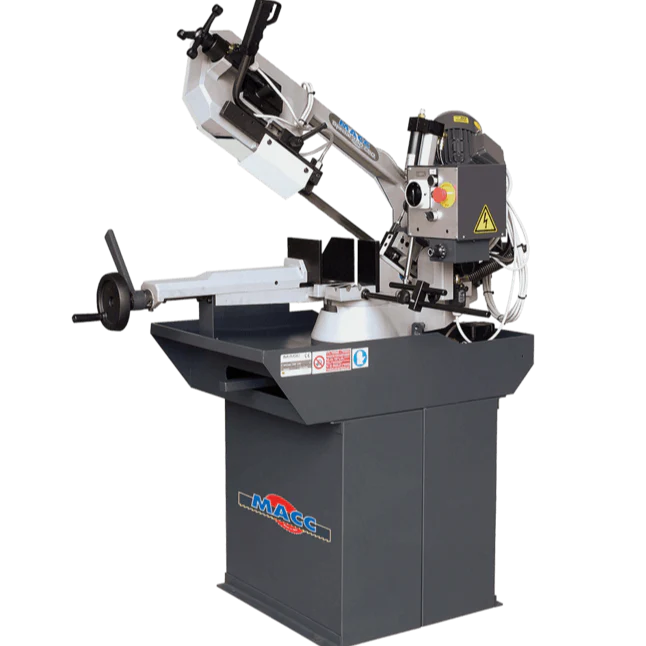

Quantum Machinery 220V Three Phase 8.6″ Manual Band Saw with Automatic Hydraulic Head Descent S 280 CSO

Quantum Machinery 220V Three Phase 8.6″ Manual Band Saw with Automatic Hydraulic Head Descent S 280 CSO is a Quantum Machinery Group product in the Band Saws collection.

Product Details

• Cutting Thickness: 0.047”
• Cutting Range: 90° Straight up to 60° Right
• Blade Size: 2450mm x 27mm x 0.9mm
• 2 Speeds: 32-66 feet per minute
• Maximum Cutting Capacities
• Round Tube Straight Cut: 8.6” 45° Right Cut: 6.25” 60° Right Cut: 4”
• Straight Cut: 8.6”
• 45° Right Cut: 6.25”
• 60° Right Cut: 4”
• Square Tube Straight Cut: 8.4” 45° Right Cut: 5.9” 60° Right Cut: 3.25”
• Straight Cut: 8.4”
• 45° Right Cut: 5.9”
• 60° Right Cut: 3.25”
• Rectangular Tube Straight Cut: 6”H x 9.75”W 45° Right Cut: 4.25”H x 6.25”W 60° Right Cut: 3.13”H x 3.6”W
• Straight Cut: 6”H x 9.75”W
• 45° Right Cut: 4.25”H x 6.25”W
• 60° Right Cut: 3.13”H x 3.6”W
• Features
• Sawing machine with bow falling controlled by a hydraulic circuit upon cutting, bar feeding, and vice closure manually operated, manual head return
• Vertical rotation on bolt with adjustable tapered bearings without backlash
• High-capacity band control by two-speed motor and special reducer with bronze gear and tempered and ground worm screw
• Appropriately dimensioned flywheels
• Strong bond guides with tight stress-raiser bearings and adjustable widia tips
• Band stretching is obtained by electro-mechanical blade tensioner with microswitch
• Vice with a device for quick approach
• Wide rotating material support table
• Accident-preventing devices on the flywheel casing, on the control handle, and on the blade
• Adjustable stop for cuts of the same size
• 24V low tension plant
• 0.06 kW power-driven pump for band cooling
• Includes: Bar stop, bar support arm, instruction manual, service tools, & 1 bandsaw blade
• Specifications
• Max Vice opening: 9.80”
• Power Driven Pump: 0.06 kW
• Electrical Requirements: 220V / Three Phase / 60Hz
• Overall Dims (w/o bar stop): 61.8” x 23.6” x 68.7”
• Overall Dims (w/bar stop): 61.8” x 36.2” x 68.7”
• Machine Weight: 485 lbs

Specifications

• Manufacturer: Quantum Machinery Group
• SKU: S 280 CSO
• Shipping Method: LTL Freight
• Weight: 510 lb
• Dimensions: 70 × 48 × 75 in
