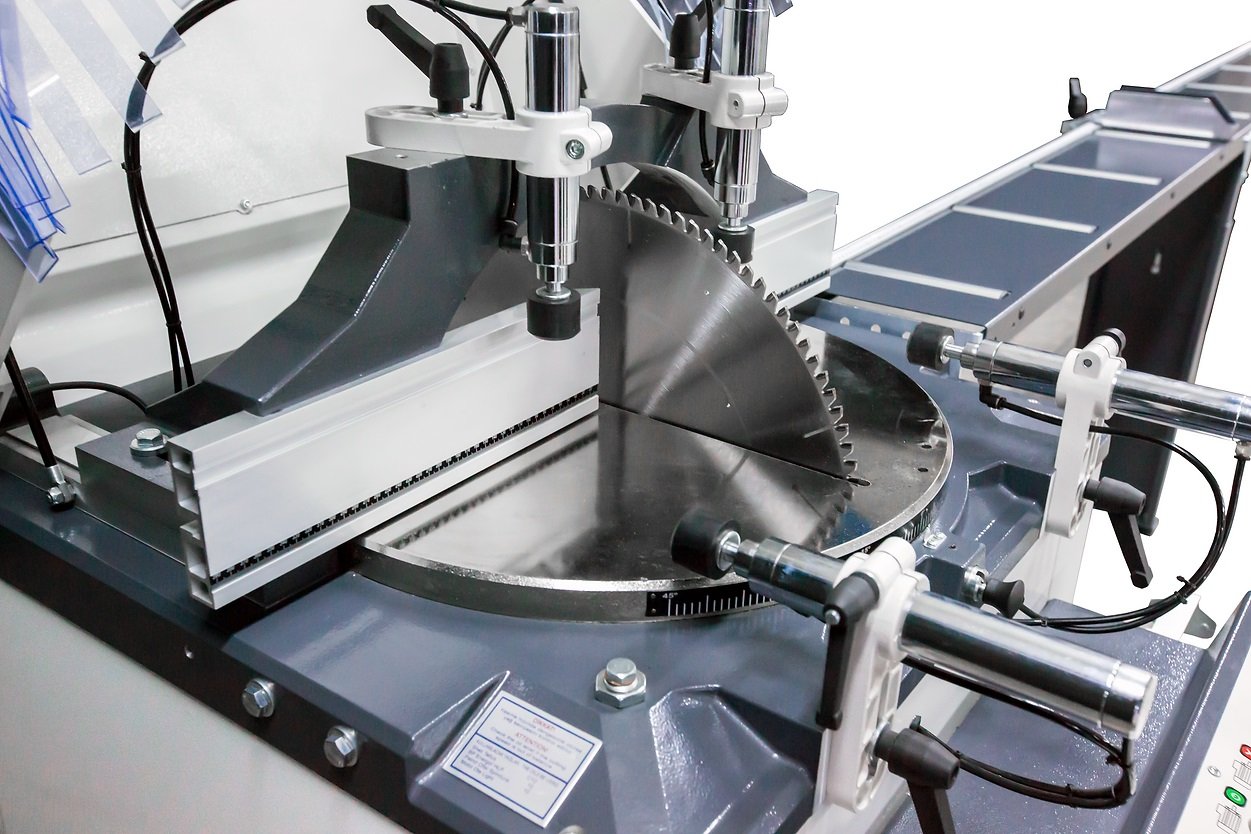

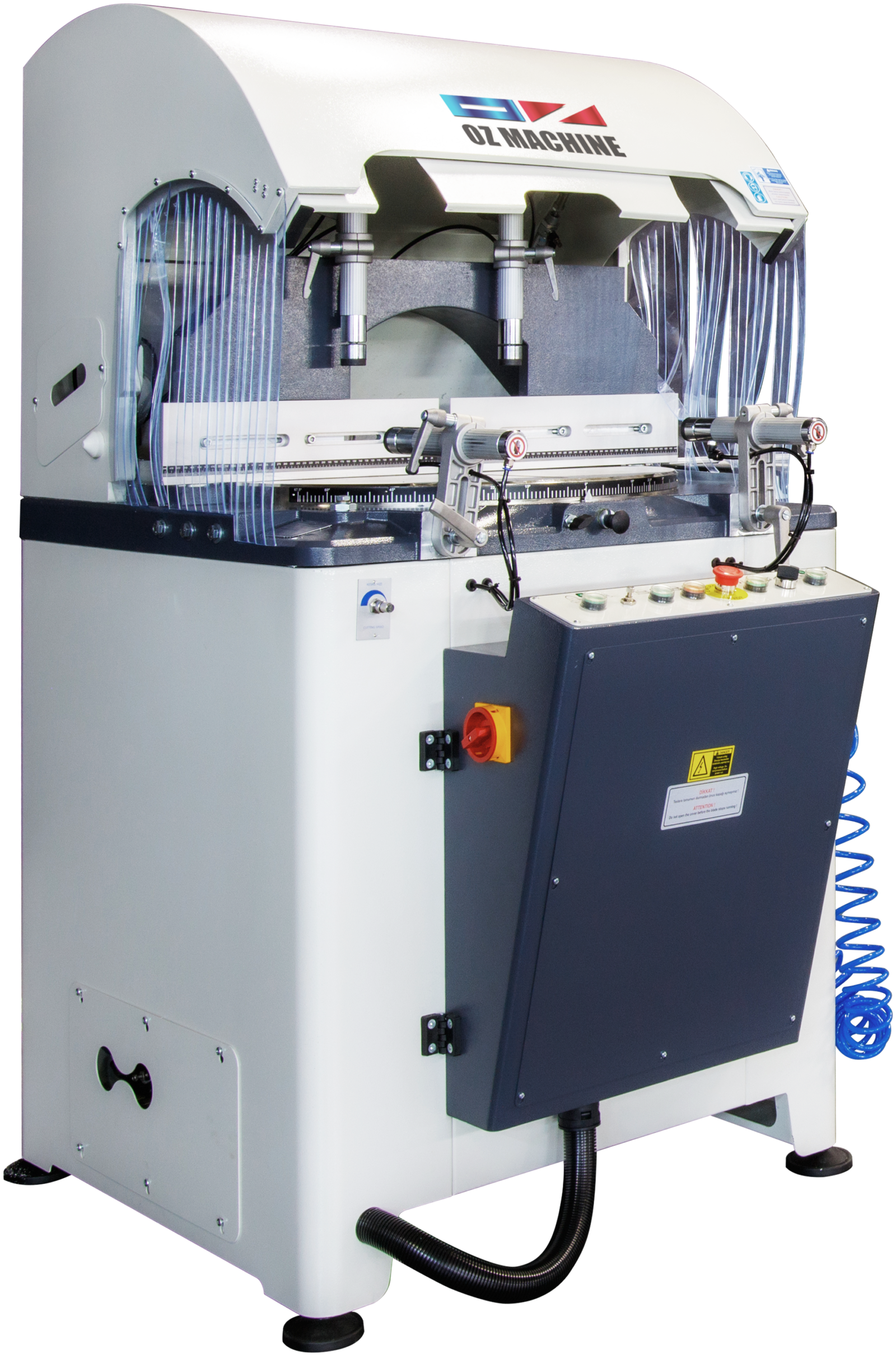

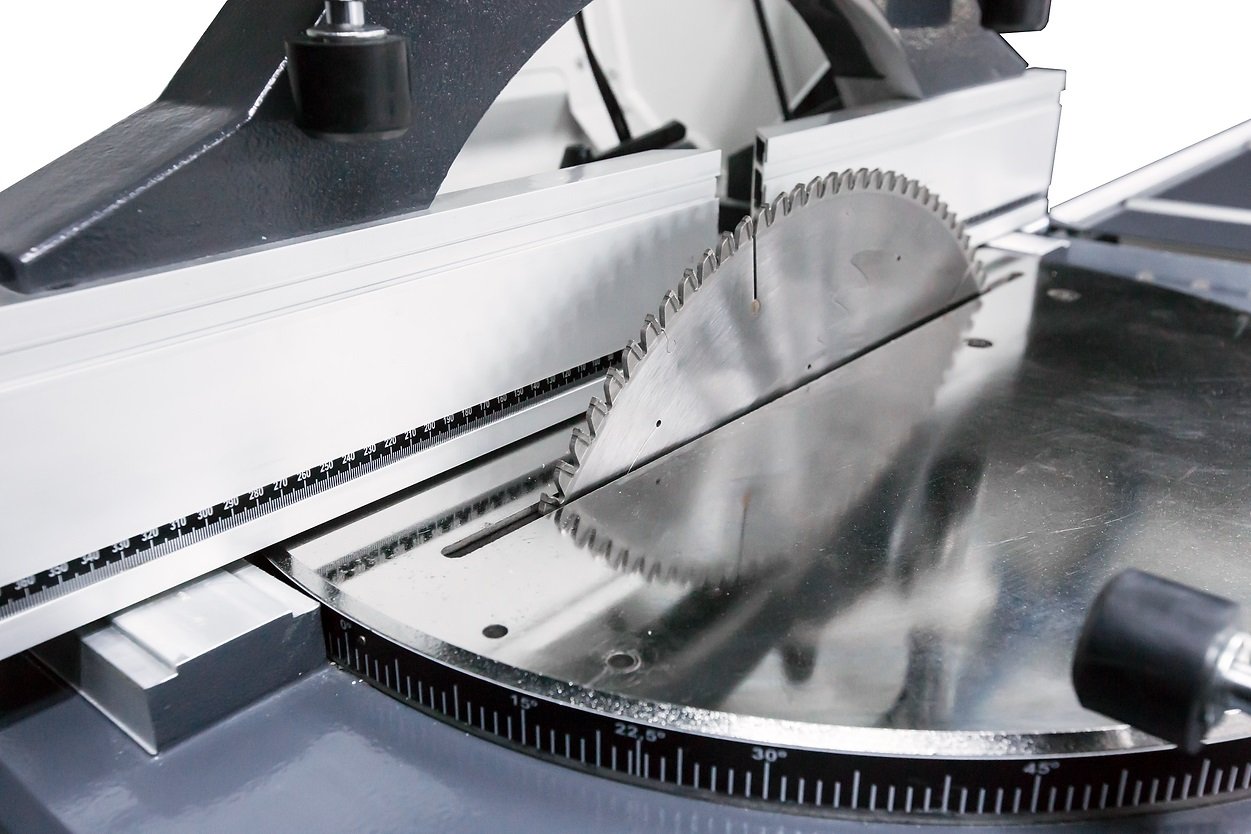

OZ Machine 220V 5.5HP 24” Automatic Cutting Machine with Upcut Saw METEOR – I 600

OZ Machine 220V 5.5HP 24” Automatic Cutting Machine with Upcut Saw METEOR – I 600 is a OZ Machine product in the Cold Saws collection.

Product Details

• RPM: 2900 / 2193
• Hz: 60
• Amp: 8.2
• Air Consumption: 15 Gal/min
• Features
• Used for cutting processes of aluminum, vinyl, and wooden profiles. Hydro-Pneumatic cutting process Secure cutting by the cover equipped with a safety sensor Cutting speed adjustment based on the profile Cutting at any desired angle between -90° and +45° Cutting at -67.5°, -45°, -30°, -22.5°, -15°, 0°, 15°, 22.5°, 30°, 45° right and left fixed angles Increase in cutting capacity with mobile miter Pneumatic vertical and horizontal clamps
• Hydro-Pneumatic cutting process
• Secure cutting by the cover equipped with a safety sensor
• Cutting speed adjustment based on the profile
• Cutting at any desired angle between -90° and +45°
• Cutting at -67.5°, -45°, -30°, -22.5°, -15°, 0°, 15°, 22.5°, 30°, 45° right and left fixed angles
• Increase in cutting capacity with mobile miter
• Pneumatic vertical and horizontal clamps
• Standard Equipment
• 24” saw blade
• Cooling system
• Specifications
• Blade: 24”
• HP: 5.5
• KW: 4
• Voltage: 220 V
• Air Pressure: 6-8 bar
• Weight: 734 lbs.
• Dimensions (L x W x H): 49” x 41” x 71”
• Options
• Conveyor
• Single-phase system
• Dust vacuuming system

Specifications

• Manufacturer: OZ Machine
• SKU: METEOR – I 600
• Shipping Method: LTL Freight
• Weight: 864 lb
• Dimensions: 54 × 46 × 76 in
• Country of Origin: Turkey
• Warranty: 1 Year (Parts)
