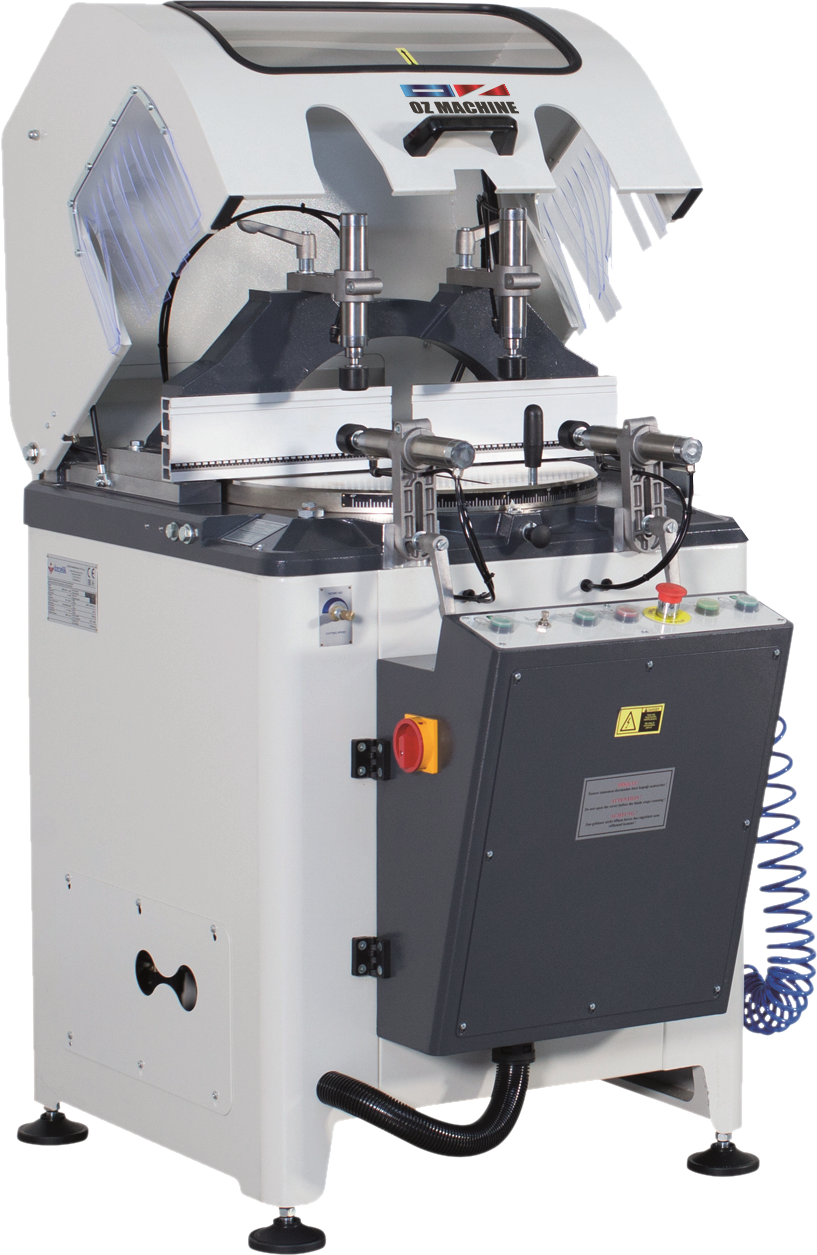

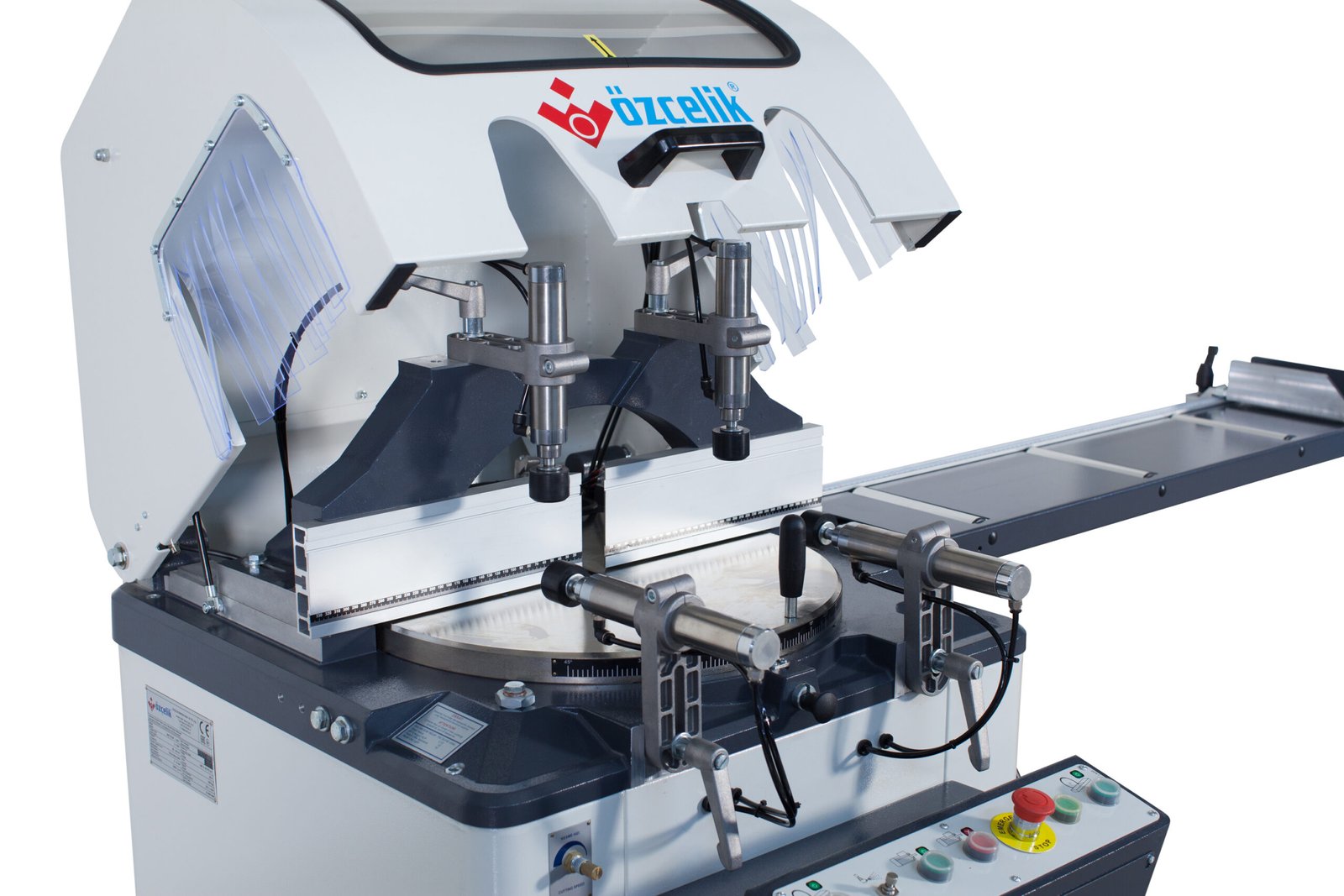

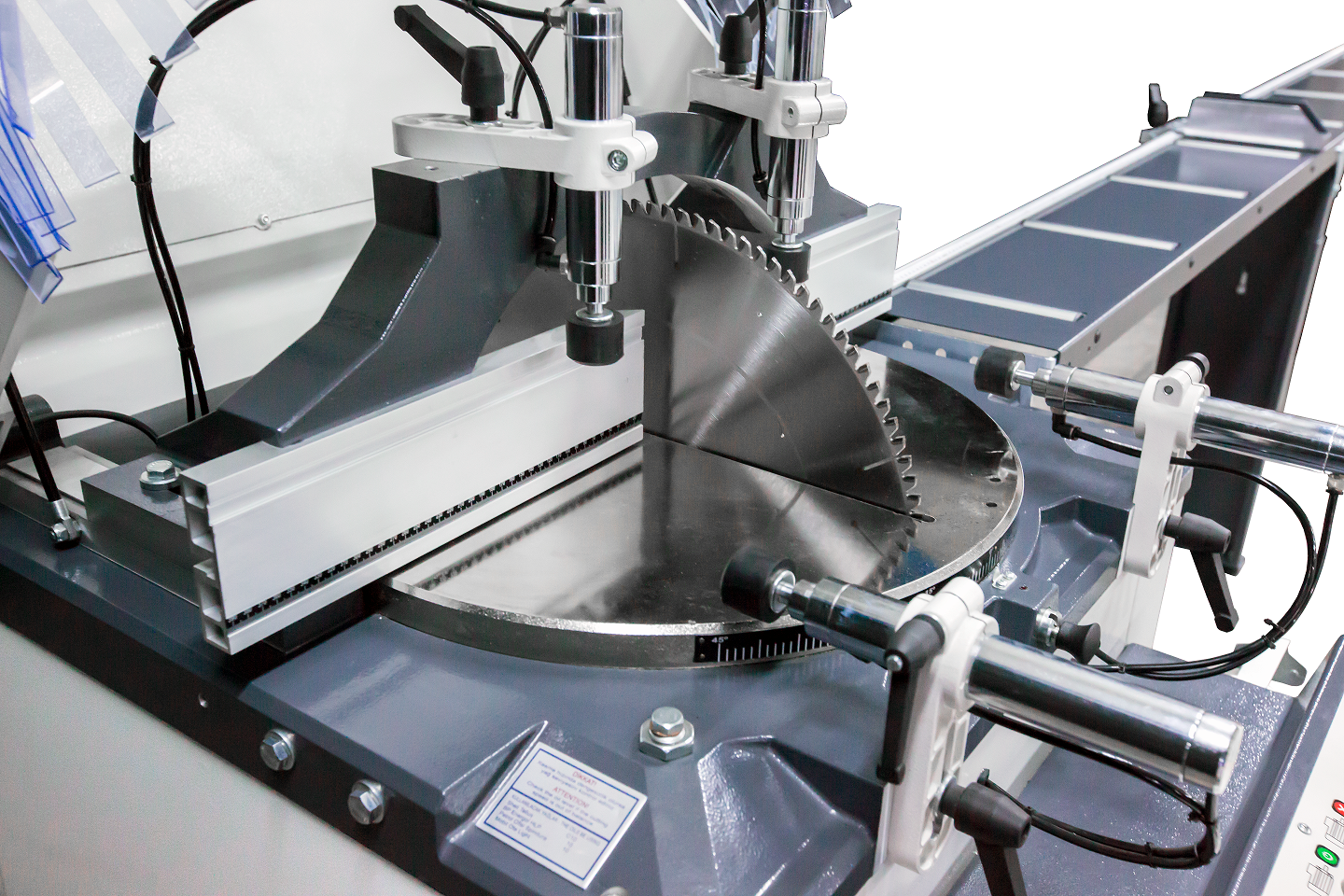

OZ Machine 220V 4HP 20” Automatic Cutting Machine with Upcut Saw METEOR – II 500

OZ Machine 220V 4HP 20” Automatic Cutting Machine with Upcut Saw METEOR – II 500 is a OZ Machine product in the Cold Saws collection.

Product Details

• KW: 3
• RPM: 3000 / 3580
• Amp: 15 A
• Air Consumption: 10 Gal/min
• Features
• Used for cutting processes of aluminum, vinyl, and wooden profiles. Hydro-Pneumatic cutting process Secure cutting by the cover equipped with a safety sensor Cutting speed adjustment based on the profile Cutting at any desired angle between -90° and +45° Cutting at -67.5°, -45°, -30°, -22.5°, -15°, 0°, 15°, 22.5°, 30°, 45° right and left fixed angles Shearing process via 180° rotary plate Increase in cutting capacity with mobile miter Pneumatic vertical and horizontal clamps
• Hydro-Pneumatic cutting process
• Secure cutting by the cover equipped with a safety sensor
• Cutting speed adjustment based on the profile
• Cutting at any desired angle between -90° and +45°
• Cutting at -67.5°, -45°, -30°, -22.5°, -15°, 0°, 15°, 22.5°, 30°, 45° right and left fixed angles
• Shearing process via 180° rotary plate
• Increase in cutting capacity with mobile miter
• Pneumatic vertical and horizontal clamps
• Standard Equipment
• 20” saw blade
• Cooling system
• Specifications
• Blade: 20”
• HP: 4
• Voltage: 220 V
• Air Pressure: 6-8 bar
• Weight: 485 lbs.
• Dimensions (L x W x H): 36” x 45” x 58”
• Options
• Conveyor
• Single-phase system
• Dust vacuuming system

Specifications

• Manufacturer: OZ Machine
• SKU: METEOR – II 500
• Shipping Method: LTL Freight
• Weight: 551 lb
• Dimensions: 41 × 50 × 63 in
• Country of Origin: Turkey
• Warranty: 1 Year (Parts)
