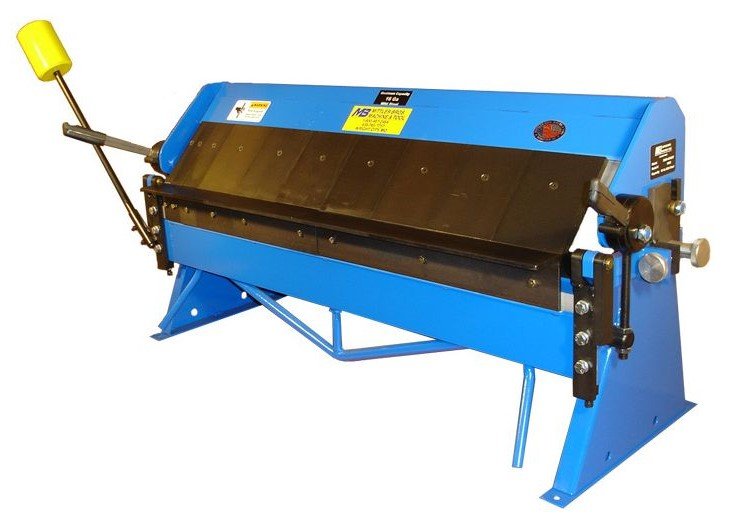

Mittler Bros 72” 18 Gauge Ultimate Box & Pan Brake with Floor Stand 2800-72-18

Mittler Bros 72” 18 Gauge Ultimate Box & Pan Brake with Floor Stand 2800-72-18 is a Mittler Bros product in the Sheet Metal Brakes collection.

Product Details

• Max Capacity: Aluminum 14 Ga, Mild Steel 18 Ga, Stainless 22 Ga
• Bending Length: 72” w/ 73” of Clearance
• 3-1/2" Depth of Box
• 125° Degree of Bend Max.
• Description

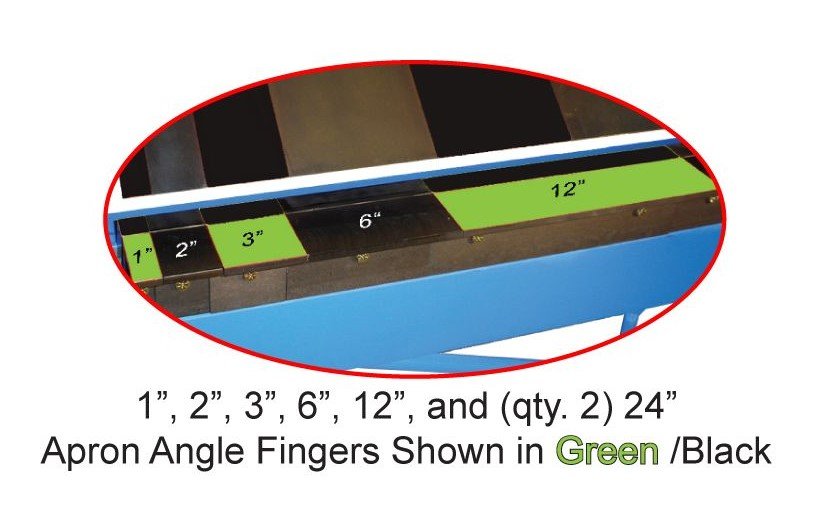

• The ULTIMATE Box & Pan Brake has a unique “3 Finger” design. This design incorporates moveable fingers on the bed and apron as well as the usual upper fingers. This design allows the operator to make bend combinations that were extremely difficult if not impossible before. The ULTIMATE Box & Pan Brake has wrenchless upper set back adjustments and is designed to bend 16 gauge mild steel the full width with the included apron angle fingers. A complete set of upper fingers, bed fingers, apron angle fingers, and counterweight are standard equipment
• Specifications
• Counterweight at each end of Apron
• Max. 1-1/2" Lift of Beam Max.
• 2" Down leg Max.
• Front to Rear Adjustment: 1"
• 1/4" Reverse Bend Min. (with 1/4" Apron Fingers)
• Max Capacity 18ga (.050") Mild Steel 22ga (.031") Stainless 14ga (.064") Aluminum
• 18ga (.050") Mild Steel
• 22ga (.031") Stainless
• 14ga (.064") Aluminum

Specifications

• Manufacturer: Mittler Bros
• SKU: 2800-72-18
• Shipping Method: LTL Freight
• Weight: 1,130 lb
• Dimensions: 91 × 35 × 44 in
• Country of Origin: United States of America
• Warranty: 1 Year (Parts)
