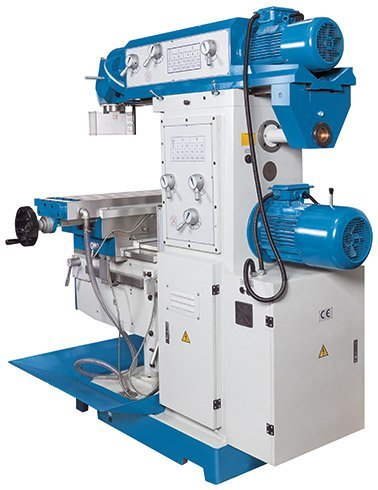

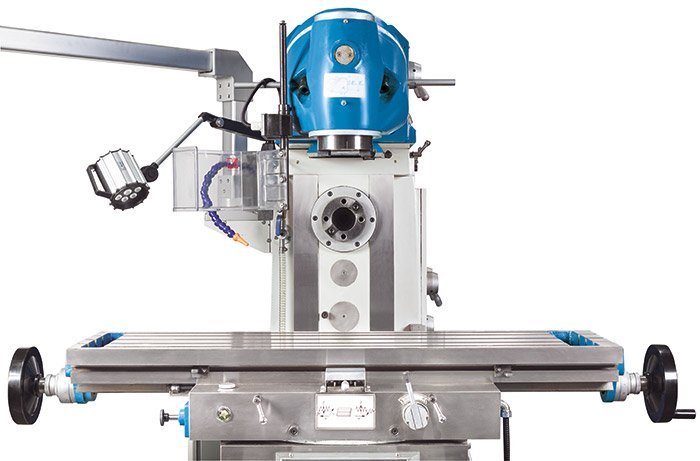

Knuth 7.4HP 52″x14″ Variable Speed UWF 5 Vertical Universal Milling Machine with Horizontal Spindle 362750

Knuth 7.4HP 52″x14″ Variable Speed UWF 5 Vertical Universal Milling Machine with Horizontal Spindle 362750 is a Knuth product in the Milling Machines collection.

Product Details

• Table dimensions: 52” x 14”
• Table load capacity (max.): 1,100 lbs.
• Motor rating horizontal spindle: 7.4 Hp
• Motor rating vertical spindle: 5.4 Hp
• Description
• This universal milling machine is one of the top models of the UWF series, which is characterized by a large work area, universal milling head and horizontal spindle. The more powerful drive, the increased speed range and the infinitely variable servomotor feed extend the application range of the UWF 5. Your milling head can be swiveled on two planes and the horizontal spindle has its own drive with a finely graduated gear shift. With its extensive equipment, this model is perfect for repair shops as well as training and production departments.
• Features
• Extremely rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing
• Precision-ground guideways with hardened surfaces for long term accuracy and wear resistance
• Large work area of 52 x 14 inch and up to 1102 lb table load capacity
• Quiet, precision-made headstock gears with hardened and ground gears
• Universal cutter head swivels on 2 planes – quick change-over from horizontal to vertical machining
• By combining both swivel levels, almost any angle can be set
• Powerful axis servo-motors allow infinite adjustment of feeds on all 3 axes
• Telescoping covers on the Y axis protect the feed spindle
• Control panel swings out to either side and features an integrated position indicator
• 7 HP main drive guarantees high torque
• Coolant system and chip tray are included
• 3-Axis Position Indicator
• More accuracy
• Lower error rate
• Increased productivity
• Resulting in valuable time savings
• For increased productivity
• Easy to read display
• Operator-specific features
• Convenient keyboard layout
• Resolution: 0.0004 / 0.0002"
• Default coordinates
• Axis position is maintained when display is turned off
• Hole circle pattern calculation
• Calculator function
• Storage for 10 tools
• Radius / diameter toggle
• Mm/inch conversion
• Easy expansion and maintenance-free operation
• Standard Equipment
• Reducing sleeve ISO 50 / MT4
• Milling arbors (1 in, 1.23 in)
• Outer arbor support for horizontal milling
• ISO 50 collet chucks incl. collets up to 0.6 inch (8 pieces)
• Coolant system
• Work lamp
• Chip tray
• Draw bar
• Operating tools
• Operator instructions
• Specifications
• Working Area Number of T-slots: 3 positions Table dimensions: 52” x 14” Table load capacity (max.): 1,100 lbs. T-slot (width x spacing): 0.71" x 3.15"
• Number of T-slots: 3 positions
• T-slot (width x spacing): 0.71" x 3.15"
• Travels Travel X-axis: 29.5” Travel Y-axis: 11” Travel Z-axis: 15”
• Travel X-axis: 29.5”
• Travel Y-axis: 11”
• Travel Z-axis: 15”
• Milling Head Speed range: 60 rpm – 1750 rpm Spindle mount: ISO 50 Swivel angle: 360° Upper beam travel: 22” Spindle center-to-table distance: 7” – 22”
• Speed range: 60 rpm – 1750 rpm
• Spindle mount: ISO 50
• Swivel angle: 360°
• Upper beam travel: 22”
• Spindle center-to-table distance: 7” – 22”
• Rapid Feed Rapid feed X-axis: 47.24”/min Rapid feed Y-axis: 31.5”/min Rapid feed Z-axis: 23.62”/min
• Rapid feed X-axis: 47.24”/min
• Rapid feed Y-axis: 31.5”/min
• Rapid feed Z-axis: 23.62”/min
• Horizontal Milling Spindle Spindle speed (horizontal): 60 rpm – 1800 rpm Spindle mount: ISO 50 Throat: 15” – 37”
• Spindle speed (horizontal): 60 rpm – 1800 rpm
• Throat: 15” – 37”
• Feed Feed speed X-axis: 1.1811”/min – 29.5275”/min Feed speed Y-axis: 1”/min – 20”/min Feed speed Z-axis: 0.5906”/min – 14.7638”/min
• Feed speed X-axis: 1.1811”/min – 29.5275”/min
• Feed speed Y-axis: 1”/min – 20”/min
• Feed speed Z-axis: 0.5906”/min – 14.7638”/min
• Drive Capacity Motor rating X axis feed: 2 Hp Motor rating Z axis feed: 2 Hp Motor rating coolant pump: 0.1 Hp Motor rating horizontal spindle: 7.4 Hp Motor rating vertical spindle: 5.4 Hp Motor rating Y axis feed: 2 Hp
• Motor rating X axis feed: 2 Hp
• Motor rating Z axis feed: 2 Hp
• Motor rating coolant pump: 0.1 Hp
• Motor rating Y axis feed: 2 Hp
• Measures and Weights Overall dimensions (length x width x height): 71” x 83” x 79” Weight: 6,270 lbs.
• Overall dimensions (length x width x height): 71” x 83” x 79”
• Weight: 6,270 lbs.
• Options
• 103184 – Coolant Concentrate 5 Ltr.
• 103331 – Pivoted Mounts LK 5
• 104918 – Machine vise with pull-down system NZM 125
• 104955 – MS 125 Machine Vise
• 105340 – Step of Step Blocks
• 105305 – Deluxe Clamping Tool Set 18/M16
• 107800 – Indexable Insert End Mills Set 0.98 in
• 108930 – Assembly Stand
• 110953 – Dividing head HT
• 110960 – Divider ST 130
• 110970 – Optional Accessory Set / ST 130
• 125024 – HS 125 Hydraulic Machine Vise
• 125805 – INDEX-feature / RT 160-320
• 125820 – Tailstock / RT 200/250
• 125835 – Rotary Table RT 200

Specifications

• Manufacturer: Knuth
• SKU: 362750
• Shipping Method: Flatbed
• Weight: 6,470 lb
• Dimensions: 76 × 88 × 84 in
• Country of Origin: China
