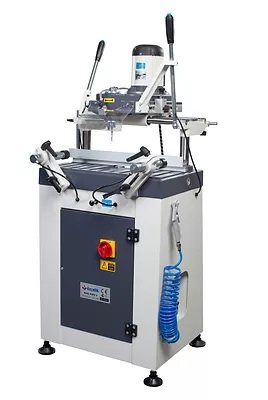

OZ Machine 220V 1.5HP Copy Router Machine GALAXY – I

OZ Machine 220V 1.5HP Copy Router Machine GALAXY – I is a OZ Machine product in the Milling Machines collection.

Product Details

• KW: 1.1
• RPM: 3000
• Hz: 60
• Amp: 6.5
• Features

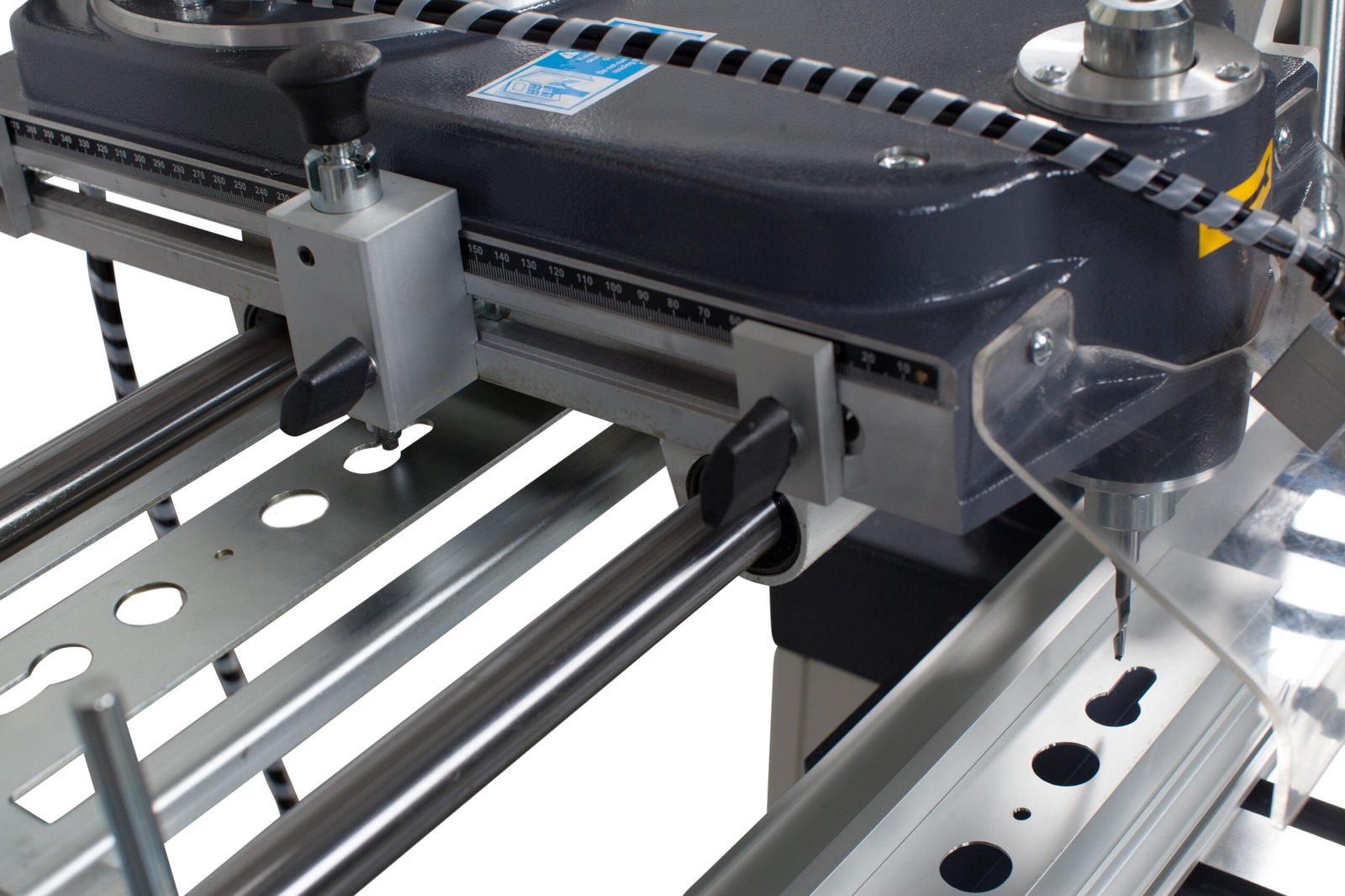

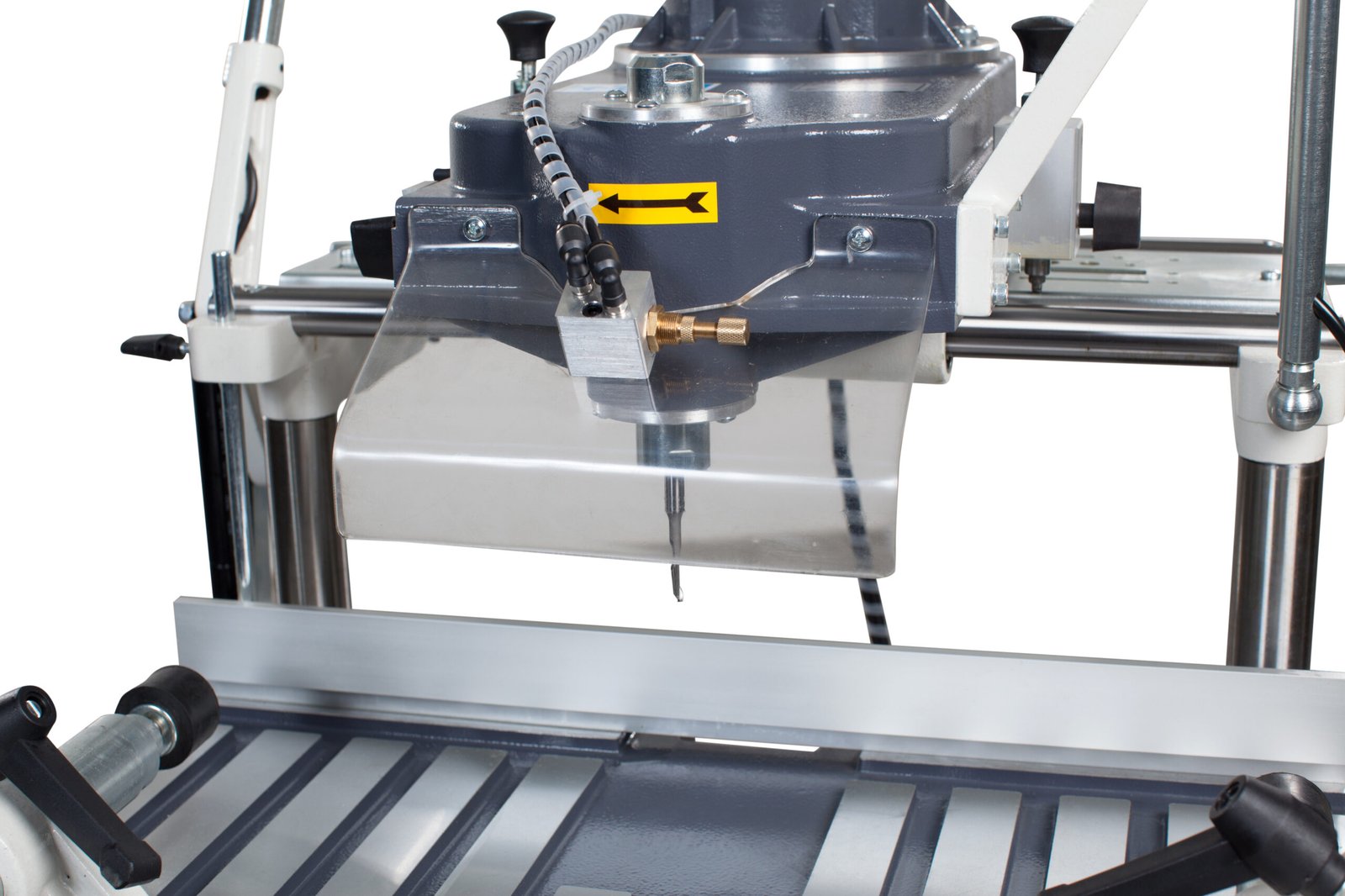

• Used for cutting appropriate slots on aluminum and vinyl profiles for mounting locks, grips, hinges, latches, and opening channels. Copy assembly matching the process Ability to open various channels independently of the copy assembly with profile gauges Pneumatic clamps
• Copy assembly matching the process
• Ability to open various channels independently of the copy assembly with profile gauges
• Pneumatic clamps
• Standard Equipment
• 0.2 inch milling cutter (1 pcs)
• Cooling system
• Profile gauge
• Specifications
• HP: 1.5
• Voltage: 220 V
• Air pressure: 6-8 bar
• Air consumption: 1.3 Gal / min
• Weight: 227 lbs.
• Dimensions (L x W x H): 30” x 26” x 60”
• Options
• Special copy assembly
• Single-phase system
• 5/16” (8mm) milling cutter

Specifications

• Manufacturer: OZ Machine
• SKU: GALAXY – I
• Shipping Method: LTL Freight
• Weight: 300 lb
• Dimensions: 35 × 31 × 65 in
• Country of Origin: Turkey
• Warranty: 1 Year (Parts)
