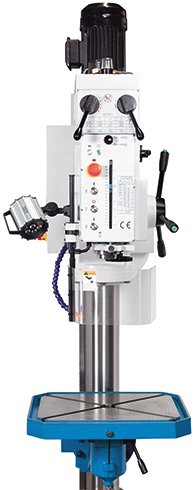

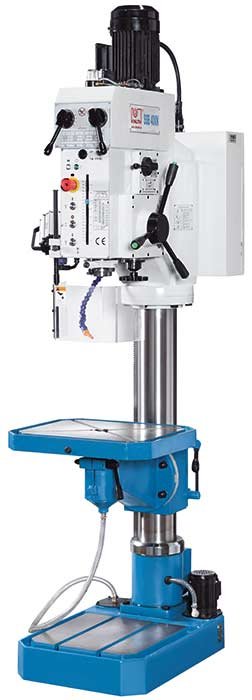

Knuth 2HP 1.57″ SSB 40 Xn Column Drill Press 162339

Knuth 2HP 1.57″ SSB 40 Xn Column Drill Press 162339 is a Knuth product in the Drill Presses collection.

Product Details

• Drilling capacity: 1.57”
• Table set up area: 21” x 17”
• Table load capacity: 330 lbs.
• 5 Year Parts Warranty
• Description
• The drilling machines of the SSB Xn series are the right choice for every workshop, both for repair and production. These universal drilling machines have a thick-walled column, powerful drives and robust gearboxes for spindle and feed. The large work area and the large universal clamping tables allow easy handling and processing of small workpieces, but also large and heavy parts and assemblies. With its proven reliability, this series has been one of Knuth’s best-selling solutions for more than 20 years.
• Features
• Heavy cast-iron construction with thick-walled column
• Tapping feature
• Automatic drill feeds controlled by an electromagnetic clutch
• Includes coolant system and work lamp
• Table rotates and swivels ±45°
• Standard Equipment
• Tapping unit
• Protective shield
• LED work lamp
• Coolant system
• Operating tools
• Operator manual
• Specifications
• Working Area Drilling capacity : 1.57” Table set up area: 21” x 17” Table load capacity: 330 lbs. Tapping capacity, steel: M24 null Throat: 13” Spindle nose-to-table surface distance: 24” Table swivel range (max.): ± 45° null Quill stroke: 7” Column diameter: 6” Spindle nose-to-foot distance: 47” Head swivel range: – null Table stroke: 22”
• Tapping capacity, steel: M24 null
• Throat: 13”
• Spindle nose-to-table surface distance: 24”
• Table swivel range (max.): ± 45° null
• Quill stroke: 7”
• Column diameter: 6”
• Spindle nose-to-foot distance: 47”
• Head swivel range: – null
• Table stroke: 22”
• Headstock Spindle mount: MT 4 null Spindle speed: 75 rpm – 2.020 rpm Spindle speed-stages: 12
• Spindle mount: MT 4 null
• Spindle speed: 75 rpm – 2.020 rpm
• Spindle speed-stages: 12
• Feed Quill feeds: 0.005; 0.01; 0.02”/R
• Quill feeds: 0.005; 0.01; 0.02”/R
• Drive Capacity Motor rating main drive: 2 Hp
• Motor rating main drive: 2 Hp
• Measures and Weights Overall dimensions (length x width x height): 38” x 25” x 88” Weight: 1,210 lbs.
• Overall dimensions (length x width x height): 38” x 25” x 88”
• Weight: 1,210 lbs.
• Options
• 104594 – Accessory-Set MT 4 8-pc.
• 104845 – Vise PB 120
• 105295 – Clamping Tool Set De Luxe 14/M12
• 103184 – Coolant Concentrate 5 Ltr.
• 103402 – Universal Facing / Lathe Bore Head ADA / MT 4
• 108633 – Lathe Bore Head with Boring Bar Set 3” 12 pcs.
• 108641 – Mounting Shaft MT 4
• 103330 – Pivoted Mounts LK 3
• 103820 – Reduction Sleeve MT 4/1
• 103825 – Reduction Sleeve MT 4/2
• 103830 – Reduction Sleeve MT 4/3
• 104670 – Extension Sleeve MT 4/5
• 104695 – Taper Drift MT 4/5
• 104745 – Tool Holder Bit MT4 / B16
• 104750 – Tool Holder Bit MT4 / B18
• 104765 – Keyless Drill Chuck 0.04-0.5” B 16
• 104770 – Keyless Drill Chuck 0.12-0.63” B 18
• 106035 – Tapping Attachment M5 – M12 (MT3 + MT4)
• 106037 – Tapping Attachment M8 – M20 (MT3 + MT4)
• 107615 – HSS Form Countersing Set round 0.08 – 0.47”
• 107617 – HSS Form Countersing Set round 0.24 – 0.79”
• 108631 – Lathe Bore Head with Boring Bar Set 2” 9 pcs.
• 108655 – Combo Flat Counter Sink
• 108665 – Counter-Sink 90°
• 125006 – Drill Press quick-action machine vise with V-guides PBS 140
• 125007 – Drill Press quick-action machine vise with V-guides PBS 200
• 125031 – UMS 140

Specifications

• Manufacturer: Knuth
• SKU: 162339
• Shipping Method: LTL Freight
• Weight: 1,410 lb
• Dimensions: 43 × 30 × 93 in
• Warranty: 5 Years (Parts)
