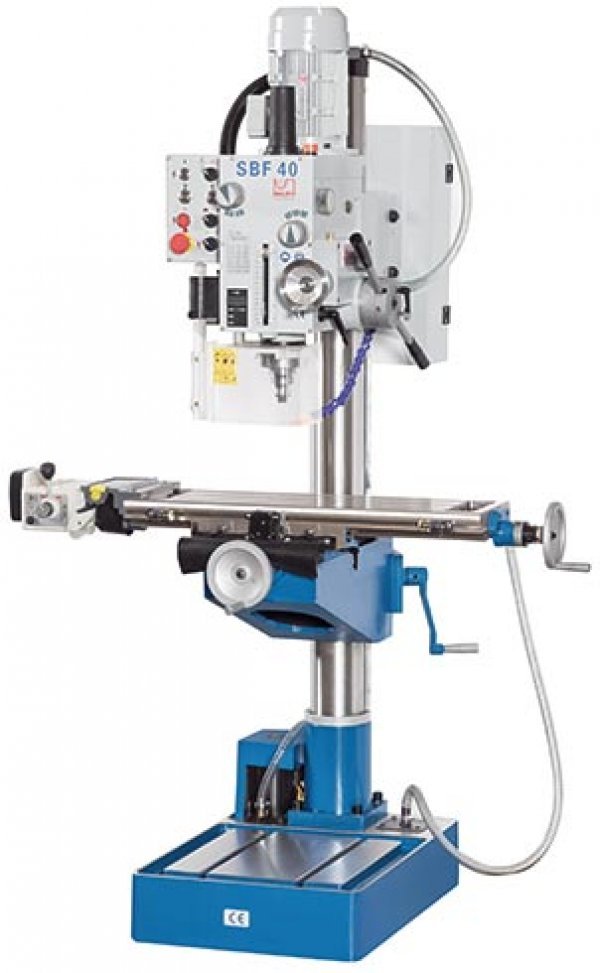

Knuth 2HP 29”x8” SBF 40 TV 1000 Vertical Drilling and Milling Machine 101573

Knuth 2HP 29”x8” SBF 40 TV 1000 Vertical Drilling and Milling Machine 101573 is a Knuth product in the Drill Presses collection.

Product Details

• Main motor rating: 2 HP
• Drilling capacity in steel/ST37: 2”
• Table load capacity (max): 220 lbs
• Throat: 11”
• Description
• The SBF is a drilling and milling machine in the best way. It is ideal as a drill with a powerful drive and a wide speed range. You can also use this machine to mill steel and non-ferrous metals. This makes the SBF 40 a drill with additional benefits at an unbeatable price.
• Features
• Drilling and Milling – a true added value for a low price
• Large compound sliding table with automatic infinitely variable feed on X-axis for coordinate drilling and light milling work
• Quiet operation with oil-bath lubricated gears for long tool life and durability
• The milling machine’s high-quality spindle bearing can withstand higher loads for the long term
• Manual drill feed can be switched to high-precision feed via a hand-wheel
• Controllable automatic feed with 3 gears steps
• Adjustable height of gear head and table
• Table guides are adjustable with high-precision via taper gibs
• Gear head swivels to both sides
• Cutter mounts are secured by a drawbar
• Tapping feature

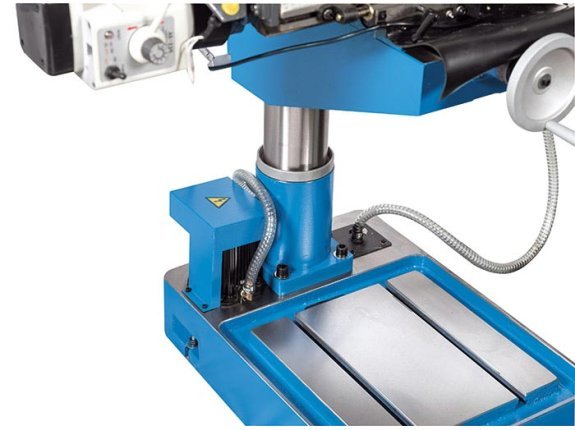

• Integrated coolant system
• Standard Equipment
• Thread cutting function

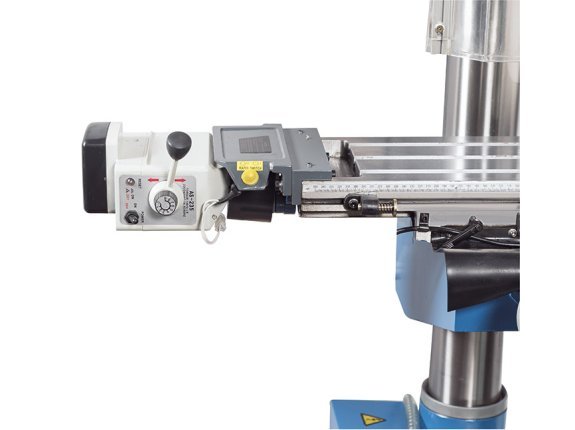

• Table feed TV 1000
• Draw bar
• Drill chuck
• Tool-holder bits
• Coolant system
• Operator manual
• Specifications
• Working Area Table set up area: 29” x 8” Table load capacity (max): 220 lbs Number of table T-slots: 3 positions T-slot table (width x spacing): 0.55” x 2.48” T-slot foot (qty): 2 positions T-slot foot (width x spacing): 0.55” x 7.87” Quill stroke: 5” Throat: 11” Column diameter: 5” Spindle nose-to-table surface distance: 24” Spindle nose-to-foot distance: 46” Drilling capacity in steel/ST37: 2” Head swivel range: ± 45° Tapping capacity, steel: (ST 37) M16
• Table set up area: 29” x 8”
• Number of table T-slots: 3 positions
• T-slot table (width x spacing): 0.55” x 2.48”
• T-slot foot (qty): 2 positions
• T-slot foot (width x spacing): 0.55” x 7.87”
• Quill stroke: 5”
• Column diameter: 5”
• Spindle nose-to-table surface distance: 24”
• Spindle nose-to-foot distance: 46”
• Head swivel range: ± 45°
• Tapping capacity, steel: (ST 37) M16
• Travels Travel X-axis: 19.7” Travel Y-axis: 7” Z1 / Z2 axis travel: 21”
• Travel X-axis: 19.7”
• Travel Y-axis: 7”
• Z1 / Z2 axis travel: 21”
• Headstock Speed range: 75 rpm – 3200 rpm Spindle mount: 4 MT
• Speed range: 75 rpm – 3200 rpm
• Spindle mount: 4 MT
• Rapid Feed 24”/min
• 24”/min
• Feed Work feed: 0”/min – 17”/min
• Work feed: 0”/min – 17”/min
• Drive Capacity Main motor rating: 2 HP Motor Main Drive, Continuous Load: 1.58 HP
• Motor Main Drive, Continuous Load: 1.58 HP
• Measures and Weights Overall Dimensions (LxWxH): 33” x 30” x 73” Weight: 858 lbs
• Overall Dimensions (LxWxH): 33” x 30” x 73”
• Weight: 858 lbs
• Optional Accessories
• 103184 – Coolant concentrate 5 ltr
• 103402 – Universal facing/lathe bore head ADA/MT4
• 103820 – Reduction sleeve MT 4/1
• 103825 – Reduction sleeve MT 4/2
• 103830 – Reduction sleeve MT 4/3
• 103860 – Shell end milling arbor Ø16 MT 4
• 103861 – Shell end milling arbor Ø22 MT 4
• 103594 – Accessory set for drilling MT4, 8pc
• 104670 – Extension sleeve MT 4/5
• 104695 – Taper drift MT 4/5
• 104745 – Tool holder bit MT4 / B16
• 104750 – Tool holder bit MT4 / B18
• 104765 – Keyless drill chuck 0.04-0.5” B16
• 104770 – Keyless drill chuck 0.12-0.63” B18
• 104920 – Machine vise with pull-down system NZM160
• 104960 – MS160 machine vise
• 106035 – Tapping attachment M5-M20 (MT3+ MT4)
• 106037 – Tapping attachment M8-M20 (MT3 + MT4)
• 106052 – ER32 collet set 6 pcs
• 106075 – ER40 collet set 15 pcs
• 106058 – ER32 collet chuck/mount MT4
• 106064 – Er40 collet chuck/mount MT4
• 107615 – Quarter circle cutter – set 0.08-0.47”
• 107617 – Quarter circle cutter – set 0.24”-0.79”
• 108400 – Roughing end mill cutter 40
• 108401 – Roughing end mill cutter 50
• 108440 – End milling set HSS TiN
• 108445 – Roughing shank cutter 10 pcs
• 108631 – Lathe bore head with boring bar set 2 in 9 pcs
• 108633 – Lathe bore head with boring bar set 3 in 12 pcs
• 108641 – Mounting shank for reaming head 1.97/2.95”, MT4
• 108655 – Combo flat counter sink
• 108665 – Counter-sink set 90°
• 123040 – Power worker metal cutter
• 125007 – PBS200 machine vise
• 125032 – UMS200 machine vise

Specifications

• Manufacturer: Knuth
• SKU: 101573
• Shipping Method: LTL Freight
• Weight: 858 lb
• Dimensions: 33 × 30 × 73 in
• Country of Origin: Germany
