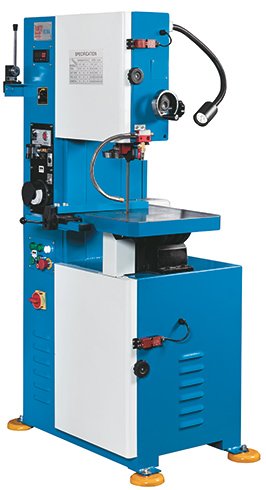

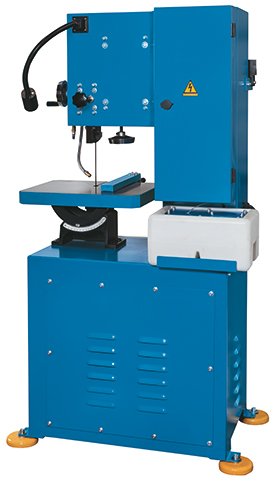

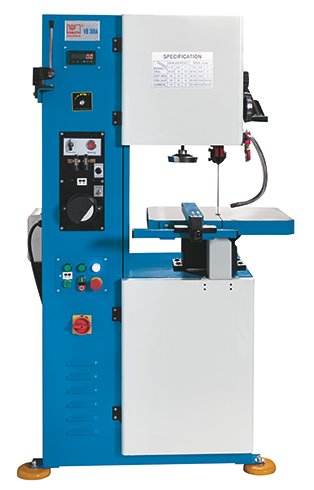

Knuth 0.7HP VB 300A Vertical Band Saw 102640

Knuth 0.7HP VB 300A Vertical Band Saw 102640 is a Knuth product in the Band Saws collection.

Product Details

• Blade width: 0.12” – 0.63”
• Blade length: 112.4” – 115.16”
• Cutting capacity height x throat: 7” x 12”
• Cutting speed: 621.3 fpm
• Description
• A vertical band saw is an asset to any workshop that processes steel. Sawing, notching, and separating external and internal contours – the models in the VB A series are designed for all-round use and are characterized by their rigid construction, stable worktable, and variable belt guides.
• Features
• The machine frame features a torsionally rigid steel construction for a robust and sturdy design
• Functional and practical design, plus easy handling are common features of this entire series
• The support table swivels to the right and left for angled cuts
• The saw blade speed is controlled electronically and shown on a large digital display
• The saw blade guides feature carbide jaws that can be adjusted exactly to different saw blade widths
• Drive gear and idler feature replaceable plastic covers
• Blade tensioning can be micro-adjusted via an accessible hand-wheel
• The standard micro-cooling spray increases saw blade life, saves machining time, and reduces cost
• Standard Equipment
• Saw blade welder assembly
• Saw blade shears
• Work lamp
• Saw-band
• Coolant system
• Adjustable table stop
• Operator instructions
• Specifications
• Working Area Table dimensions: 20” x 16” x 35” Table with angle adjustment (l/r): 15/45 deg
• Table dimensions: 20” x 16” x 35”
• Table with angle adjustment (l/r): 15/45 deg
• Cutting Capacities Cutting capacity height x throat: 7” x 12” Cutting speed: 621.3 fpm
• Drive Capacity Motor rating main drive: 0.7 Hp Motor rating grinding: 0.1 Hp Blade welder capacity: 2.4 kVA
• Motor rating main drive: 0.7 Hp
• Motor rating grinding: 0.1 Hp
• Blade welder capacity: 2.4 kVA
• Measures and Weights Overall dimensions (length x width x height): 36” x 33” x 63” Weight: 605 lbs. Blade width: 0.12” – 0.63” Blade length: 112.4” – 115.16”
• Overall dimensions (length x width x height): 36” x 33” x 63”
• Weight: 605 lbs.
• Options
• 109759 – Saw Blade / VB 300A & 360 (14 T/')
• 103184 – Coolant Concentrate 5 Ltr

Specifications

• Manufacturer: Knuth
• SKU: 102640
• Shipping Method: LTL Freight
• Weight: 655 lb
• Dimensions: 41 × 38 × 68 in
• Country of Origin: China
