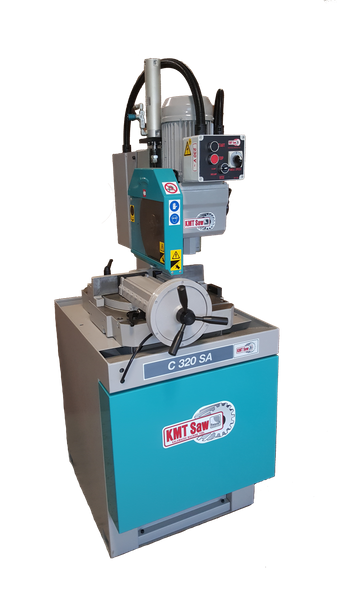

Kalamazoo Machine Tool Vertical Column Cold Saw KMT C 320 SA

Kalamazoo Machine Tool Vertical Column Cold Saw KMT C 320 SA is a Kalamazoo Machine Tool product in the Cold Saws collection.

Product Details

• Max Blade Diameter: 12.5"
• Spindle Diameter: 40 mm
• Capacity Round at 90 Deg: 4"
• Capacity Square at 90 Deg: 3.25"
• Description
• Model C 320 SA -Semi-automatic operation with simple economical controls. An air over hydraulic system provides optimum sawing rates with minimum effort by the operator. Optimum cutting rates are yielded with controls over the sawing pressure and sawing speed, and the air vise can be equipped with infinitely variable clamping pressure to prevent distortion of structurals. The C 320 SA Series features rugged heavy duty vertical column circular sawing machines with saw frame swiveling capability for mitering. The vertical column construction provides extremely stable saw frame guidance and stability, with vibration free sawing. The C 320 SA can be used for production of tubes and profiles and small solids. The machine can operate in a conventional 90° cutoff mode for conventional sawing, and with a simple turn of a locking lever, the saw frame can be swiveled to any desired angle up to 45° left or 60° right for miter sawing. The mitering device carries a highly visible scale, and comes equipped with a preset stop for accurately returning to zero.
• Standard Equipment
• Heavy Duty Drive, TEFC Motor
• 24 Volt Controls, Low Volt & OL Protection
• Height/Depth Cut Adjustments
• Hydraulic Oil
• Totally Enclosed Transmission
• Electricals to NFPA-79 Electrical Standards
• 24 Volt Controls
• HSS Sawblade
• Full coolant System
• Operators Tools
• All Safety Guards
• Variable Clamping Pressure (optional)
• Specifications
• Horsepower: 2.5 HP
• Spindle RPM (2-Speeds): 17 & 33
• Coolant Capacity: 5 Gallons
• Max Vise Opening: 7.125"
• Material Work Ht.: 36.25"
• Floor Footprint: 25" w x 31" deep
• Air Requirements: 60-100 psi, 2 cfm
• Shipping Weight: 900 lbs
• Round: Square | Rectangle
• 90 Deg: 4" | 3.25" | 3" x 5.75"
• 45 Deg Left: 4" | 3.25" | 3" x 4"
• 45 Deg Right: 4" | 3.25" | 3" x 4"
• 60 Deg Right: 3.5" | 3" | 2.75" x 4"

Specifications

• Manufacturer: Kalamazoo Machine Tool
• SKU: C 320 SA
• Shipping Method: LTL Freight
• Weight: 900 lb
• Country of Origin: Italy
• Warranty: 1 Year (Parts)
