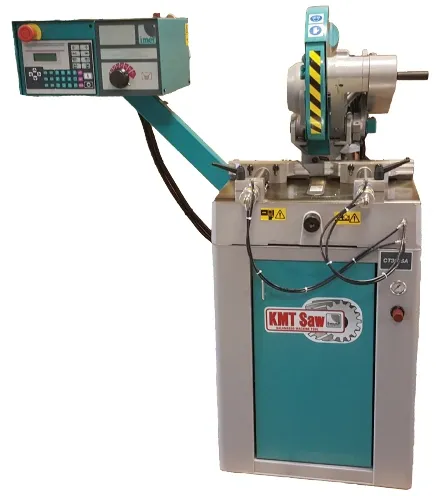

Kalamazoo Machine Tools 230V Three Phase 14” Semi-Automatic High-Speed Circular Saw CT 350 SA

Kalamazoo Machine Tools 230V Three Phase 14” Semi-Automatic High-Speed Circular Saw CT 350 SA is a Kalamazoo Machine Tool product in the Cold Saws collection.

Product Details

• Max Vise Opening: 8”
• Blade Size: 14”
• Round at 0°: 4 ½”
• Square at 0°: 4”
• Description
• The CT 300 Series Machines are high speed circular saws for aluminum extrusions and other non-ferrous materials. These machines feature swiveling capability for mitering and swiveling/tilting capability for compound mitering.
• Model CT 350 SA – Semi-Automatic operation, with air over hydraulic system providing optimum sawing rates with minimum effort by the operator. Optimum cutting rates are yielded with controls over the sawing pressure and sawing speed. Air vises are equipped with infinitely variable clam-ping pressure to prevent distortion of structurals.
• Standard Equipment
• One Carbide tipped saw blade
• Low voltage control
• TEFC 3-phase drive motor
• Spray Mist Coolant System
• Full Blade Guarding
• Operators Manual Parts List/Schematics
• Tool kit
• Specifications
• Blade Speeds (2): 1800 & 3600 rpm
• Motor: 2.5HP
• Electrical Requirements: 230V Three Phase
• Work Height: 34¼”
• Machine Dims (LxWxH): 36” x 43” x 64”
• Machine Weight: 700 lbs
• Miter Cut Specs
• Round 0°: 4 ½” 45° Right: 4 ½” 45° Left: 4 ½” 45° Vert Left: 2 ½”
• 0°: 4 ½”
• 45° Right: 4 ½”
• 45° Left: 4 ½”
• 45° Vert Left: 2 ½”
• Square: 0°: 4” 45° Right: 4” 45° Left: 4” 45° Vert Left: 2 ¼”
• Rectangle 0°: 3” x 7 ¾” 45° Right: 3” x 5 ¾” 45° Left: 3” x 5 ¾” 45° Vert Left: 2” x 7”
• 0°: 3” x 7 ¾”
• 45° Right: 3” x 5 ¾”
• 45° Left: 3” x 5 ¾”
• 45° Vert Left: 2” x 7”
• Optional Add-Ons
• AC200: 5’x15’ wide freestanding conveyor (additional 5’ sections can bolt together)
• AC250: 5’x15’ wide conveyor mounted to machine (additional 5’ sections can bolt together)
• AC102: 6’ worktable conveyor infeed/outfeed mounted to machine w/coolant tray
• AC103: additional 6’ connecting to AC102
• AC121: Top clamp
• AC132: Chip vac

Specifications

• Manufacturer: Kalamazoo Machine Tool
• SKU: CT 350 SA
• Shipping Method: LTL Freight
• Weight: 750 lb
• Dimensions: 40 × 48 × 70 in
• Country of Origin: Italy
• Warranty: 1 Year (Parts)
