Kalamazoo Machine Tool High Speed Circular Saw CT 350 AV

Kalamazoo Machine Tool High Speed Circular Saw CT 350 AV is a Kalamazoo Machine Tool product in the Cold Saws collection.

Product Details

• Max Vise Opening: 8"
• Blade Speeds: 1800 & 3600
• Round at 90 Deg: 4.75"
• Square at 90 Deg: 4.5"
• Description

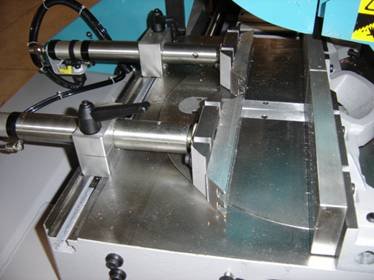

• The CT 350 Series machines are high speed circular saws for aluminum extrusions and other non-ferrous materials. These machines feature swiveling capability for mitering and swiveling/tilting capability for compound mitering. The machine operates manually with two quick clamping air vises. Do Not cut steel with this machine.
• Standard Equipment
• Heavy Duty Drive, TEFC Motor
• 24 Volt Controls
• Heavy Duty Drive
• Preset stops, 0,15,30,45 degrees
• Removable extruded special jaws
• Length stop assembly
• Carbide tipped Blade
• Built it spray mist coolant
• Operators Tools
• All Safety Guards
• Specifications
• Vises: Two Air Vises
• Blade Speeds (2): 1800 & 3600
• Blade Specifications: 14"
• Motor: Blade Drive – 2.5 HP
• Work Height: 34.25"
• Net Weight: 550 lbs
• Machine Dimensions
• Across Front: 32"
• Front to Back: 36"
• Height: 64"
• Round: Square | Rectangle
• 90 Deg: 4.75" | 4.5" | 3.5" x 7.5"
• 45 Deg Right: 4.5" | 4" | 2.75" x 5.9"
• 45 Deg Left: 4.5" | 4" | 2.75" x 5.9"
• 45 Deg Vert. Left: 3" | 2.75" | 2.75" x 7"

Specifications

• Manufacturer: Kalamazoo Machine Tool
• SKU: CT 350 AV
• Shipping Method: LTL Freight
• Weight: 550 lb
