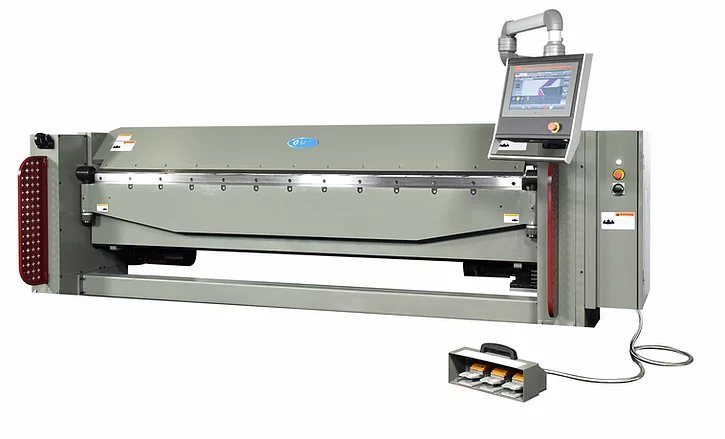

GMC Machinery 10’ x 14 Gauge CNC Folder with 48’ ISA Back Table Gauge EFM-1014CNC

GMC Machinery 10’ x 14 Gauge CNC Folder with 48’ ISA Back Table Gauge EFM-1014CNC is a GMC Machinery product in the Sheet Metal Brakes collection.

Product Details

• Capacity Mild Steel: 14 Ga
• Capacity Stainless Steel: 16 Ga
• Bending Length Capacity: 10’
• Max Table Back Gauge Distance: 48-3/8”
• Features
• ISO 9001 certified
• Designed in US and Taiwan quality Machine
• Meet OSHA and CE safety standard
• ESA CNC control, made in Italy
• 16” large Digital glass touch screen
• Max. 99 bends per program
• Up to 2000 Programs Storage
• Profiles library with graphics
• Programmable Radius Bend
• Programmable Angle/ Angle Correct
• 48” CNC back gauge with table and fingers
• Hardened nose bar and table, up to 48HRC
• Comes with one 1” Insert Bar and one ½” Insert Bar
• Yaskawa Servo motors and Drives
• Schneider electrical components
• All steel construction for maximum rigidity
• Safety type foot pedal with handle and E-stop switch
• Safety 24V low voltage & overload protection
• One year industrial warranty for parts
• Specifications
• Capacity Stainless Steel: 18 Ga
• Bending Length Capacity: 10’1"
• Bend Angle Degree Programmable: 0-135°
• Large Beam Opening/Clamping Opening: 4-7/8”
• Min Reverse Bend: ½”
• Min Table Back Gauge Distance: 1/2”
• Back Gauge Repeatability: 0.0039”
• Back Gauge Table Height: 35-3/4”
• Main Motor: 3 HP 220V 3-Phase
• Machine Weight: 9,850 lbs
• Machine Size LxWxH: 168 x 79 x 67
• *This model can use a phase converter, but it must be installed at GMC. This will come with an additional cost*

Specifications

• Manufacturer: GMC Machinery
• SKU: EFM-1014CNC
• Shipping Method: LTL Freight
• Weight: 10,150 lb
• Dimensions: 174 × 79 × 71 in
• Country of Origin: Taiwan
• Warranty: 1 Year (Parts)
