GMC Machinery 10’ x 14 Gauge CNC Folder and Box & Pan Brake EBB-1014CNC

GMC Machinery 10’ x 14 Gauge CNC Folder and Box & Pan Brake EBB-1014CNC is a GMC Machinery product in the Sheet Metal Brakes collection.

Product Details

• Bending length capacity: 10’1”
• Bend Angle Degree, programmable: 0- 135 degree
• Max depth of box or pan: 4”
• Large Beam Opening/clamping opening: 4-7/8”
• Features
• ISO 9001 certified
• Designed in US and Taiwan quality Machine
• Meet OSHA and CE safety standard
• ESA S840 CNC control, made in Italy
• 16” large Digital glass touch screen
• Max. 99 bends per program
• Upto 2000 Programs Storage
• Profiles library with graphics
• Programmable Radius Bend
• Programmable Angle/ Angle Correct

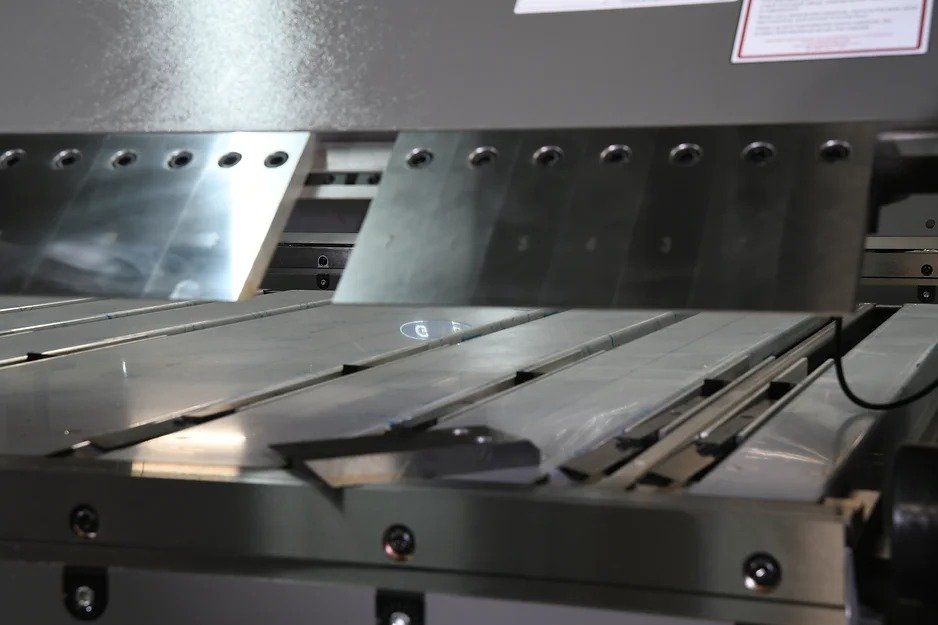

• 48” CNC back gauge with table and fingers
• One piece 10' long straight finger
• Comes with one 1” Insert Bar and one ½” Insert Bar
• Yaskawa Servo motors and Drives
• Schneider electrical components
• All steel construction for maximum rigidity
• Safety type foot pedal with handle and E-stop switch
• Safety 24V low voltage & overload protection
• Power supply is 220V, 3 phase or 208V, 3 phase
• One year industrial warranty for parts
• Specifications
• Capacity Mild Steel: 14Ga Stainless Steel: 18Ga Close hemming with one piece finger: 26Ga Open hemming: 24Ga
• Mild Steel: 14Ga
• Stainless Steel: 18Ga
• Close hemming with one piece finger: 26Ga
• Open hemming: 24Ga
• Min. Reverse Bend: 1/2”
• Max. Table Back Gauge Distance: 48-3/8”
• Min. Table Back Gauge Distance: 1/2”
• Back Gauge Repeatability: 0.0039”
• Back Gauge Table height: 35-3/4”
• Motor for bending leaf: 4HP, 220V,3phase
• Servo motor for back gauge: 2HP ,220V, 3phase
• Clamping motor: 1-1/2HP , 220V, 3phase
• Amperage Draw: 35A
• Machine weight: 9,850 lbs
• Shipping weight: 10,150 lbs
• Machine dimensions: 168”x79”x67”
• Shipping dimensions: 174”x80”x71”
• Options
• One day on-site training
• Digital phase convertor PTE010 for 220v 1PH to 220v 3PH

Specifications

• Manufacturer: GMC Machinery
• SKU: EBB-1014CNC
• Shipping Method: LTL Freight
• Weight: 10,150 lb
• Dimensions: 174 × 80 × 71 in
• Country of Origin: Taiwan
• Warranty: 1 Year (Parts)
