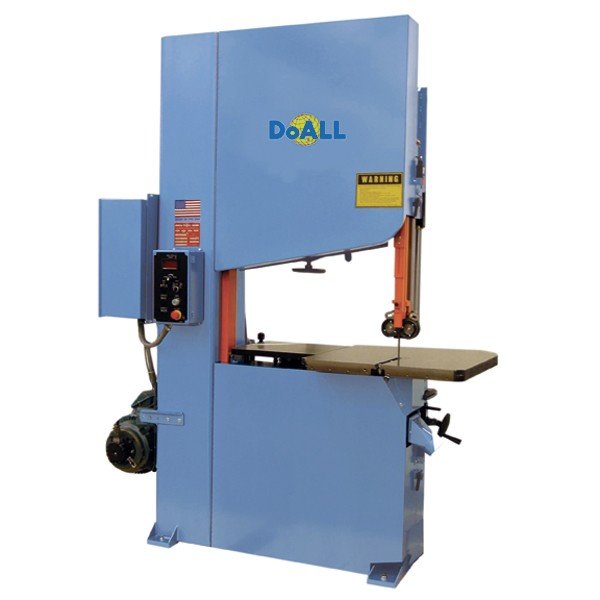

DoALL Vertical Contour Band Saw ZV-3620

DoALL Vertical Contour Band Saw ZV-3620 is a DoALL Sawing Products product in the Band Saws collection.

Product Details

• Machine Capacity: 36" x 15"
• Production Level: High
• Table: 30" x 36"
• Throat, Band to Column: 35-1/4"
• Description
• The DoALL Zephyr™ high velocity band saw machine features production cutting rates up to 30 times faster than conventional band saws. The ZV-3620 has a 15-hp AC inverter band drive with soft motor start and dynamic braking system. With speeds of 1,000 to 4,000 fpm, 4,000 to 8,000 fpm, or 10,000 to 15,000 fpm, this is the ideal saw for friction cutting applications.
• Standard Equipment
• Job selector
• One friction saw band
• Dust spout for exhaust connection
• Spark guard
• Parts and instruction manuals
• Roller bearing tapered spindles
• Band speed indicator
• Wrench for saw guides
• Band tension indicator
• Specifications
• Band Saw Blade: 1/8"-1"
• Band Speed: 1,000-15,000 fpm
• Band Drive: 15 hp
• Maximum Work Height: 20"
• Saw Band Length: 232-240"
• Table: 30" x 36" ; Tilt 45°R, 10°L
• Upper Wheel Adjustment: 3"
• Wheels: Balanced 36" diameter cast aluminum with replaceable crowned rubber tires
• Weight: 3000 lbs
• Floor Space Required: 52-1/2" x 80"

Specifications

• Manufacturer: DoALL Sawing Products
• SKU: ZV-3620
• Shipping Method: Flatbed
• Weight: 4,500 lb
• Dimensions: 55 × 103 × 80 in
• Country of Origin: United States of America
