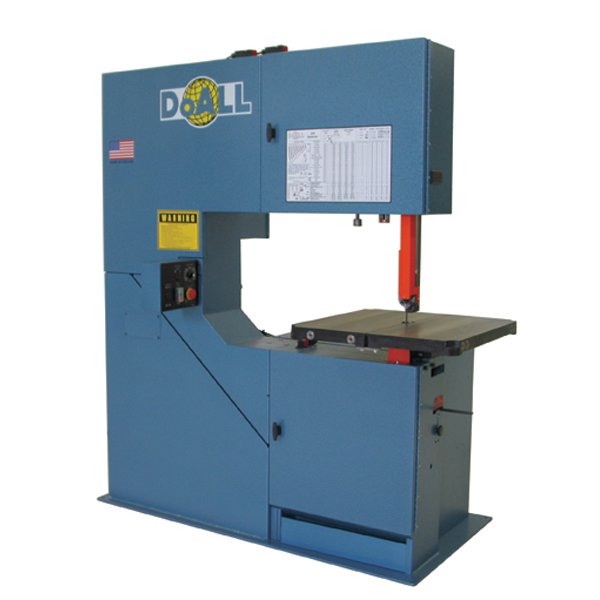

DoALL Vertical Contour Band Saw 3613-V5

DoALL Vertical Contour Band Saw 3613-V5 is a DoALL Sawing Products product in the Band Saws collection.

Product Details

• Machine Capacity: 36" x 13"
• Production Level: Low
• Throat band to column: 36"
• Table Size: 26" x 26"
• Description
• The DoALL 3613-V5 vertical contour band saw features a variable frequency 5 hp (3.75 kW) AC inverter drive controls that start the motion of the band wheels slowly to reduce mechanical shock and increase drive train life, plus a dynamic braking function that rapidly stops motion when power is shut-off. The 3613-V5 medium production, upright metal cutting band saw is widely used in locations that cut a large variety of materials.
• Standard Equipment
• One set of high-speed, insert-type guide blocks for bands 1/8″ through 1/2″
• One set of steel guide inserts for bands 1/4″, 3/8″ and 1/2″
• Job selector
• Band speed indicator reading in fpm
• Band tension indicator
• Manual post elevating
• Variable frequency AC drive
• Removable chip drawer
• Wrench for saw guides
• Wrench for table trunnion
• Operation and service on CD
• One bi-metal saw blade
• Specifications
• Cutting Capacity at 90° Rectangle: 13"
• Cutting Capacity at 90° Round: 36"
• Band width capacity: 1/8" – 1"
• Saw band length: 199"
• Variable band speed: 550-5,500 fpm
• Table Tilt: 45° right and 10° left
• Material Pass Line Height: 39"
• AC drive motor: 5 hp
• Table capacity: 500 lbs
• Wheels: 20" Aluminum with crowned rubber tires
• Upper wheel adjustment: 3"
• Floor Space Required: 74" x 45" x 81-1/2"
• Weight: 1550 lbs

Specifications

• Manufacturer: DoALL Sawing Products
• SKU: 3613-V5
• Shipping Method: Flatbed
• Weight: 1,900 lb
• Dimensions: 88 × 54 × 86 in
• Country of Origin: United States of America
