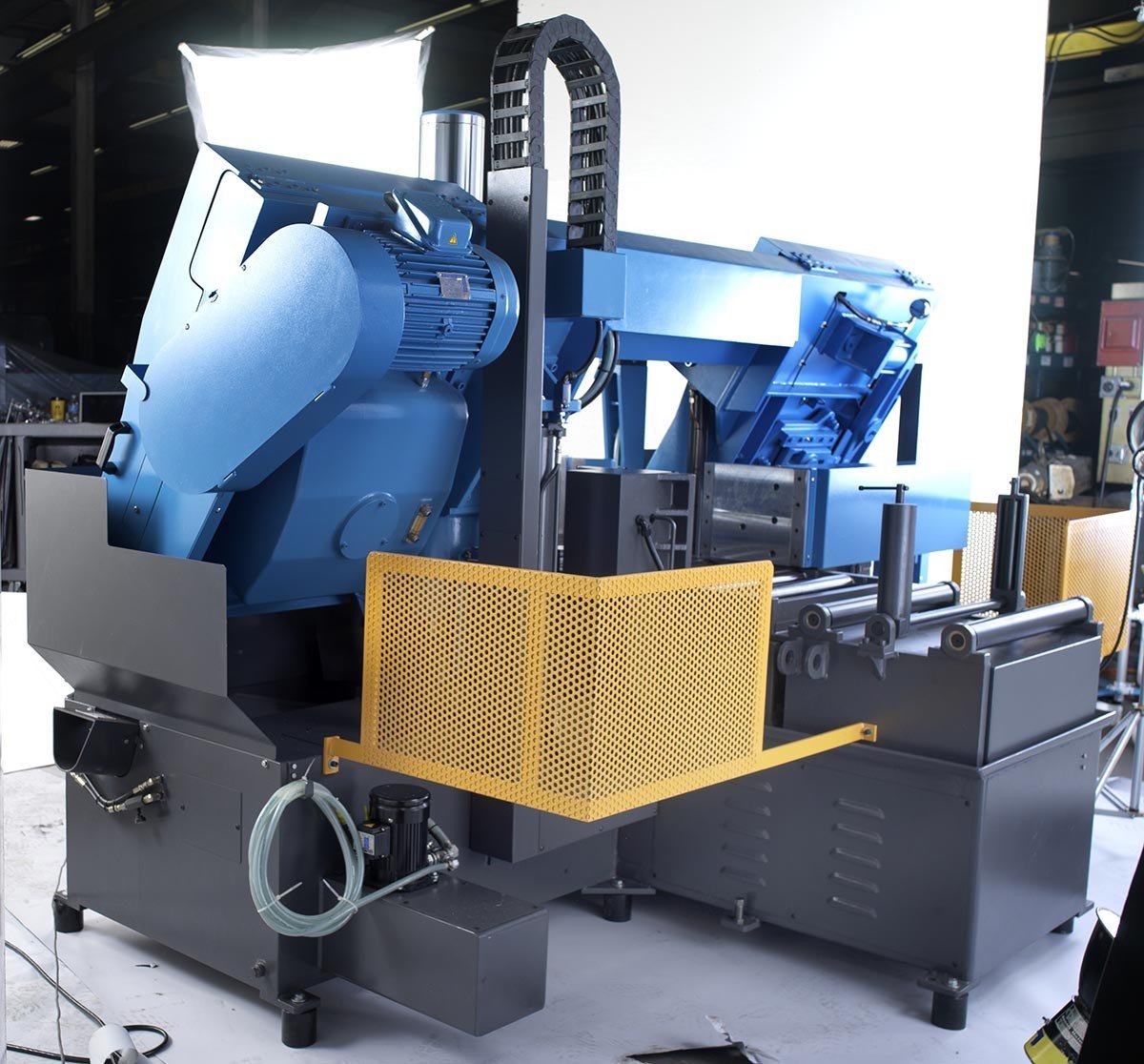

DoALL Production Band Saw DC-560NC

DoALL Production Band Saw DC-560NC is a DoALL Sawing Products product in the Band Saws collection.

Product Details

• Machine Capacity: 24" x 22"
• Cutting Capacity Round: 22"
• Production Level: High
• Band Speed: 72 – 390 SFPM
• Description
• The DC-560NC Continental Series™ high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. They offer automatic operation, numerical control and feature solid heavy-duty construction. This provides more rigidity and reduces vibration for higher cutting rates, exceptional accuracy, superior surface finish and increased blade life.
• Standard Equipment
• PLC control for all electric and hydraulic functions
• Infinitely variable speed controlled by VFD
• Hydraulic retractable shuttle vise material indexer
• Rapid and creep speed index vise control
• Multi-step full stroke vises with split front vise and variable vise pressure control
• Spring loaded, zero clearance, coolant through, carbide faced saw guide with lead-in rollers
• Power driven, coolant flushed, blade cleaning wire brush
• Flushing hose and auxiliary coolant nozzles
• Hydraulic blade tension
• Automatic chip conveyor
• Blade breakage/stall motion detector shut off switch
• Band door interlocks
• Work lamp
• One 6.5 ft. (2M) conveyor
• Set up tools and tool box
• Complimentary DoALL Cutting Fluids package
• One DoALL bi-metal saw blade
• Specifications
• Cutting Capacity Rectangle: 23.6" x 22"
• Band Saw Blade: 2" x 260"
• Band Drive: 10 HP
• Hydraulic Pump: 3 HP
• Hydraulic Tank Capacity: 34 Gal.
• Coolant Tank Capacity: 37 Gal.
• Automatic Index Length Single: 15.75"
• Automatic Index Length Multiple: 141.73"
• Material Pass Line Height: 33-1/2"
• Machine Weight: 9260 lbs

Specifications

• Manufacturer: DoALL Sawing Products
• SKU: DC-560NC
• Shipping Method: Flatbed
• Weight: 10,780 lb
• Dimensions: 135 × 90 × 89 in
• Country of Origin: United States of America
