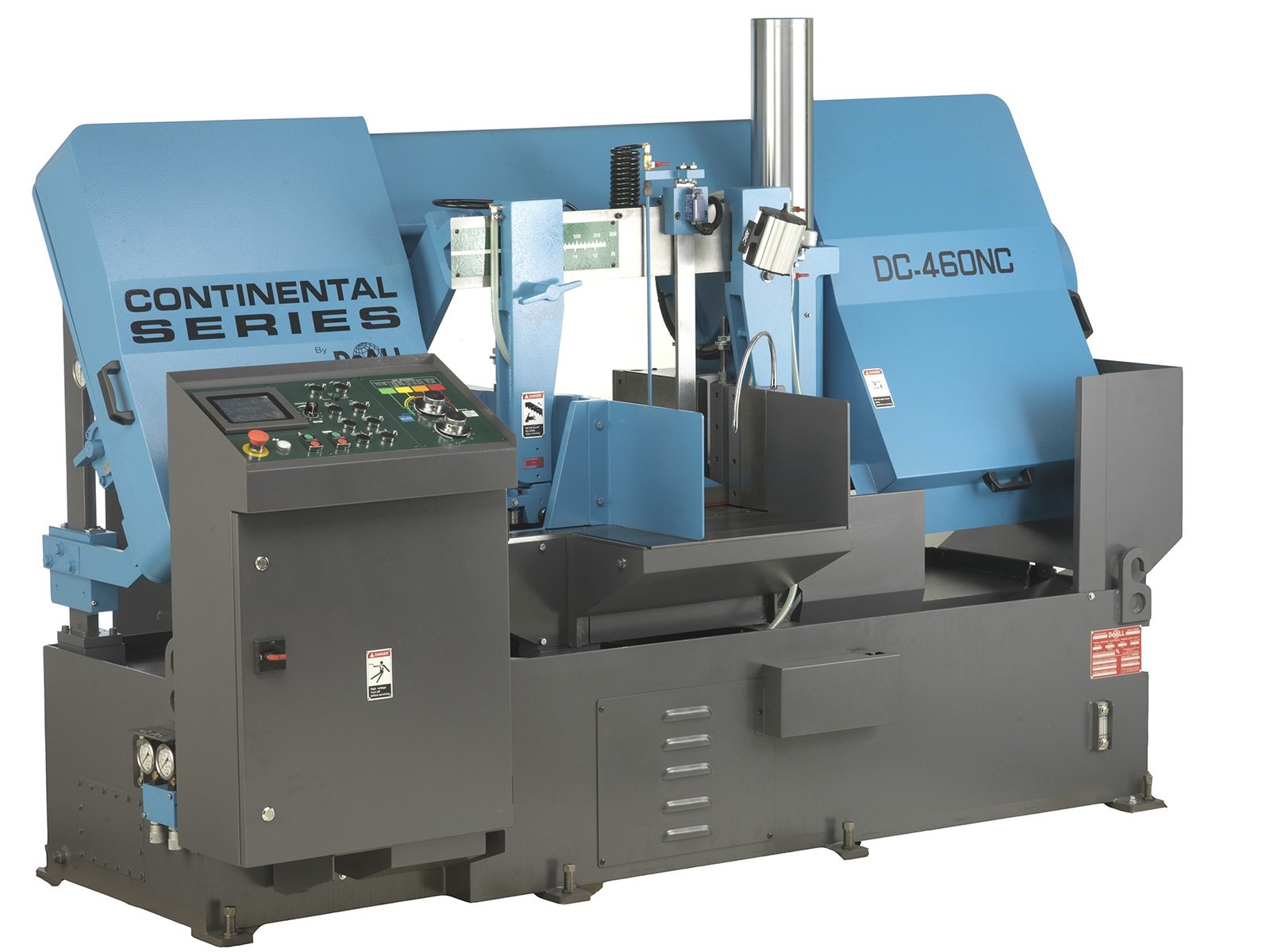

DoALL Production Band Saw DC-460NC

DoALL Production Band Saw DC-460NC is a DoALL Sawing Products product in the Band Saws collection.

Product Details

• Machine Capacity: 20" x 18"
• Production Level: High
• Band Speed: 72 – 390 fpm
• Automatic Index Length Single: 19.68"
• Description
• The DC-460NC Continental Series™ of high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. They offer automatic operation, numerical control and feature solid heavy-duty construction. This provides more rigidity and reduces vibration for higher cutting rates, exceptional accuracy, superior surface finish and increased blade life.
• Standard Equipment

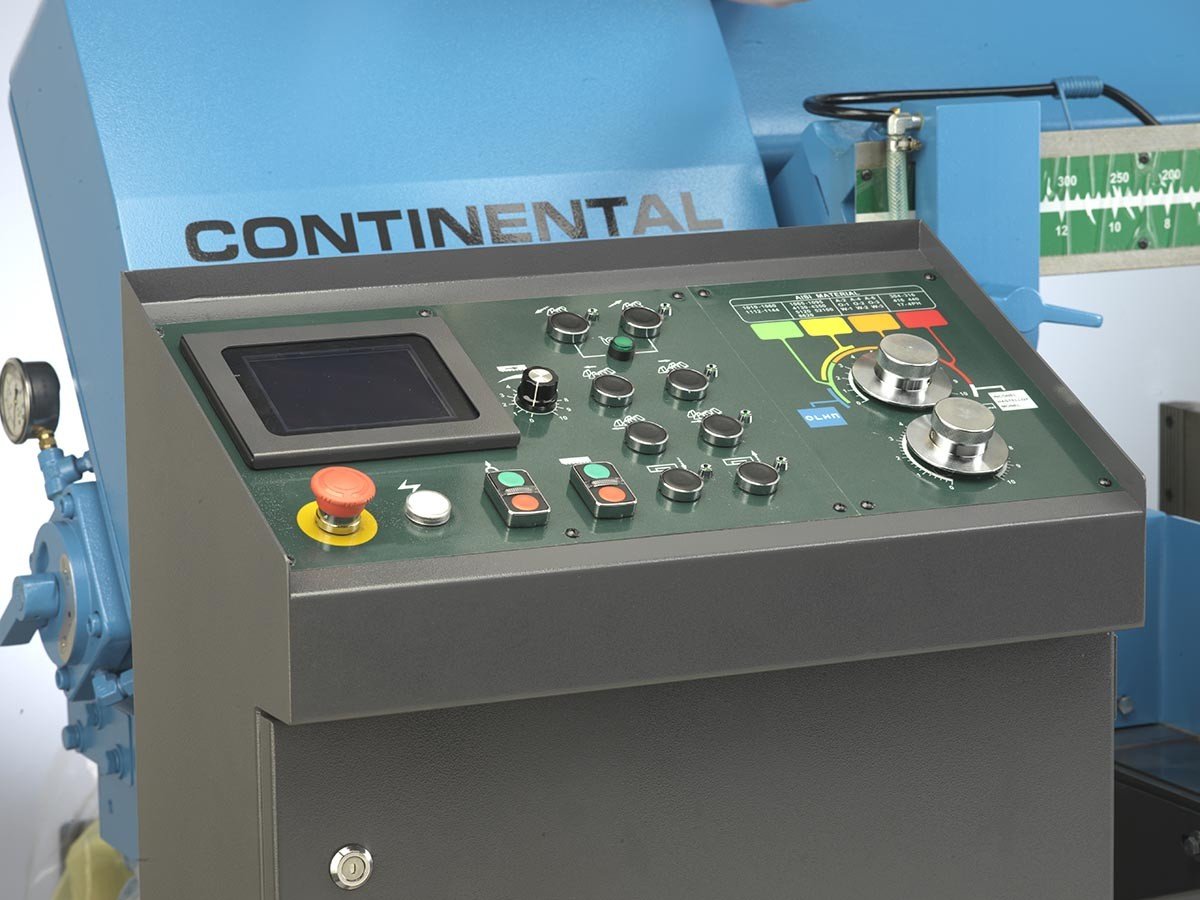

• PLC control for all electric and hydraulic functions
• Infinitely variable speed controlled by VFD
• Hydraulic retractable shuttle vise material indexer
• Rapid and creep speed index vise control
• Multi-step full stroke vises with split front vise and variable vise pressure control
• Nesting fixture for bundle cutting

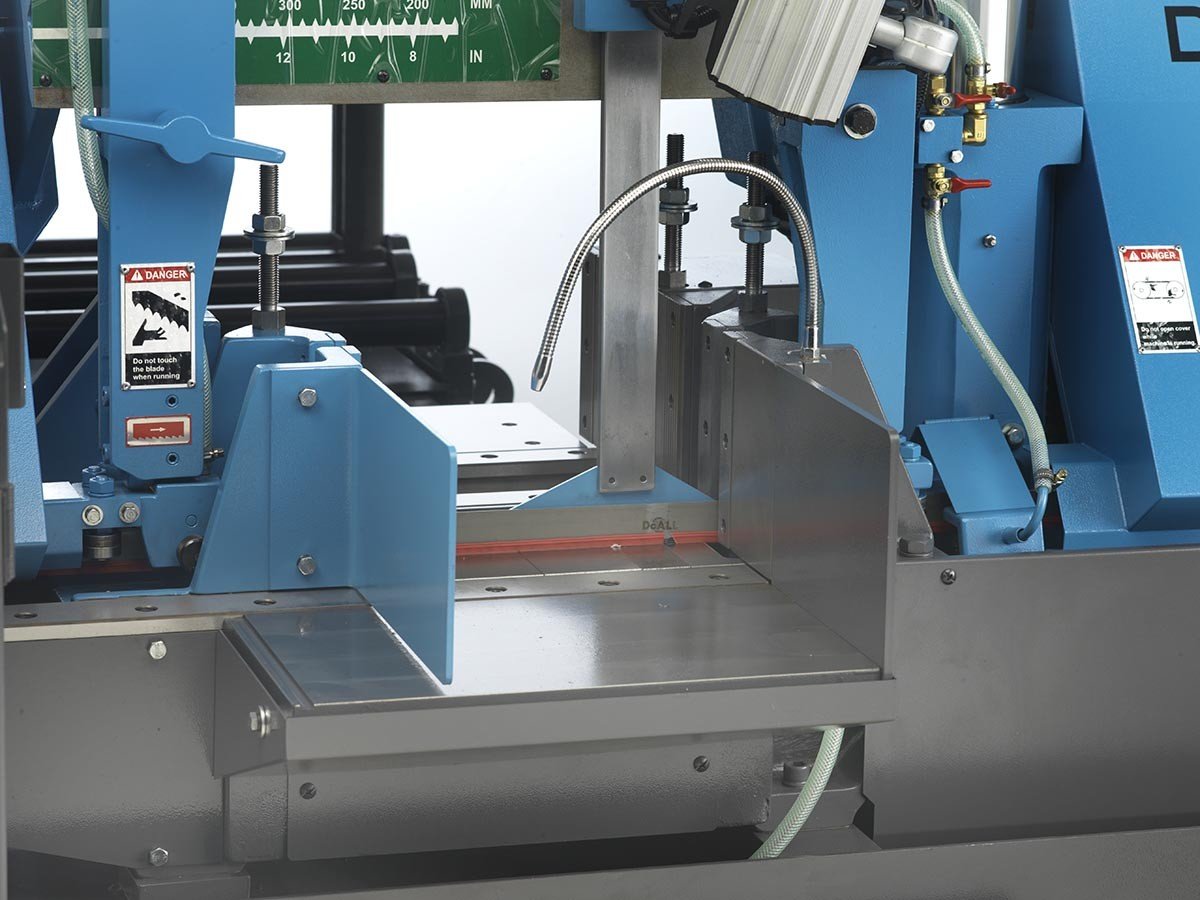

• Spring loaded, zero clearance, coolant through, carbide faced saw guide with lead-in rollers
• Power driven, coolant flushed, blade cleaning wire brush
• Flushing hose and auxiliary coolant nozzles
• Hydraulic blade tension
• Automatic chip conveyor
• Blade breakage/stall motion detector shut off switch
• Band door interlocksDC-460
• Work lamp
• One 6 ½ ft. (2M) conveyor
• Set up tools and tool box
• Complimentary DoALL Cutting Fluids package
• One DoALL bi-metal saw blade
• Specifications
• Cutting Capacity Round: 18"
• Cutting Capacity Rectangle: 20" x 18"
• Bundle Capacity Maximum (WxH): 18.88" x 9.75"
• Bundle Capacity Minimum (WxH): 9.38" x 3-1/4"
• Band Saw Blade: 1-1/2" x 209"
• Band Drive: 10 HP
• Hydraulic Pump: 2 HP
• Hydraulic Tank Capacity: 22 Gal.
• Coolant Tank Capacity: 29 Gal.
• Automatic Index Length Multiple: 177.16"
• Material Pass Line Height: 29-1/2"
• Machine Weight: 6284 lbs

Specifications

• Manufacturer: DoALL Sawing Products
• SKU: DC-460NC
• Shipping Method: Flatbed
• Weight: 7,260 lb
• Dimensions: 109 × 90 × 85 in
• Country of Origin: United States of America
