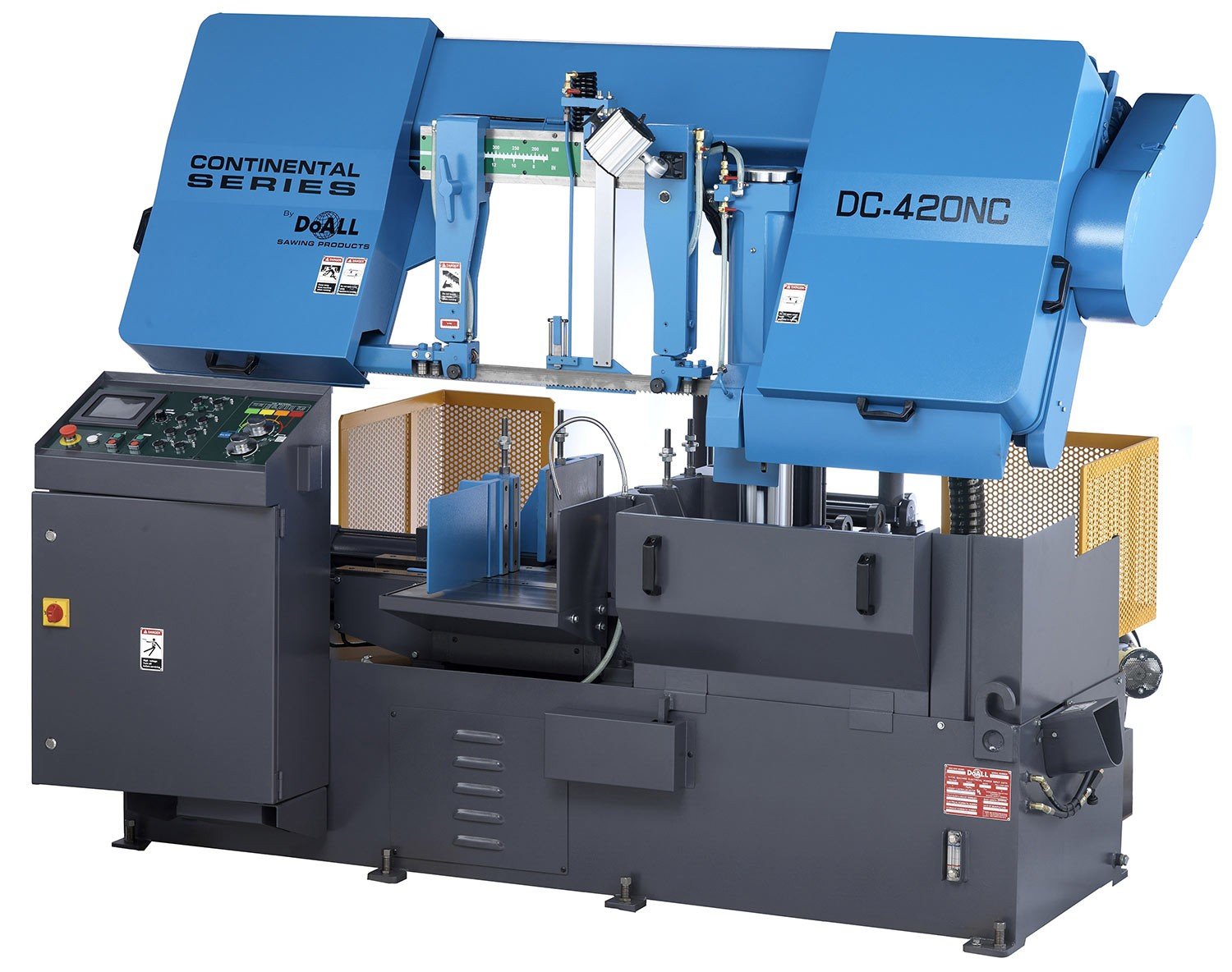

DoAll Production Band Saw DC-420NC

DoAll Production Band Saw DC-420NC is a DoALL Sawing Products product in the Band Saws collection.

Product Details

• Band Saw Blade (L x W x Gage): 192 x 1-1/2 x 0.05″ (4880x38x1.3mm)
• Band Speed: 72 – 390 SFPM (22 – 120 m/min)
• Floor Space Required: 97 x 88 x 66" (2450x2235x1665mm)
• Machine Weight: 5512 lbs (2500kg)
• Description
• The DC-420NC Continental Series™ high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. They offer automatic operation, numerical control and feature solid heavy-duty construction. This provides more rigidity and reduces vibration for higher cutting rates, exceptional accuracy, superior surface finish and increased blade life.
• Specifications
• Cutting Capacity Round: 16-1/2″ (420mm) Cutting Capacity Rectangle: 16-1/2″ x 16-1/2″ (420mm x 420mm) Bundle Capacity Maximum: 14-1/2″ x 7-5/8″ (370mm x 200mm) Bundle Capacity Minimum: 6-1/2″ x 3-1/4″ (165mm x 80mm) Band Saw Blade (L x W x Gage): 192 x 1-1/2 x 0.05″ (4880x38x1.3mm) Band Speed: 72 – 390 SFPM (22 – 120 m/min) Band Drive: 10 HP (7.5kW) Hydraulic Pump: 2HP (1.5kW) Hydraulic Tank Capacity: 22 Gal. (85 Liters) Coolant Tank Capacity: 26 Gal. (100 Liters) Automatic Index Length Single: 19.68″ (500mm) Automatic Index Length Multiple: 177.16″ (4500mm) Material Pass Line Height: 27-1/2″ (698mm) Floor Space Required: 97 x 88 x 66" (2450x2235x1665mm) Machine Weight: 5512 lbs (2500kg)

Specifications

• Manufacturer: DoALL Sawing Products
• SKU: DC-420NC
• Shipping Method: Flatbed
• Weight: 6,160 lb
• Dimensions: 101 × 90 × 80 in
