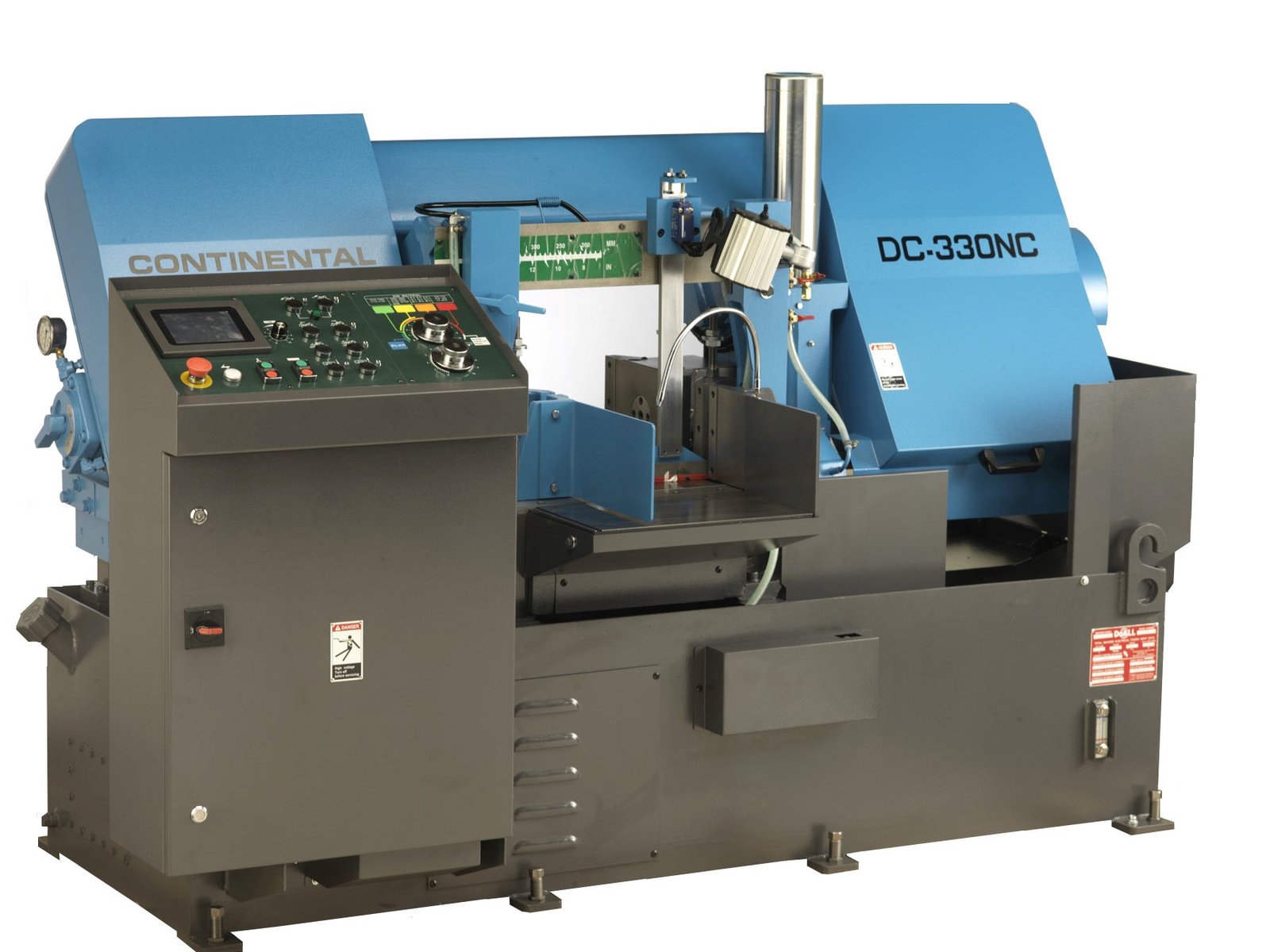

DoAll Production Band Saw DC-330NC

DoAll Production Band Saw DC-330NC is a DoALL Sawing Products product in the Band Saws collection.

Product Details

• Band Saw Blade: 1-1/4 x 0.042 x 167″ (32mm x 1.1x4242mm)
• Band Speed: 72 – 390 SFPM (22 – 120 m/min)
• Floor Space Required: 89 X 87 x 56" (2250x2195x1400mm)
• Machine Weight: 4410 lbs. (2000kg)
• Description
• The DC-330NC Continental Series™ of high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. They offer automatic operation, numerical control and feature solid heavy-duty construction. This provides more rigidity and reduces vibration for higher cutting rates, exceptional accuracy, superior surface finish and increased blade life.
• Specifications
• Cutting Capacity Round: 13″ (330mm) Cutting Capacity Rectangle: 15-3/4 x 13″ (400mm x 330 mm) Bundle Capacity Maximum: 14-1/2 x 6-5/8″ (370mm x 170mm) Bundle Capacity Minimum: 6-1/2″ x 2″ (165mm x 170mm) Band Saw Blade: 1-1/4 x 0.042 x 167″ (32mm x 1.1x4242mm) Band Speed: 72 – 390 SFPM (22 – 120 m/min) Band Drive: 5 hp (3.75kW) Hydraulic Pump: 1 hp (.75kW) Hydraulic Tank Capacity: 16 Gal. (60 Liters) Coolant Tank Capacity: 24 Gal. (90 Liters) Automatic Index Length Single: 19.68″ (500mm) Automatic Index Length Multiple: 177.16″ (4500mm) Material Pass Line Height: 27-1/2″ (700mm) Floor Space Required: 89 X 87 x 56" (2250x2195x1400mm) Machine Weight: 4410 lbs. (2000kg)

Specifications

• Manufacturer: DoALL Sawing Products
• SKU: DC-330NC
• Shipping Method: Flatbed
• Weight: 4,840 lb
• Dimensions: 95 × 90 × 67 in
