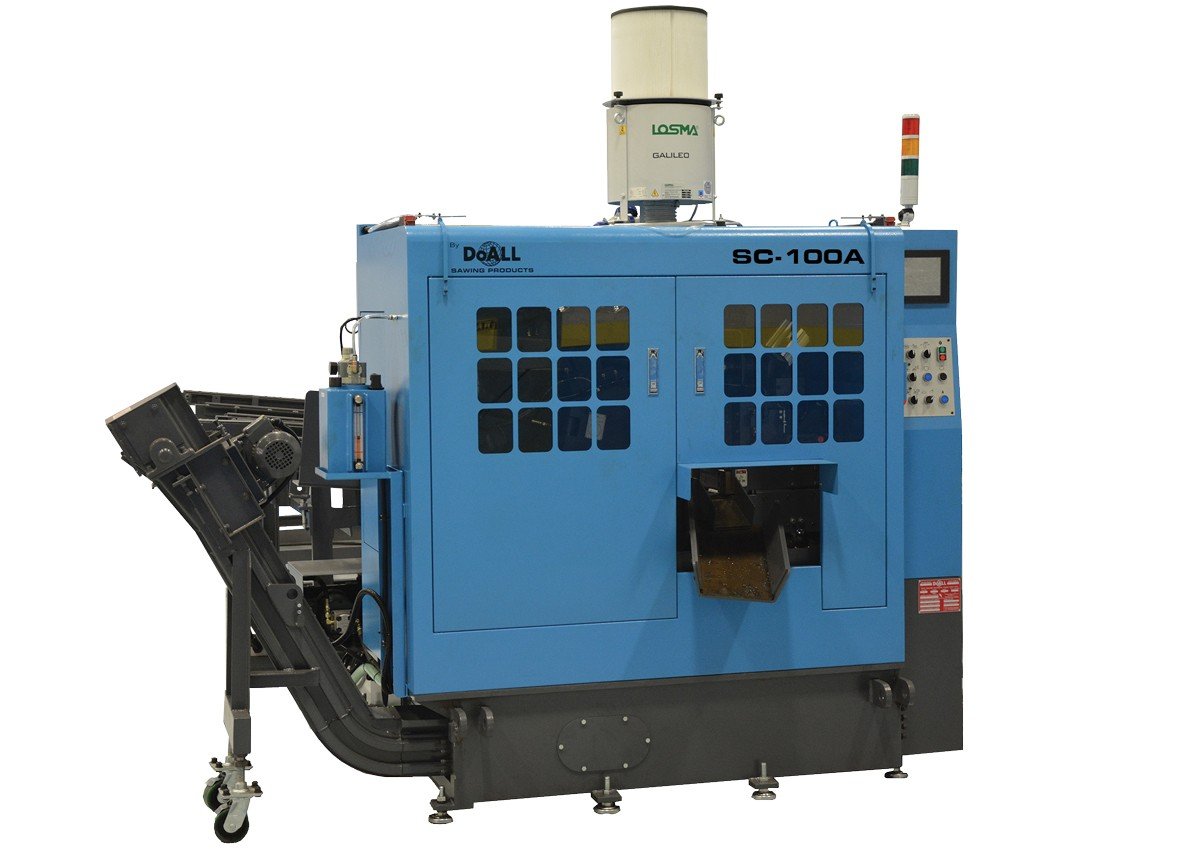

DoAll SC-100A Circular Saw SC-100A

DoAll SC-100A Circular Saw SC-100A is a DoALL Sawing Products product in the Band Saws collection.

Product Details

• Cutting Capacity Round: 0.39″ – 4.0″ (10 – 102 mm)
• Cutting Capacity Rectangle: 0.39-3.15″ x 0.39-3.15″ (10 – 80 x 10 – 80 mm)
• Blade Motor: 15 HP (11.1 kW)
• Hydraulic Pump Motor: 3 HP (2.23 kW)
• Description
• The DoALL SC-100A circular saw offers automatic operation, numerical control and features solid heavy-duty construction which provides more rigidity and reduces vibration for higher cutting rates, exceptional accuracy, superior surface finish and increased blade life. This circular cut off or cold saw is designed for cutting a wide range of metals on a production basis.
• Specifications
• Cutting Capacity Round: 0.39″ – 4.0″ (10 – 102 mm) Cutting Capacity Rectangle: 0.39-3.15″ x 0.39-3.15″ (10 – 80 x 10 – 80 mm) Blade Motor: 15 HP (11.1 kW) Hydraulic Pump Motor: 3 HP (2.23 kW) Blade Speed: 30 – 150 rpm (9-45 mpm) Blade Size: 14.2″ (360mm) Blade Width: 0.102″ x 0.089″ (2.6 x 2.25mm) Blade and Bar Feed System: Servo Motor and Ball Screw Automatic Feed Length Single: 0.24″- 24″ (6-600 mm) Automatic Feed Length Multiple: 2.4″ to 236″ (60-6000mm) Remnant Length Drop: 2.4" (60mm) Cooling: Air Compressed Oil Mist Machine Weight With Table: 7937 lbs. (3,600 kg) Floor Space Required (WxL): 115 x 272″ (2920x6900mm)

Specifications

• Manufacturer: DoALL Sawing Products
• SKU: SC-100A
• Shipping Method: Flatbed
• Weight: 7,950 lb
• Dimensions: 96 × 89 × 84 in
