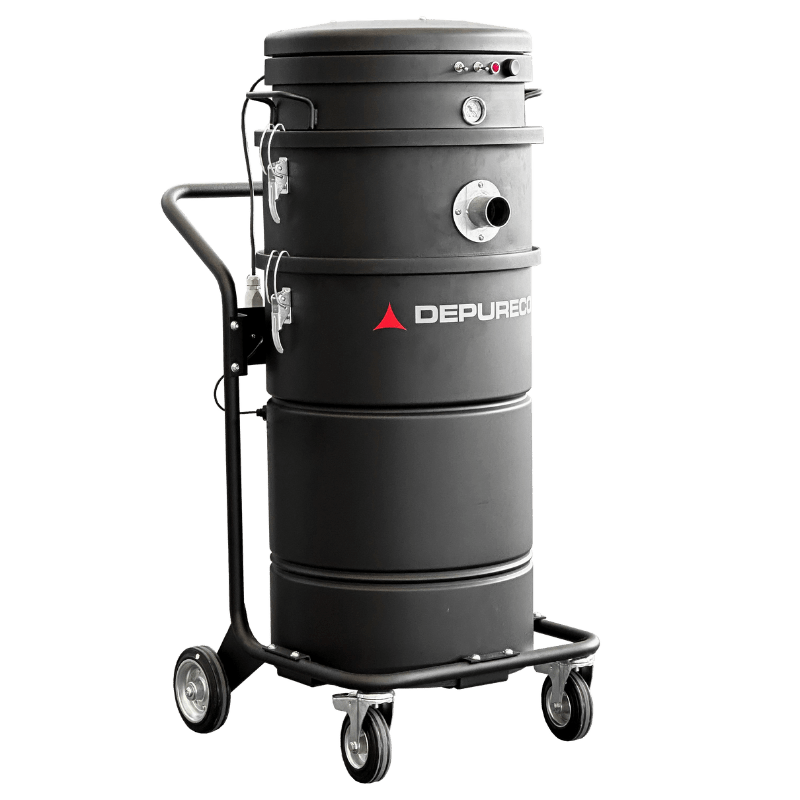

Depureco 70 Liter Industrial Vacuum Cleaner with Gravity Discharge M70 OIL

Depureco 70 Liter Industrial Vacuum Cleaner with Gravity Discharge M70 OIL is a Depureco Industrial Vacuums product in the Coolant & Lubrication collection.

Product Details

• Noise level: 72dB
• Suction time: 70 Liters/18 Seconds
• Maximum vacuum: 250mBar
• Maximum air flow: 380m3/h
• Description
• The M70 OIL industrial vacuum cleaner is designed to suck up and separate oil and metal chips from tanks, on machine tool tables and guides. Suction is generated by two motors working in parallel, ensuring excellent suction speed. The container of this vacuum cleaner is equipped with a metal basket to separate the solid part from the liquid part and a 150-micron nylon filter for more effective filtration. The electric floating level switch automatically stops suction when the maximum capacity of the container is reached (70 lt of emulsified oil sucked in). Discharge is by gravity, thanks to a discharge tube located at the bottom of the container. Optionally, a discharge pump can be installed simultaneously with the suction of the filtered liquid. The M70 OIL industrial vacuum cleaner is mounted on wheels, the container allows the operator to easily empty the sucked material, so the liquid can also be discharged inside a collection or settling container.
• Features
• Vacuum Unit
• Suction is provided by 2 by-pass motors. Each motor is operated by an independent switch that allows the operator to control suction performance. The suction motors are located in a sturdy metal casing, with an insulating sponge to maintain a low noise level.
• Discharge System
• To drain the collected liquid, the container is equipped with a drain tube at the bottom. The liquids are drained by gravity.
• Filter Unit
• The collected liquid passes through a PPL filter with an efficiency of 150µ. Thanks to this, even the smallest solid particles can be separated, making the filtered liquid suitable for reuse. The filter can be washed and reused easily. A disposable TNT filter (100µ efficiency) is also available.
• Specifications
• Motor Type: By-pass Voltage: 230v AC 50/60Hz or 115v Maximum vacuum: 250mBar Maximum air flow: 380m3/h Noise level: 72dB(A) Engines: 2 Frequency: 50/60Hz Power: 3.5HP Suction time: 70/18
• Type: By-pass
• Voltage: 230v AC 50/60Hz or 115v
• Noise level: 72dB(A)
• Engines: 2
• Frequency: 50/60Hz
• Power: 3.5HP
• Suction time: 70/18
• Machine Dimensions: 700 x 450mm Height: 1,440mm Weight: 90Kg Liquid capacity: 70 Solid capacity: 40 Oil filter: included Type of discharge: By gravity
• Dimensions: 700 x 450mm
• Height: 1,440mm
• Weight: 90Kg
• Liquid capacity: 70
• Solid capacity: 40
• Oil filter: included
• Type of discharge: By gravity
• Options
• Disposal filers
• Discharge pump
• Oil & Swarf Kit
• Oil & Swarf Pro Kit

Specifications

• Manufacturer: Depureco Industrial Vacuums
• SKU: M70 OIL
• Shipping Method: LTL Freight
• Weight: 162 lb
• Dimensions: 30 × 41 × 60 in
• Country of Origin: Italy
• Warranty: 1 Year (Parts)
