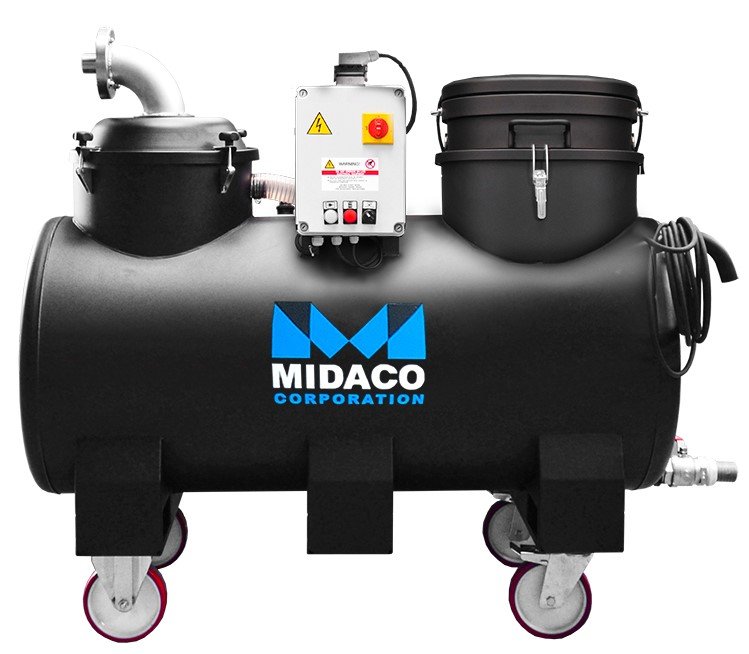

Midaco 3.3HP 110V Single Phase 500L Industrial CNC Vacuum with Flow Inversion M1320V

Midaco 3.3HP 110V Single Phase 500L Industrial CNC Vacuum with Flow Inversion M1320V is a Midaco Corporation product in the Coolant & Lubrication collection.

Product Details

• Motor: 3.3HP 110V Single Phase
• 132 gallon tank capacity and 10.56 gallon solids container
• Vacuum Inlet: 1.97”
• Max Vacuum: 250 mBar
• Description

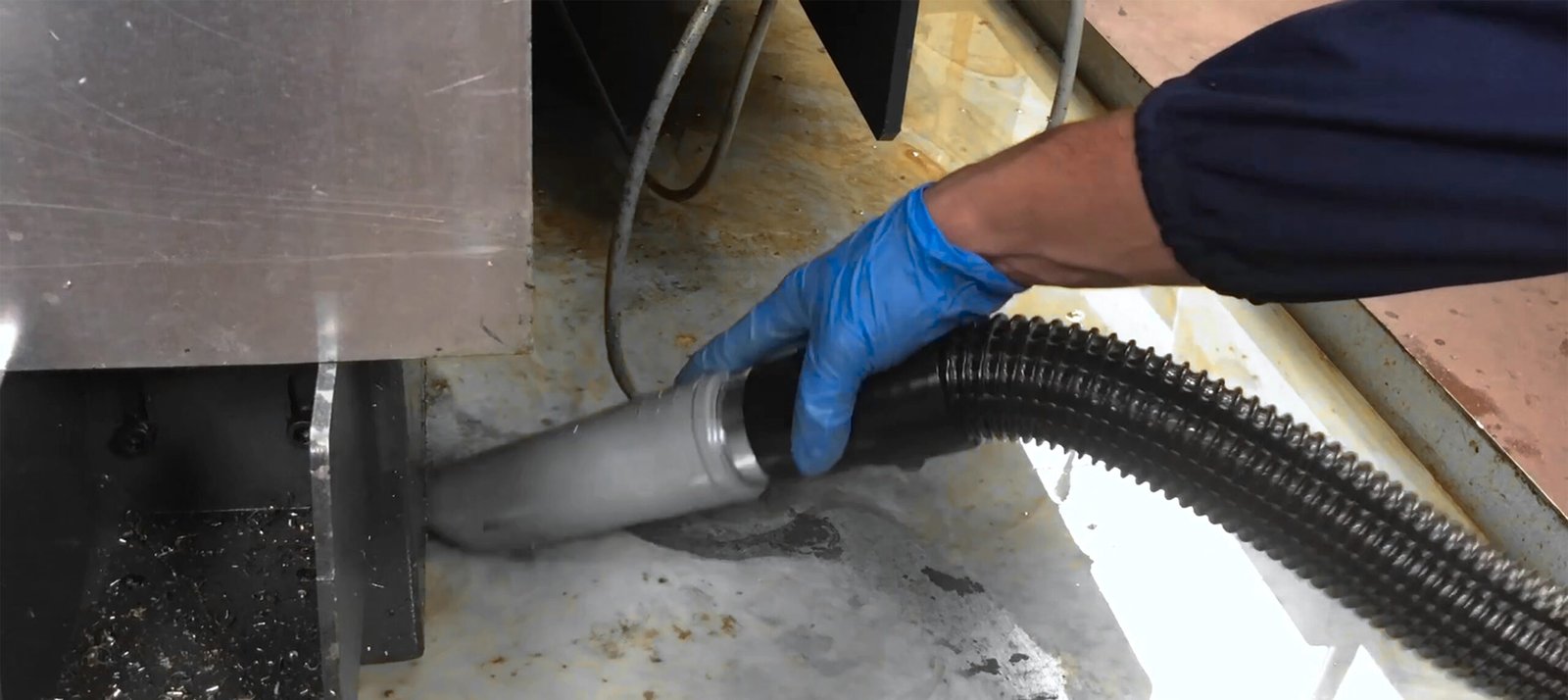

• Midaco’s M1320V Industrial CNC Vacuum is engineered to remove oil, liquids and metal chips from machine tools and is built with a flow inversion system that allows quick reintegration of all lubricant/coolant back into the machine. The vacuum is generated by three single phase motors ensuring excellent vacuum speed. There is a quick-connection micro-perforated carbon steel basket which separates solids from liquids for efficient filtration of metal chips. An electric level sensor automatically stops the vacuum upon reaching maximum capacity. The M1320V is equipped with a 250 liter/min pump for emptying the filtered liquids.

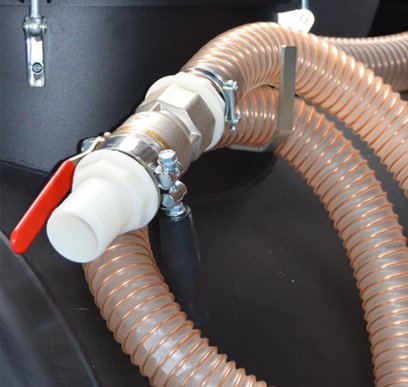

• The vacuum generated by a head with 3 single-phase bypass motors. Material is suctioned from above and falls into the sieve where the micro-perforated carbon steel basket separates solids from the liquid. The liquid is drawn into the 74 gallon (280L) container and the filter stop oily steam generated in the vacuum. A level sensor automatically stops the vacuum upon reaching maximum capacity. The immersion pump ensures continuous emptying of liquids. This liquid is discharged through a rubber tube and a manually adjusted valve and the level sensor on the pump automatically stops drainage upon minimum liquid level.
• Features
• 132 gallon (500L) tank capacity
• 10.56 gallon (40L) solids container
• Separator basket of micro-perforated carbon steel for chip filtration
• 150 micron PPL filter for very fine chips included
• Specifications
• Air Flow Rate: 570 m3/h
• Extraction Time: 132 gallons (500L) per 126 seconds
• Discharge Time: 132 gallons (500L) per 120 seconds
• Sound Level: 72 dB(A)
• Machine Dimensions: 27.5”L x 57”W x 55”H
• Machine Weight: 485 lbs
• Included Attachments
• 124” hose
• 2” diameter round hand tool
• M/M metal connector
• 2 rubber connector sleeves
• Full Hand & Floor Tool Attachment Kit with additional hose and accessories is sold separately

Specifications

• Manufacturer: Midaco Corporation
• SKU: M1320V
• Shipping Method: LTL Freight
• Weight: 775 lb
• Dimensions: 82 × 39 × 54 in
