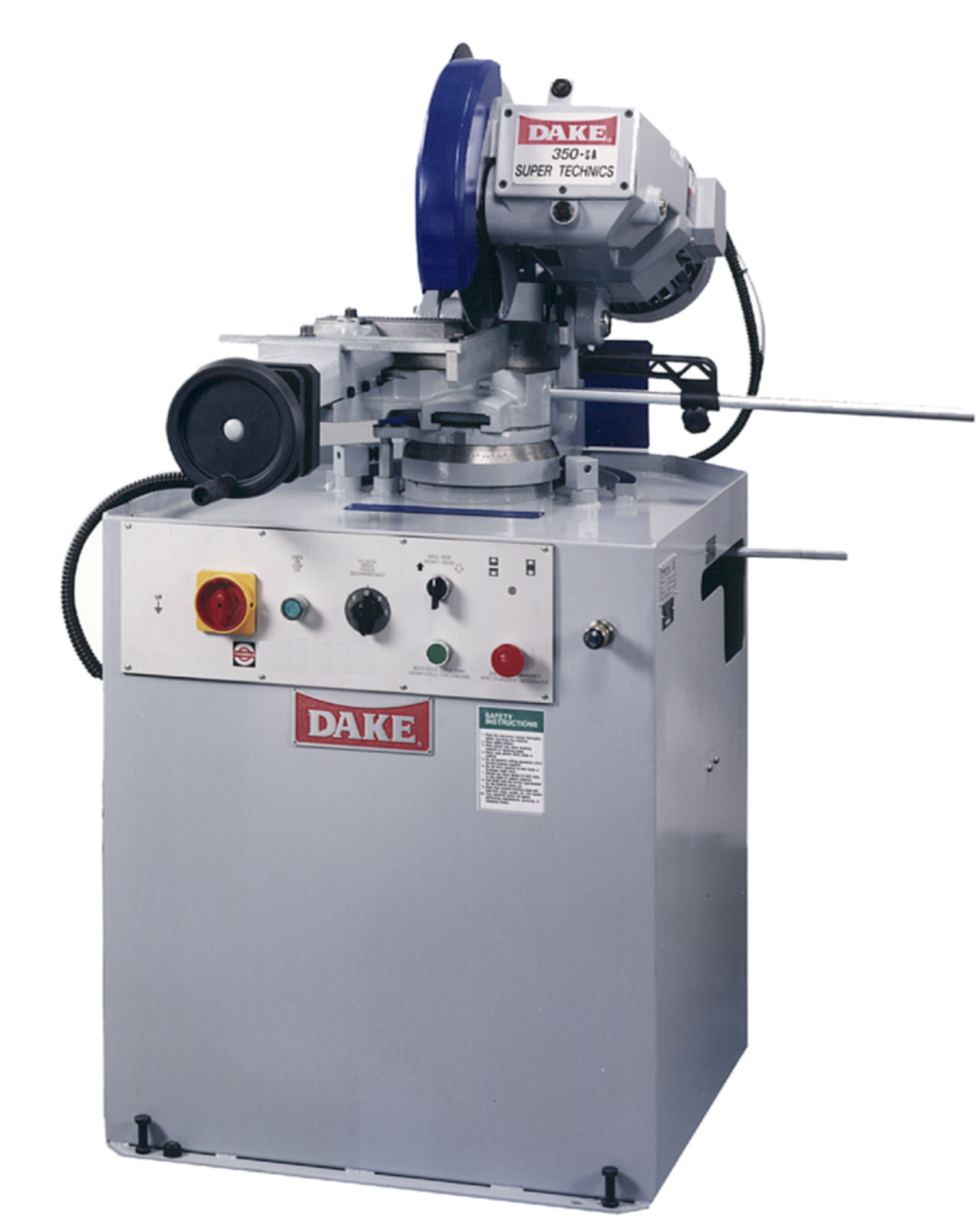

Dake Super 350SA 220V Three Phase 14” Variable-Speed Semi-Automatic Cold Saw 974355

Dake Super 350SA 220V Three Phase 14” Variable-Speed Semi-Automatic Cold Saw 974355 is a Dake Corporation product in the Cold Saws collection.

Product Details

• Max Vise Opening: 6-5/8”
• Max Angle: 60° Left / 45° Right
• Speeds: 20-105 rpm
• Work Height: 36¾”
• Description
• Semi-automatic cold saw that has a push-button or foot switch activation, an oversized pedestal base, shroud enclosed head feed cylinder, adjustable pneumatic vise. Variable speed controlled by a frequency inverter increases the material cutting range.
• Features
• Push button or foot-switch activation to avoid operator fatigue
• Shroud enclosed head feed cylinder with sliding cams for fast cutting stroke adjustment
• Additional ball bearing support of hardened and ground spindle shaft to prevent failure
• Adjustable pneumatic vise with sliding gib to true up clamping under blade with ¼ stroke
• Oversized pedestal base to reduce vibration
• Head rotates 45° right and 60° left of center for easy miter cutting
• Removable hardened, serrated vise jaw faces
• Ability to add a programmable feed system to make fully automatic with wide range of capabilities
• Standard Equipment
• Blade
• Coolant
• Tools kit for changing blades
• Instruction and service manual
• Adjustable positive stop
• Specifications
• Cutting Ability: Ferrous/Non-Ferrous/Plastic
• Max Blade Diameter: 14”
• Slotting: No
• Electrical Requirements: 220V Three Phase 3.5HP
• Machine Dims: 33” x 50” x 60”
• Approx Weight: 890 lbs
• Capacities
• Solid Round 90°: 3-3/8” 45°: 3”
• 90°: 3-3/8”
• 45°: 3”
• Tube 90°: 4¾” 45°: 4”
• 90°: 4¾”
• 45°: 4”
• Square 90°: 4-1/8” 45°: 3-3/8”
• 90°: 4-1/8”
• 45°: 3-3/8”
• Rectangle 90°: 6¼” x 3½” 45°: 3-3/8” x 2¾”
• 90°: 6¼” x 3½”
• 45°: 3-3/8” x 2¾”
• Optional Add-Ons
• 440V unit available (please contact a sales rep for more info)
• Loading Table (301644)
• Unloading Table with Scale and Stop (301645)
• Blade Starter Pack (79846)

Specifications

• Manufacturer: Dake Corporation
• SKU: 974355
• Shipping Method: LTL Freight
• Weight: 950 lb
• Dimensions: 40 × 55 × 65 in
