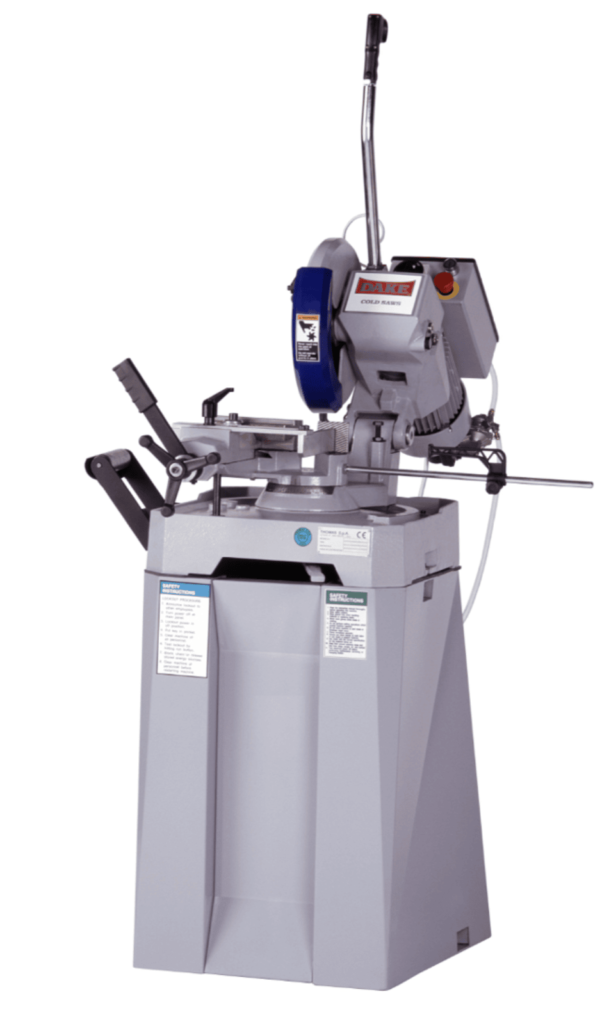

Dake Super Cut 315 110V Single Phase 12½” Manual Cold Saw 9743151PH

Dake Super Cut 315 110V Single Phase 12½” Manual Cold Saw 9743151PH is a Dake Corporation product in the Cold Saws collection.

Product Details

• Max Vise Diameter: 4-5/8”
• Max Angle: 45° Left/Right
• Speeds: 44 rpm
• Work Height: 38½”
• Description
• Manual cold saw with a head that will rotate 45° left and right for mitering. Heavy-duty low production saw, comes with one standard HSS blade. This model has 24V at controls, an e-stop, low voltage protection, and thermal overload protection.
• Features
• Head rotates 45° right and left of center for mitering
• Dependable oversized spindle and gear assembly with steel spindle and bronze gear
• Bronze gear with tapered roller bearing support
• Reliable mechanical coolant pump with flow control adjustment
• Additional ball bearing support of hardened and ground spindle shaft to prevent failure
• E-Stop, low voltage protection, and thermal overload protection
• Vise is hand wheel adjustable and cam lever activated for repetitious clamping
• Standard Equipment
• Blade
• Pedestal Base
• Tool Kit
• Coolant
• Adjustable Positive Stop
• Specifications
• Cutting Ability: Ferrous/Non-Ferrous/Plastics
• Max Blade Diameter: 12½”
• Slotting: No
• Electrical Requirements: 110V Single Phase
• Machine Dims: 26” x 36” x 59”
• Approx Weight: 450 lbs
• Capacities
• Solid Round 90°: 2-5/8” 45°: 2½”
• 90°: 2-5/8”
• 45°: 2½”
• Tube 90°: 3-5/8” 45°: 3½”
• 90°: 3-5/8”
• 45°: 3½”
• Square 90°: 3¼” 45°: 3-1/8”
• 90°: 3¼”
• 45°: 3-1/8”
• Rectangle 90°: 4¼” x 2¾” 45°: 3¼” x 2¾”
• 90°: 4¼” x 2¾”
• 45°: 3¼” x 2¾”
• Optional Add-Ons
• 440V unit available (please contact a sales rep for more information)
• Pneumatic Vice
• Blade Starter Pack, Three 12” HSS Blades
• 78” Loading Table (301644)
• 78” Unloading Table (301645)

Specifications

• Manufacturer: Dake Corporation
• SKU: 9743151PH
• Shipping Method: LTL Freight
• Weight: 515 lb
• Dimensions: 48 × 36 × 62 in
