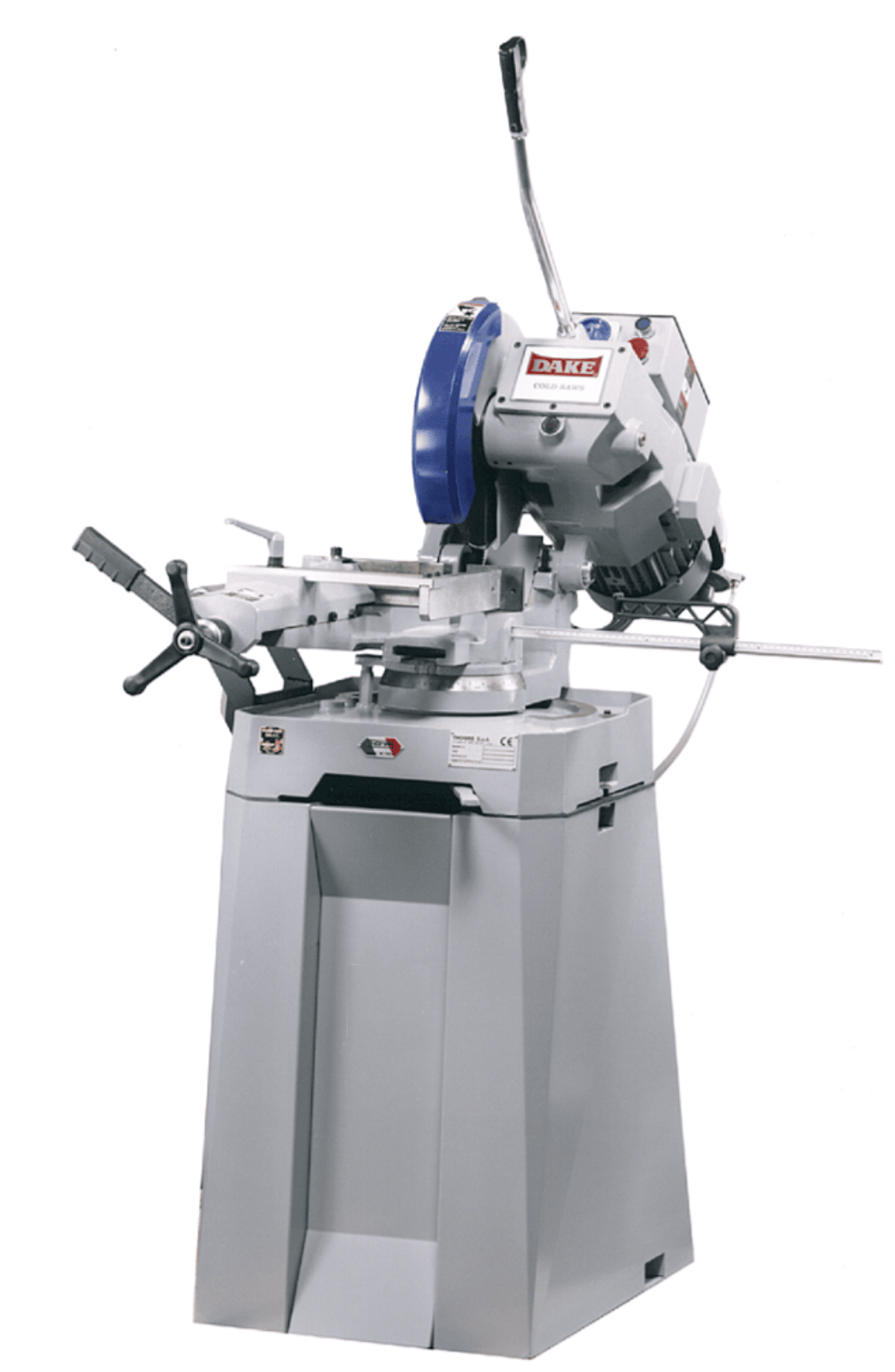

Dake Super 350CE 220V Three Phase 14” Manual Cold Saw with Slot Cutting Capability 974029

Dake Super 350CE 220V Three Phase 14” Manual Cold Saw with Slot Cutting Capability 974029 is a Dake Corporation product in the Cold Saws collection.

Product Details

• Max Vise Opening: 6-5/8”
• Max Angle: 45° Left/Right; 90° Right for Slot Cutting
• Speeds: 22-88 rpm
• Work Height: 40”
• Description
• Manual cold saw that will rotate to 90° right for slot cutting and offers variable speeds. Heavy-duty low production variable speed saw, comes with one standard HSS blade. A mechanical coolant pump with flow control is included.
• Features
• Head rotates 45° right and left of center for mitering
• Dependable oversized spindle and gear assembly with steel spindle and bronze gear
• Reliable mechanical coolant pump with flow control adjustment
• Vise is gib adjustable with cam lever action for quick secure clamping
• Additional ball bearing support of hardened and ground spindle shaft to prevent failure
• E-Stop, low voltage protection, and thermal overload protection
• 90° rotation for slot cutting operations
• Standard Equipment
• Blade
• Pedestal Base
• Tool Kit
• Coolant
• Adjustable Positive Stop
• Specifications
• Cutting Ability: Ferrous/Non-Ferrous/Plastics
• Max Blade Diameter: 14”
• Slotting: Yes
• Electrical Requirements: 220V Three Phase 3.5HP
• Machine Dims: 24¾” x 23” x 75”
• Approx Weight: 650 lbs
• Capacities
• Solid Round 90°: 3-3/8” 45°: 3”
• 90°: 3-3/8”
• 45°: 3”
• Tube 90°: 4¾” 45°: 4”
• 90°: 4¾”
• 45°: 4”
• Square 90°: 4-1/8” 45°: 3-3/8”
• 90°: 4-1/8”
• 45°: 3-3/8”
• Rectangle 90°: 6¼” x 3½” 45°: 3-3/8” x 2¾”
• 90°: 6¼” x 3½”
• 45°: 3-3/8” x 2¾”
• Optional Add-Ons
• 440V unit available (please contact a sales rep for more info)
• Pneumatic Vise
• Blade Starter Pack, Three 14” Blades
• 78” Loading Table (301644)
• 78” Unloading Table (301645)

Specifications

• Manufacturer: Dake Corporation
• SKU: 974029
• Shipping Method: LTL Freight
• Weight: 720 lb
• Dimensions: 48 × 48 × 80 in
