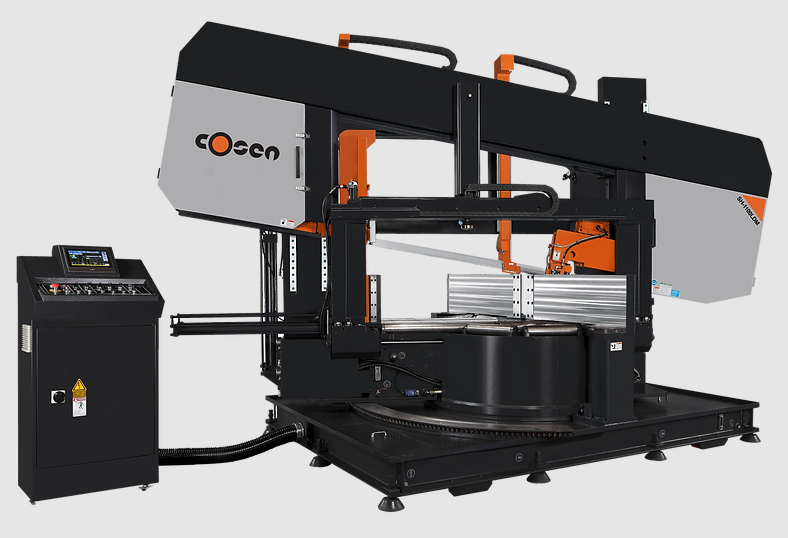

Cosen 26″ Semi-Automatic Horizontal Dual Post Dual Mitering Band Saw SH-1100LDM

Cosen 26″ Semi-Automatic Horizontal Dual Post Dual Mitering Band Saw SH-1100LDM is a Cosen product in the Band Saws collection.

Product Details

• Blade Speed: 50 – 393 FPM
• Blade Size (L x W x T): 33' 2" x 2.625" x 0.063
• Blade Motor: 15 HP
• Coolant Motor: 1/2 HP
• FABRICATION PRODUCTION SAW
• Cosen provides a full range of semi-automatic band saws in a wide variety of cutting capacities. These saws exceed many of the standard requirements that operators look for in a band saw machine. With its rigid construction and superior features, Cosen's SH-1100LDM fits into that category. This heavy duty band saw offers precision, efficiency in operation, lower cost per cut, and durability in a demanding production environment.
• Features
• Semi-Automatic Horizontal Dual Post, Dual Mitering Band Saw
• High precision linear guide way design
• Heavy-duty cast iron swivel center features straight cutting and miter cuts (+-60 degrees)
• Gearbox designed to accept high lateral pressure (no thermal distortion)
• Inverter blade drive system which allows infinitely variable blade speeds
• Adjustable flood coolant system
• Motor driven, synchronized wire blade brush
• Carbide blade guides and bearing provides additional blade support
• Hydraulically actuated cast-iron guide arms
• Cast-iron hydraulic vise
• Split vise jaw for reduced burr
• Automatic hydraulic blade tensioning device
• Dual valve feed pressure and feed rate system for optimal cutting performance
• Specifications
• Capacities 0 ° Round: 26" Rectangular: 26" x 44" +45 ° Round: 26" Rectangular: 26" x 27.6" +60 ° Round: 15.7" Rectangular: 26" x 15.7"
• 0 ° Round: 26" Rectangular: 26" x 44"
• Round: 26"
• Rectangular: 26" x 44"
• +45 ° Round: 26" Rectangular: 26" x 27.6"
• Rectangular: 26" x 27.6"
• +60 ° Round: 15.7" Rectangular: 26" x 15.7"
• Round: 15.7"
• Rectangular: 26" x 15.7"
• Coolant Tank Capacity: 26 gal
• Hydraulic Tank Capacity: 16 gal
• Workbed Height: 33.5"
• Weight: 24,200 lbs.
• Floorspace (L x W x H): 191" x 193" x 134"

Specifications

• Manufacturer: Cosen
• SKU: SH-1100LDM
• Shipping Method: Flatbed
• Weight: 24,300 lb
• Dimensions: 196 × 198 × 139 in
• Country of Origin: Taiwan
• Warranty: 2 Years (Parts) / 1 Year (Labor)
