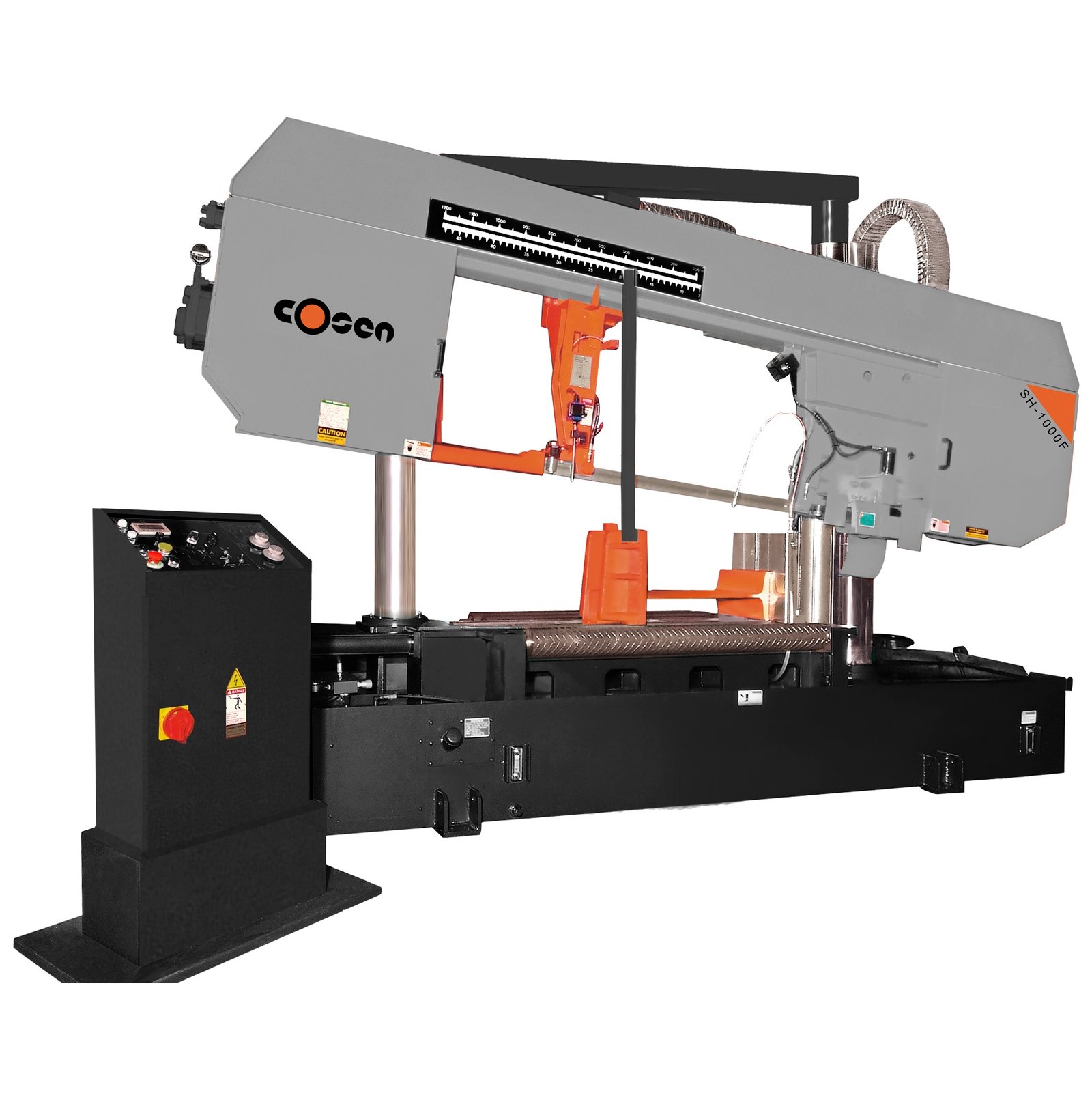

Cosen 26” Semi-Automatic Horizontal Dual Column Band Saw SH-1000F

Cosen 26” Semi-Automatic Horizontal Dual Column Band Saw SH-1000F is a Cosen product in the Band Saws collection.

Product Details

• Round Capacity: 26"
• Rectangular Capacity (HxW): 20.5" x 40"
• Blade Speed: 50 – 295 FPM
• Workbed Height: 25.6"
• Description
• Cosen provides a full range of semi-automatic band saws in a wide variety of cutting capacities. These saws exceed many of the standard requirements that operators look for in a band saw machine. With its rigid construction and superior features, Cosen's SH-1000F fits into that category. This heavy-duty band saw offers precision, efficiency in operation, lower cost per cut, and durability in a demanding production environment.
• Features
• Hydraulic dual column design
• Gearbox designed to accept high lateral pressure (no thermal distortion)
• Inverter blade drive system which allows infinitely variable blade speeds
• Adjustable flood coolant system
• Motor driven, synchronized wire blade brush
• Carbide blade guides and bearing provides additional blade support
• Hydraulically actuated cast-iron guide arms
• Cast-iron hydraulic vise
• Split vise jaw for reduced burr
• Automatic hydraulic blade tensioning device
• Dual valve feed pressure and feed rate system for optimal cutting performance
• Specifications
• Blade Size (LxWxT): 26' 3" x 2" x .063"
• Blade Motor: 10 HP
• Coolant Motor: 1/4 HP
• Weight: 9,000 lbs
• Floorspace (LxWxH): 65" x 159" x 103"

Specifications

• Manufacturer: Cosen
• SKU: SH-1000F
• Shipping Method: Flatbed
• Weight: 12,320 lb
• Dimensions: 65 × 159 × 103 in
• Warranty: 1 Year (Parts)
