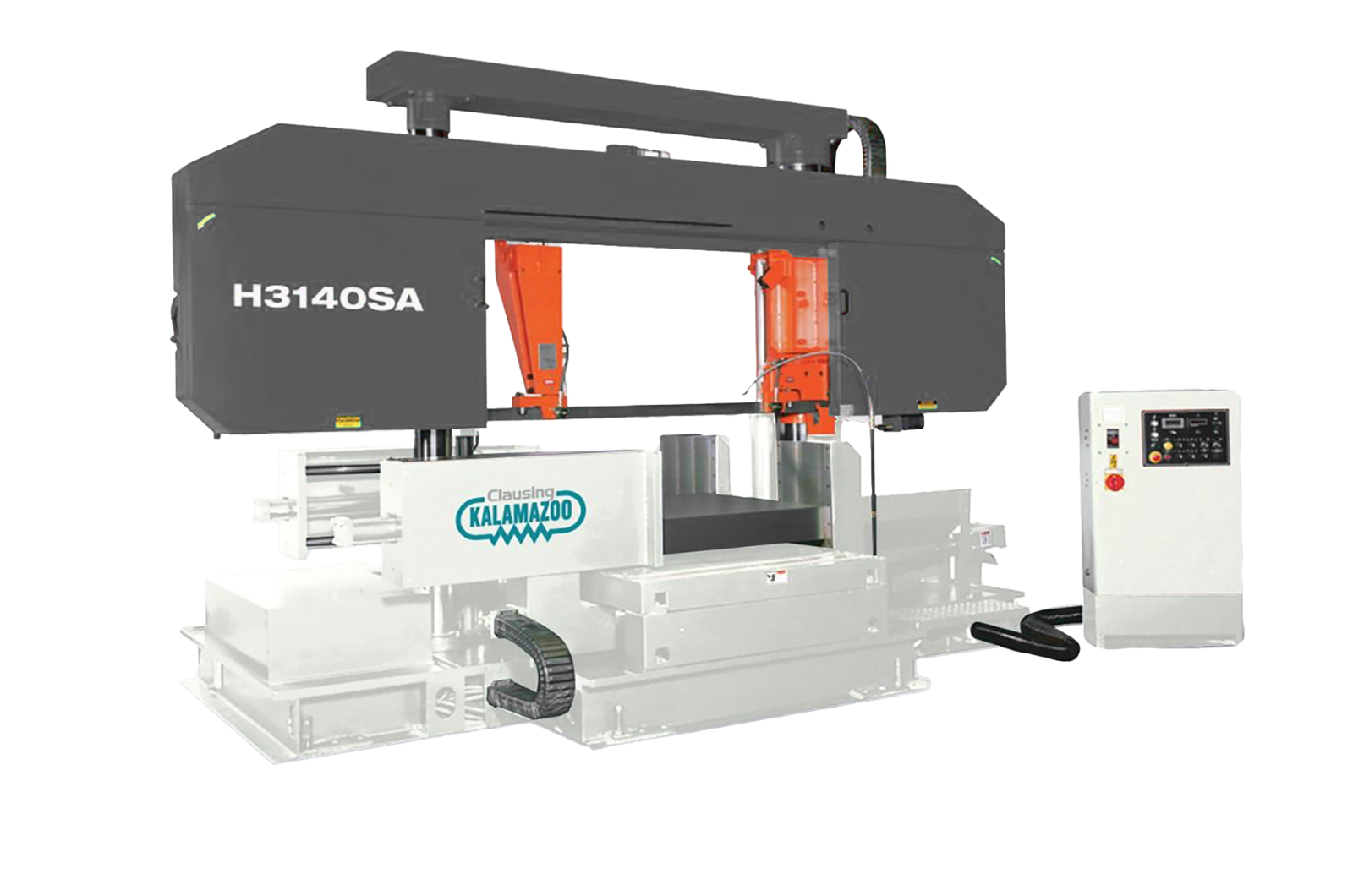

Clausing Kalamazoo 230V Three Phase 31.5” Double-Column Variable-Speed Semi-Automatic Horizontal Bandsaw H3140SA

Clausing Kalamazoo 230V Three Phase 31.5” Double-Column Variable-Speed Semi-Automatic Horizontal Bandsaw H3140SA is a Clausing Industrial product in the Band Saws collection.

Product Details

• Blade Speeds (variable): 49 – 264 fpm
• Blade Size: 2.5” x 0.063” x 346.5”
• Coolant Capacity: 32 gallons
• Bed Height: 25.2”
• Description
• This model is designed for rugged production use and it offers high production output and heavy-duty performance in semi-automatic operation.
• Twin column design ensures rigid support during cutting cycle by keeping the blade parallel and square to the work piece.
• Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
• Features
• The extra heavy-duty saw frame is supported by two large bore hydraulic cylinders, providing unsurpassed rigidity and the smoothest cutting possible
• Dual column design with precision ground columns ensures smooth saw frame movement and consistent cutting force throughout the cutting cycle
• Large diameter cast iron bandwheels
• Inverter drive with infinitely variable blade speeds with blade speed indicator
• Hydraulic controlled tungsten carbide blade guide
• Hydraulic driven guide arm
• Proximity switch for sensing blade slippage or breakage
• Independent wire brush drive system
• Auto shut-off function automatically stops the machine and shuts down the hydraulic system at the end of the last cut
• Two full stroke cylinder vices
• Discharge table with built-in coolant return
• Heavy-duty machine structure design for heavy cutting jobs
• Precise flow control valve to finely adjust the cutting speed
• Additional flushing hose
• Bi-metal saw blade
• Toolbox, leveling pads, and an additional wire brush
• Operation & parts manual
• Specifications
• Machine Style: Semi-Automatic
• Drive Type: Inverter drive with infinitely variable blade speeds with blade speed indicator
• Hydraulic Pump Motor: 3HP
• Hydraulic Oil Capacity: 26 gallons
• Blade Tension: hydraulic
• Coolant: recirculating
• Electrical Requirements: 230V Three Phase 15HP
• Machine Dims: 90” x 169” x 105”
• Approx Weight: 22,000 lbs
• Cutting Capacities @ 90°
• Round: 31.5”
• Square: 31.5”
• Rectangular: 31.5” x 39.4”
• Optional Add-Ons
• Other voltages available (please contact a sales rep for more info)
• Roller Tables
• Vise Pressure Regulator Single Vise (VP31SA)
• Chip Conveyor (CM3101H)
• Hydraulic Bundle Clamp (CM3102H)
• SAWZIT 1 Gallon (CSR1)
• SAWZIT 5 Gallon (CSR5)

Specifications

• Manufacturer: Clausing Industrial
• SKU: H3140SA
• Shipping Method: Flatbed
• Weight: 23,320 lb
• Dimensions: 95 × 175 × 110 in
