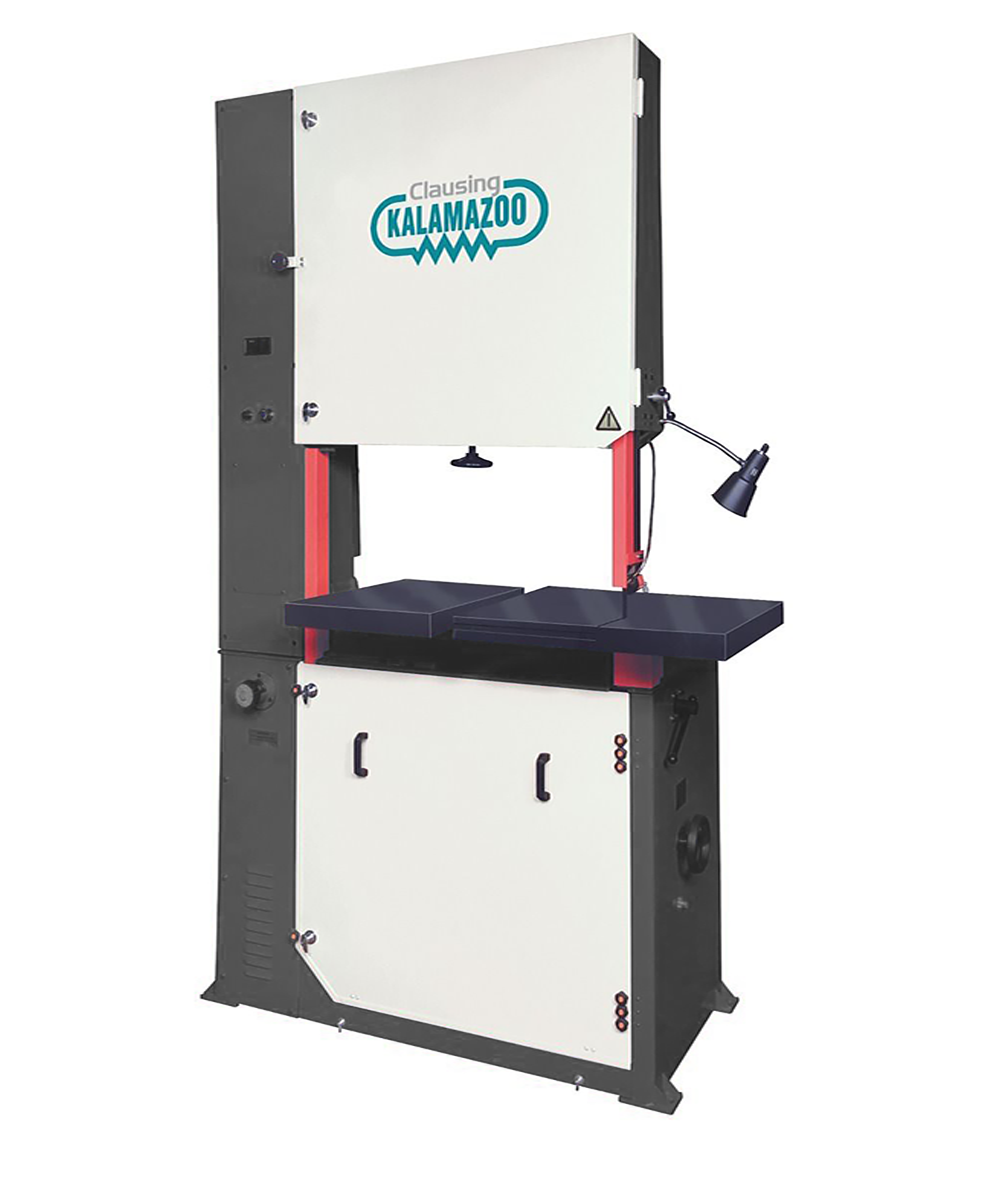

Clausing Kalamazoo 230V Three Phase 40” Vertical Bandsaw with Fixed Tilting Table V4014F

Clausing Kalamazoo 230V Three Phase 40” Vertical Bandsaw with Fixed Tilting Table V4014F is a Clausing Industrial product in the Band Saws collection.

Product Details

• Throat: 40”
• Table height: 54”
• Blade speed: 50-5200 FPM
• Table Tilt: 15°L / 15°R
• Description
• The Vertical Saw comes with a heavy duty cast iron table with two way tilt (15°L / 15°R), solid table surface. The dual range transmission driven by 5HP motor provides high torque and speed control. CE approved design.
• Features
• Magnetic starter with 110V control circuit and overload protection
• 5HP TEFC motor with brake (full stop from max speed within approx. 10 seconds)
• Dual range transmission
• Sets of (4) Chevron type blade guides, sizes 1/16”, 1/8”, 3/16”, ¼”, 3/8”, ½”, 5/8”, ¾”, and 1” back-up rollers in blade guide brackets
• 29½” x 27½” heavy duty cast iron table with two-way tilt (15°L/15°R) solid table surface
• Auxiliary table 19” x 26¾”
• Bonded rubber band wheels
• 110V work light
• Built-in air chip blower
• Blade tension indicator
• Blade speed indicator
• Rip fence
• 1” carbon hardback blade
• Locking band wheel doors
• Operation & parts manual
• Specifications
• Work height: 14”
• Blade length: 262.5” – 263”
• Blade width: 1/8” – 1¼”
• Band wheel diameter: 40” (2 wheel)
• Drive motor: 5HP
• Electrical Requirements: 230V Three Phase 60Hz
• Machine Dims: 72” x 41” x 113”
• Approx Weight: 2,976 lbs
• Optional Add-Ons
• 460V Three Phase unit available (please contact a sales rep for more info)
• Extra rip fence (KM388)
• Miter gauge fixed table (KM198)
• Miter gauge hydraulic table (KM198H)
• Circle cutting attachment (KM260)
• Clausing installed welder, shear, grinder
• Extra Chevron guide inserts, various sizes
• Roller tables, various sizes

Specifications

• Manufacturer: Clausing Industrial
• SKU: V4014F
• Shipping Method: LTL Freight
• Weight: 3,395 lb
• Dimensions: 76 × 45 × 118 in
