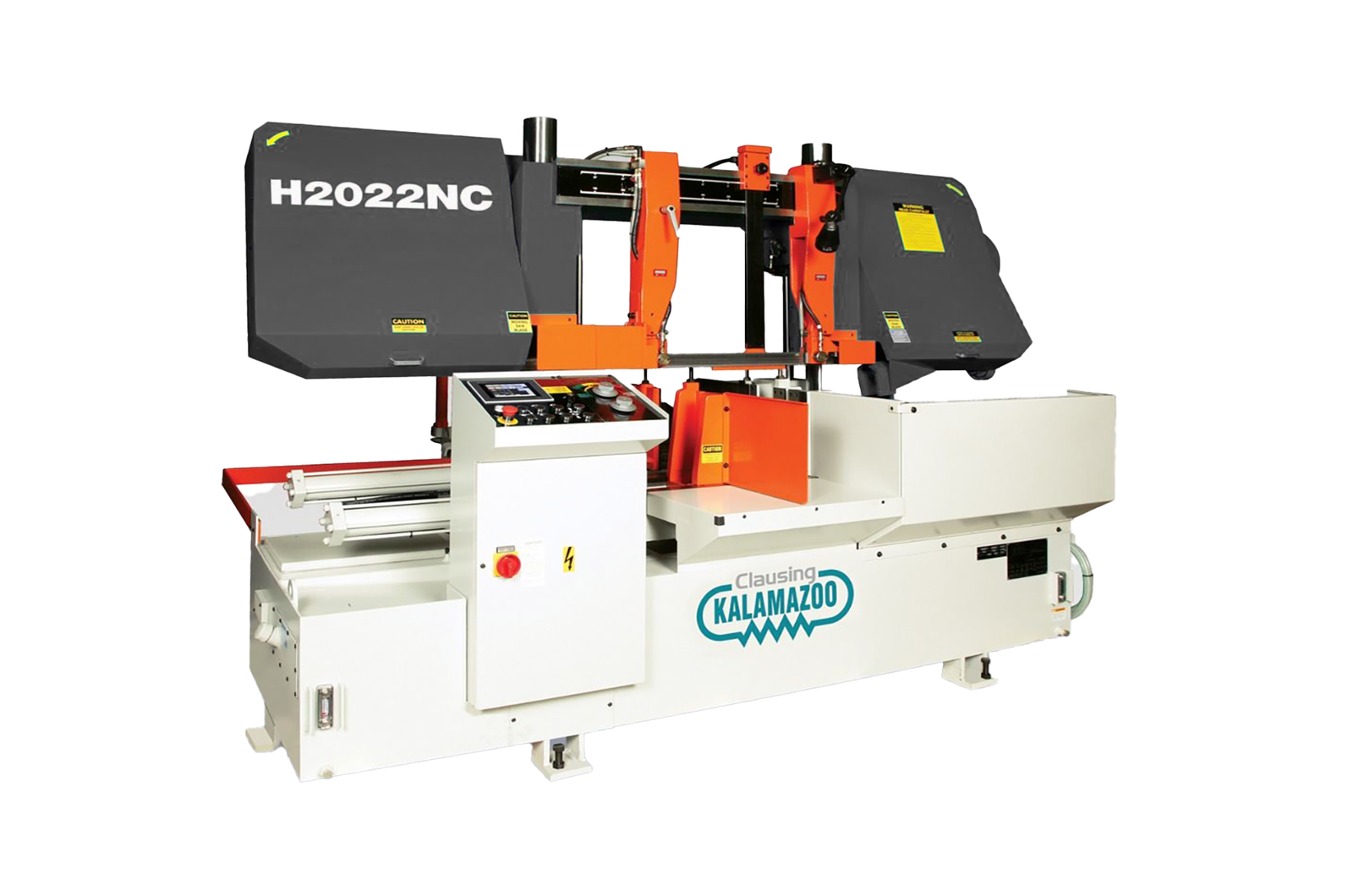

Clausing Kalamazoo 230V Three Phase 20.5” Double-Column Variable-Speed Automatic NC Horizontal Bandsaw H2022NC

Clausing Kalamazoo 230V Three Phase 20.5” Double-Column Variable-Speed Automatic NC Horizontal Bandsaw H2022NC is a Clausing Industrial product in the Band Saws collection.

Product Details

• Blade Speeds (variable): 66 – 328 fpm
• Blade Size: 2” x 0.06” x 238”
• Max Feed: 198”
• Bed Height: 27.2”
• Description
• This Double Column Fully Automatic Horizontal Bandsaw is designed for rugged production use and it offers high production output and heavy-duty performance in fully automatic operation.
• A powerful drive motor provides the power and the Smart NC-100 technology is programmable up to 100 different jobs.
• Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more table flow of voltage and more horsepower to the machine.
• Features
• Oversized hydraulic cylinder
• Hydraulic shuttle vice assembly
• Inverter controlled infinitely variable speed
• Carbide blade guides with roller bearings
• Two additional guides to support the blade from the top
• Automatic hydraulic blade tensioning
• Power driven blade brushes
• Integral coolant system
• Smart NC-100 technology programmable up to 100 different jobs
• Easy recall and execution of stored parts
• Automatic shutoff after preset number of cuts or when out of stock
• 5.7” HMI touch screen incorporating readout on blade speed, blade life, feed vise position, and error code display for self-diagnostics
• Automatic kerf loss compensation & computer controlled multiple indexing
• Precision feed pressure & feed rate
• Bundle/single cutting mode switch
• Automatic height setting feature
• Hydraulic front and rear vises
• Cast iron vises with replaceable hardened wear plates
• Discharge table with built-in coolant return
• Blade slippage or breakage detection
• Adjustable cut-off stock fence
• Additional flushing hose
• Bi-metal saw blade
• Built in work light
• Toolbox, leveling pads, and an additional wire brush
• Operation and parts manual
• Specifications
• Machine Style: Automatic
• Drive Type: Inverter Controlled Infinitely Variable Speed
• Hydraulic Pump Motor: 2HP
• Hydraulic Oil Capacity: 10.5 gallons
• Blade Tension: hydraulic
• Coolant: recirculating
• Coolant Capacity: 22.5 gallons
• Feed Length/Index: 19.8”
• Electrical Requirements: 230V Three Phase 7.5HP
• Machine Dims: 125” x 89” x 89”
• Approx Weight: 6,930 lbs
• Cutting Capacities @ 90°
• Round: 20.5”
• Square: 20.5”
• Rectangular: 22” x 20.5”
• Optional Add-Ons
• Other voltages available (please contact a sales rep for more info)
• HD Roll Tables, Various Sizes
• Stock Stand Assembly (P10)
• Vise Press Regulator (VP20NC)
• Blade Deviation Detector (H20-BDD)
• Chip Conveyor (CM2001N)
• Bundle Cutting Attachment (CM2002N)
• SAWZIT 1 Gallon (CSR1)
• SAWZIT 5 Gallon (CSR5)

Specifications

• Manufacturer: Clausing Industrial
• SKU: H2022NC
• Shipping Method: Flatbed
• Weight: 7,326 lb
• Dimensions: 130 × 95 × 95 in
