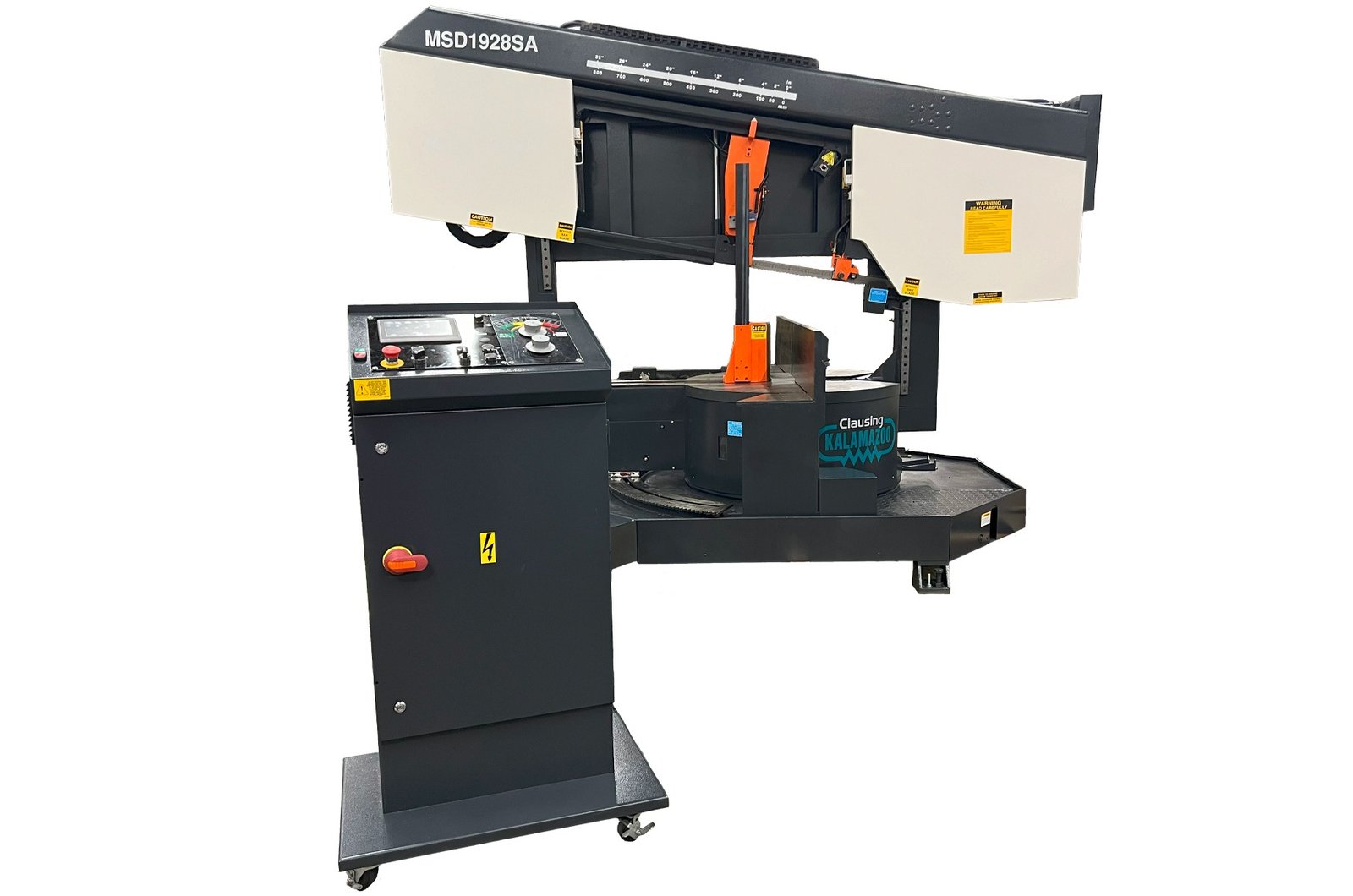

Clausing Kalamazoo 230V Three Phase 19”x28” Variable-Speed Semi-Automatic Twin-Column Dual Miter Horizontal Bandsaw MSD1928SA

Clausing Kalamazoo 230V Three Phase 19”x28” Variable-Speed Semi-Automatic Twin-Column Dual Miter Horizontal Bandsaw MSD1928SA is a Clausing Industrial product in the Band Saws collection.

Product Details

• Blade size: 1.5” x 0.050” x 257.5”
• Blade speeds (variable): 83-330 FPM
• Bed height: 25.8”
• Hydraulic pump motor: 1HP
• Description
• Semi-automatic heavy duty inverter blade drive system with variable blade speed control double miter bandsaw can allow for power vise clamping, head rise and lower. Precision pivot system facilitates easy and accurate adjustment for angle cuts left or right up to 60°. Rigid, oversized linear guides are precision ground to ensure smooth hydraulically driven consistent feed rate of the cutting head.
• Features
• 5.7” HMI touch screen controller
• Swivel saw head mitering from 90° to ± 45° to ± 60°
• Rigid, oversized linear guides precision ground to ensure smooth hydraulically driven consistent feed rate of the cutting head
• Guide arm travels along one linear guide and moves in sync with the full stroke hydraulic vise to always be at the best location possible when cutting
• 10 degree blade cant for longer blade life specific for structural steels
• Fast and accurate mitering via automatic angle positioning through the HMI touch screen with 0.1° accuracy
• Hydraulic angle lock-down device
• Specially designed gearbox for smooth and powerful cutting
• Heavy duty inverter blade drive system
• Carbide blade guides
• Two additional bearings for extra support of the blade
• Automatic hydraulic blade tensioning device
• Integral coolant system
• Synchronized power driven blade brush
• Adjustable control station at waist level
• Infinitely variable blade speed control
• Precision feed pressure & feed rate dual valve system
• Proximity switch for sensing blade slippage or breakage
• Electrical and hydraulic safety interlock
• Conduits protection measure
• “Alert Orange” safety measure
• Blade “clip” device for easy blade change
• Bi-metal saw blade
• Toolbox, leveling pads, and an additional wire brush
• Operation & parts manual
• Cutting Capacities
• 90° Round: 19” Rectangular: 16.5” x 28”
• Round: 19”
• Rectangular: 16.5” x 28”
• 45° Round: 16.5” Rectangular: 16.5” x 17.7”
• Round: 16.5”
• Rectangular: 16.5” x 17.7”
• 60° Round: 11.8” Rectangular: 16.5” x 11.8”
• Round: 11.8”
• Rectangular: 16.5” x 11.8”
• Specifications
• Blade tension: hydraulic
• Coolant: recirculating
• Vise control: full stroke hydraulic cylinder
• Hydraulic oil capacity: 9.1 gallons
• Coolant capacity: 13 gallons
• Electrical Requirements: 230V Three Phase 7.5HP
• Machine Dims: 131” x 136” x 87”
• Approx Weight: 6,100 lbs
• Optional Add-Ons
• Other voltages available (please contact a sales rep for more info)
• Vise pressure regulator single vise (VP1901NC)
• Chip conveyor (CM1901MD)
• Hydraulic bundling clamps (CM1902MD)
• Motor load meter (MS19-AMP)
• Stock height detector (MS19-SHD)
• Blade deviation detector (MS19-BDD)
• Automatic wedging resistance (MS19-AWR)
• Stock stand assembly (P10)
• Roller tables, various sizes
• SAWZIT 1 gallon coolant (CSR1)
• SAWZIT 5 gallon coolant (CSR5)

Specifications

• Manufacturer: Clausing Industrial
• SKU: MSD1928SA
• Shipping Method: Flatbed
• Weight: 6,380 lb
• Dimensions: 135 × 140 × 93 in
