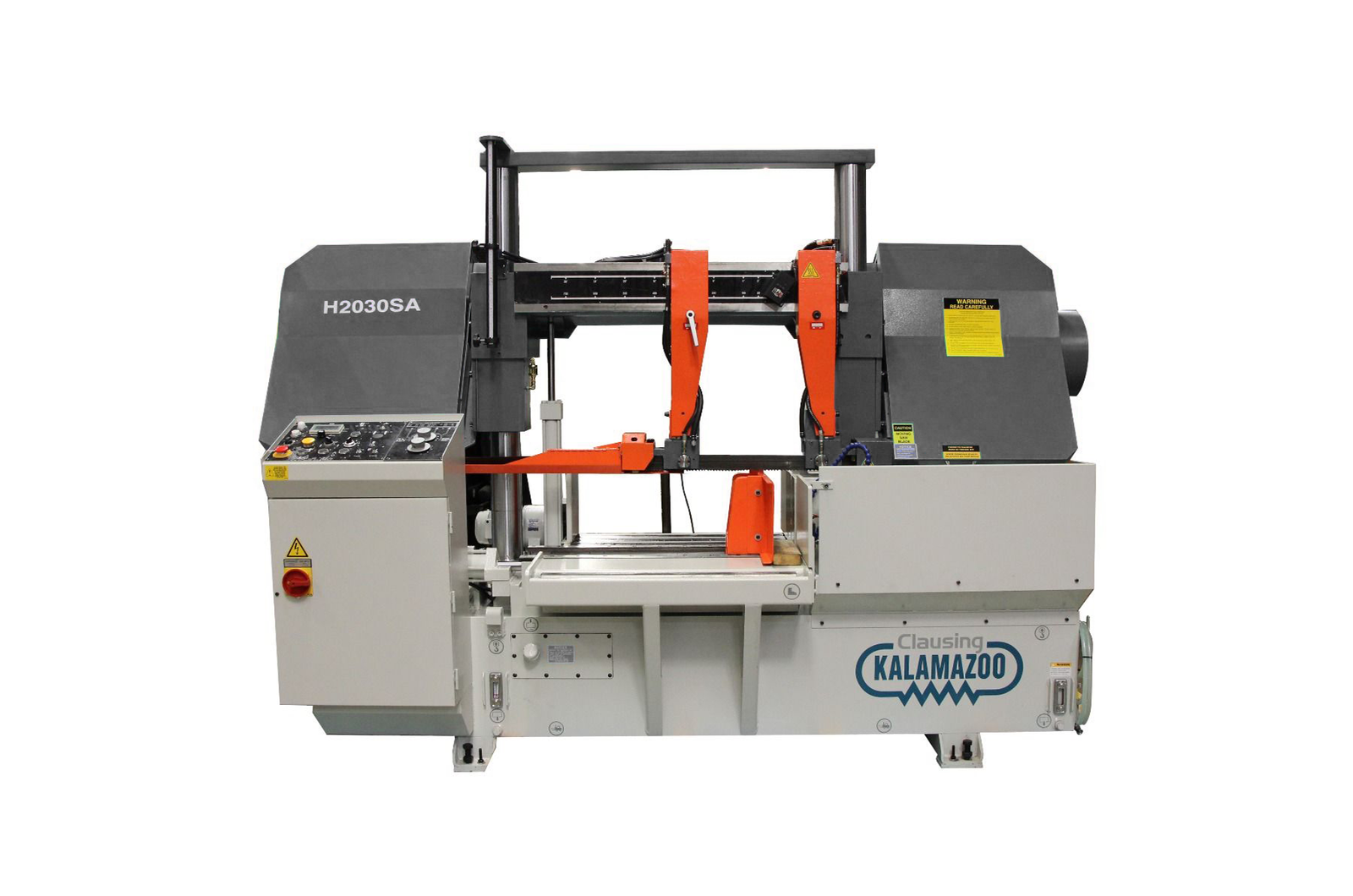

Clausing Kalamazoo 230V Three Phase 20” Double-Column Variable-Speed Semi-Automatic Horizontal Bandsaw H2030SA

Clausing Kalamazoo 230V Three Phase 20” Double-Column Variable-Speed Semi-Automatic Horizontal Bandsaw H2030SA is a Clausing Industrial product in the Band Saws collection.

Product Details

• Blade Speeds (variable): 66 – 328 fpm
• Blade Size: 2” x 0.063” x 238”
• Coolant Capacity: 21.5 gallons
• Bed Height: 27.5”
• Description
• This Double Column Semi-Automatic Horizontal Bandsaw is designed for rugged production use and it offers high production output and heavy-duty performance in semi-automatic operation.
• Double column design ensures rigid support during cutting cycle by keeping the blade parallel and square to the work piece.
• Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
• Features
• Twin column design ensures rigid support during cutting cycle by keeping the blade parallel and square to the work piece
• Infinitely variable speed
• Digital blade speed indicator
• Carbide blade guides with roller bearings
• Two additional guides to support the blade from the top
• Automatic hydraulic blade tensioning
• Power driven blade brushes
• Integral coolant system
• Last cut selector switch
• LCD digital blade speed monitor
• Precision feed pressure & feed rate
• Cast iron vises with replaceable hardened wear plates
• Discharge table with built-in coolant return
• Blade slippage or breakage detection
• Additional flushing hose
• Bi-metal saw blade
• Built in work light
• Toolbox, leveling pads, and an additional wire brush
• Operation and parts manual
• Specifications
• Machine Style: Semi-Automatic
• Drive Type: Infinitely Variable Speed
• Hydraulic Pump Motor: 2HP
• Hydraulic Oil Capacity: 10 gallons
• Blade Tension: hydraulic
• Coolant: recirculating
• Electrical Requirements: 230V Three Phase 7.5HP
• Machine Dims: 123” x 42” x 82”
• Approx Weight: 5,016 lbs
• Cutting Capacities @ 90°
• Round: 20”
• Square: 20”
• Rectangular: 20” x 29.5”
• Optional Add-Ons
• Other voltages available (please contact a sales rep for more info)
• HD Roll Tables, Various Sizes
• Vise Pressure Regulator Single Vise (VP20SA)
• Chip Conveyor (CM2001H)
• Hydraulic Bundle Clamp (CM2002H)
• SAWZIT 1 Gallon (CSR1)
• SAWZIT 5 Gallon (CSR5)

Specifications

• Manufacturer: Clausing Industrial
• SKU: H2030SA
• Shipping Method: Flatbed
• Weight: 5,720 lb
• Dimensions: 128 × 48 × 90 in
